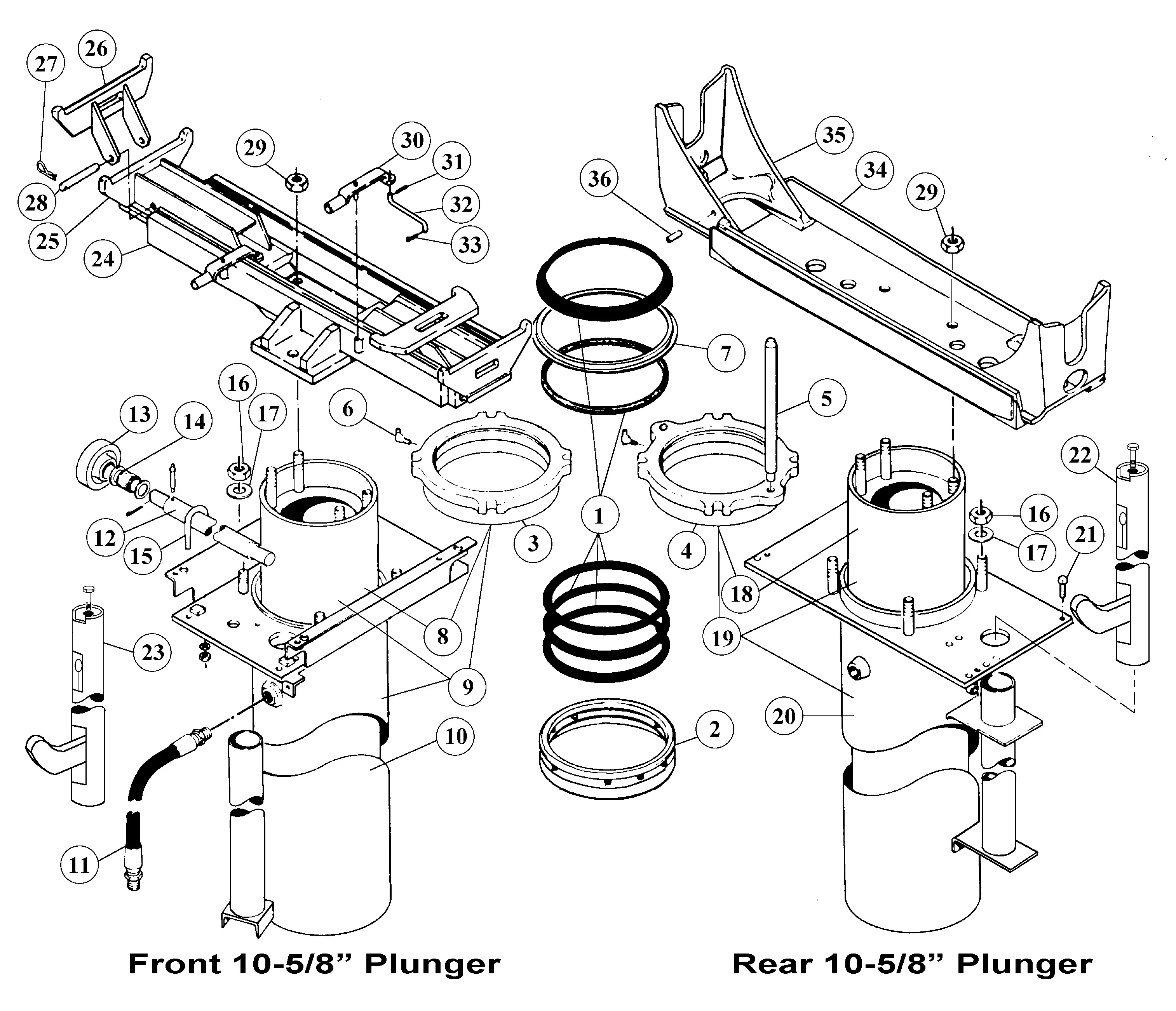

Parts for Weaver EC-105 Series

In Ground Front and Rear / Fore and Aft Lifts – Weaver – EC-105

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-1776
KL-160
2
Hoist Packing Kit
View
1
BH-1776S
KL-160
2
Leak Sealer Packing Kit
View
2
BH-9651
AS-11311
2
Packing Follower
View
3
BH-9667-24ATF
M-1402
1
Gland - Front
View
4
BH-9667-29ATF
M-1386
1
Gland - Rear
View
5
BH-9667-30
S-26665
2
Support Rod
View
6
BH-9667-25
S-13121
2
Grease Fitting
View
7
BH-9667-28
S-6453
2
Wiper Retainer Ring
View
8
BH-9667-23
KL-181
1
Plunger, Gland - Front
View
9
BH-9667-22F
1086919
1
Front Cylinder Assembly
View
10
BH-9667-32F
1080840
1
Casing - Front
View
11
BH-9816
S-13876
1
Hydraulic Hose 1"
View
12
BH-9665-37
AS-6386
2
Axle Assembly - Self Lube
View
12
BH-9665-37N
AS-6386
2
Needle Bearing Axle Assembly
View
13
BH-9665-37W
M-1401
4
Axle Wheel
View
14
BH-9665-37B
S-16425
4
Axle Bearing
View
14
BH-9665-37C
Complete Axle Kit (1 Lift)
View
15
BH-9665-41
S-11320
4
U Bolt for Axle Assembly
View
16
F-HN-0750-10
S-2350
4
Hex Nut 3/4-10
View
17
F-FW-0750-SAE
S-6037
4
Washer 53/64 ID
View
18
BH-9667-33
KL-182
1
Plunger, Gland - Rear
View
19
BH-9667-22
AS-26345
1
Cylinder Assembly - Rear
View
20
BH-9667-32
AS-26342
1
Casing Only - Rear
View
21
BH-9667-31
S-1706
2
Set Screw
View
22
BH-WE-802
1080802
1
Rear Safety Leg (1089344)
View
23
BH-WE-803
1080803
1
Front Safetyl Leg (1089341)
View
24
BH-9667-09
1080846
1
Front Saddle
View
25
BH-9667-10
1084777
2
Standard Adapter
View
26
BH-9667-11
1084758
2
Flip Up Adapter Ext.
View
27
BH-9667-13
1084762
2
Hair Pin Cotter
View
28
BH-9667-12
1084761
2
Pin
View
29
F-HN-0750-10
S-2350
2
Hex Nut - 3/4-10
View
30-33
BH-9667-14
AS-16625
2
Lever Link Assembly
View
30
BH-9667-15
AS-17614
1
Lever
View
31
BH-9667-16
S-18894
1
Link
View
32
F-RP-125-0875
S-14089
1
Roll Pin
View
33
F-CP-125-0750
S-275
1
Cotter Pin
View
34-35
BH-9667-19
1080827
1
Rear Saddle Assembly (B Models)
View
34
BH-9667-21
1080826
1
Rear Saddle (B Models) 39"
View
35
BH-9667-20
M-2318
2
Adapter
View
36
F-RP-375-1500
S-18835
2
Roll Pin 3/8 x 1-1/2
View

PLEASE NOTE: Guide Tube for Safety Legs are Welded to Outer Casings
