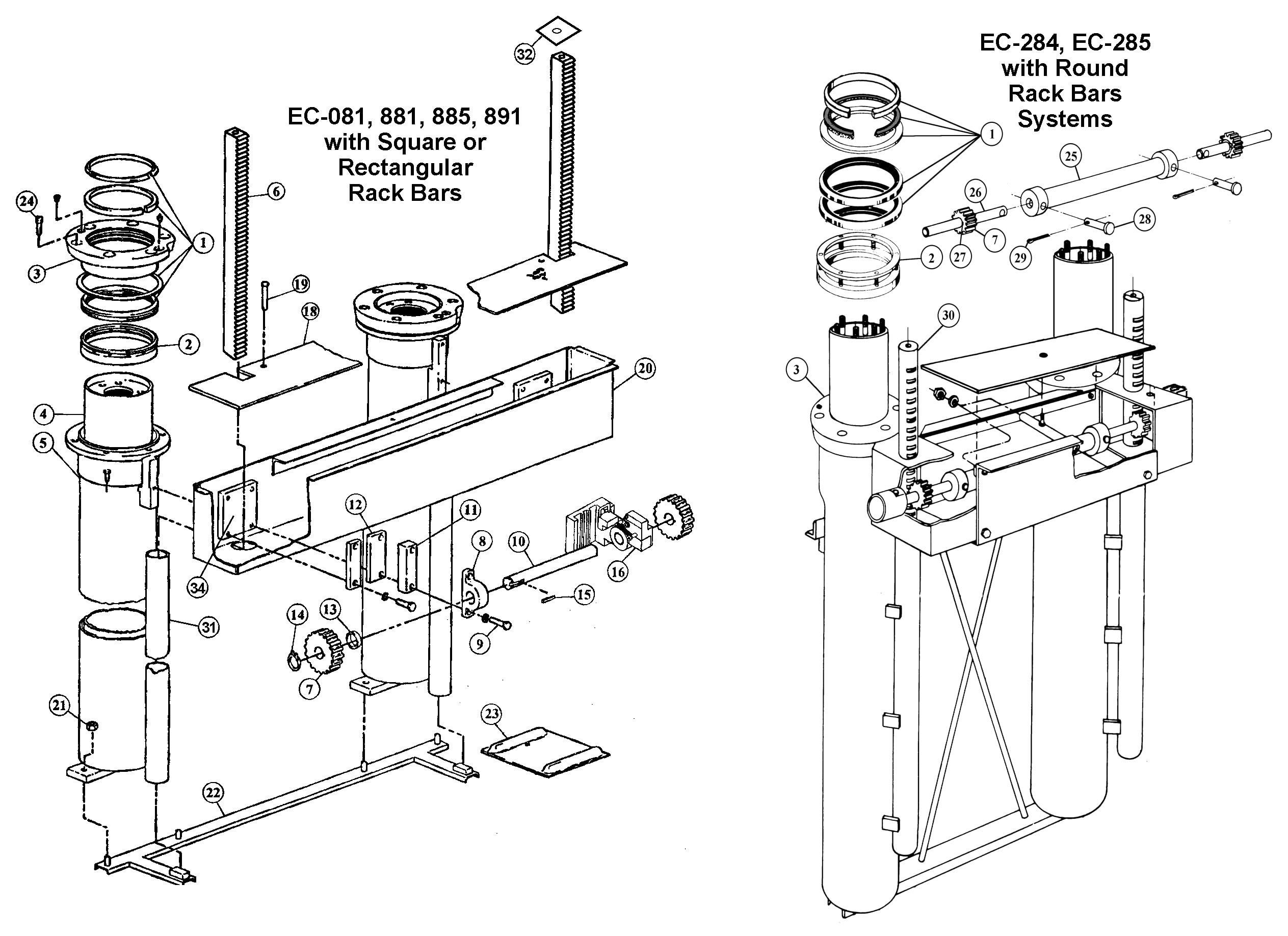

Parts for Weaver EC-081

In Ground Side by Side Lifts – Weaver – EC-081

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
KL-162
2
Hoist Packing Kit

1
KL-162
2
Leak Sealer Packing Kit

1
for Challenger
Hoist Packing Kit (uses white wiper)

1
for Challenger
Lack Sealer Packing Kit

2
A-1325
2
Packing Follower

2
A-1325S
Spring for Packing Follower

3
M-2100x
2
Adjust-to-Fit Upper Bearing Kit

3
M-2100
2
Upper Bearing

3
Challenger gland with White Wiper

4
KL-176
2
Plunger and Gland Kit

4
BH-9614-80
KL-304
2
Plunger/Gland EC-891

5
1080670
2
Casing (not for EC-891)

6
S-23134
2
Rectangular Rack Bar 1-1/4" x 1-3/4"

6
1080236
2
Square Rack Bar 1-7/8" x 1-7/8"

7
S-24522
2
Pinion Gear

8
AS-27522
1*
Pillow Block

9
S-27527
4
Capscrew-Square Racks

9
1086909
4
Capscrew-Rectangular Racks

10
S-24187
1
Shaft for 57-1/2 Centers

10
1086487
1
Shaft for 89" Centers

10
S-24202
1
Shaft for 40" Centers

11
S-2407
2
Spacer 1-7/8 x 1-7/8 x 5

12
S-2406
2
Spacer 1-7/8 x 5/8 x 5

13
S-23515
2
Round Spacer

14
S-18912
2
1-1/4" Retaining Ring

15
S-189112
2
Key 1/4" x 1"

16
KL-345
1
Lift Lock Assembly (Sq.)

16
KL-345K
Lift Lock Rebuild Kit (Sq.)

16**
KL-345R
1
Lift Lock for Rect. Racks

16
Brass Bushing

18
1085383
1
Cover Plate for EC881

19
S-722
1
Capscrew 1/2-13 x 2"

20
1085378
1
Trench Box

20
1086493
1
Trench Box for EC-891

21
F-HN-0500
S-508
4
Hex Nut 1/2"

22
1085384
1
Channel for EC881

23
S-23343
1
Wheel Spotting Dish - Single

23
Wheel Spotting Dish - Dual

24
S-18866
12
Socket Head Screw

25
AS-18806
1
Equalizer Coupler Shaft

26
S-18910
2
1-1/4" Equalizer Shaft

27
2
Woodruff Key

28
S-18810
2
Clevis Pin

29
S-627
2
Cotter Pin

30
S-18807
2
Round Rack Bar

30
S-18883
2
Bronze Bushings for Ends

31
Sleeve for Square Rack Bar

32
1085393
Latch Trip for Top for Rack

33
1086898
Spacer Block at Top

34
1085380
2
Plate

8-15
BH-9614 - C Series
Square
1
Eq. Assy. for 57-1/2" Piston Ctrs.

6-15
Square
1
Complete Eq. w/ Racks/Gears

6-16
Square
1
Cplt. Locking Eq. w/ Racks/Gears

8-15
BH-9615 - B Series
Rectangle
1
Eq. Assy. for Rect. Rack Bar Systems

6-15
BH-9615-C - B Series
Rectangle
1
Complete Eq. w/ Racks/ Gears

6-16
Rectangle
1
Cplt. Locking Eq. w/ Racks/Gears

8-15
BH-9616 (28401/28501)
Rectangle
1
Equalizer Assy. for 40" Piston Ctrs.

6-15
Rectangle
1
Cplt. Eq. w/ Racks/Gears

6-16
Rectangle
1
Cplt. Locking Eq. w/ Racks/Gears

8-15
BH-9617 (EC-891)
Square
1
Equalizer Assy. for 89" Piston Ctrs.

6-15
Square
1
Complete Eq. w/ Racks/Gears

6-16
Square
1
Cplt.Locking Eq. w/ Racks/Gears

25-29***
BH-9618 (EC-284/EC-285)
Round
1
Eq.Assy. for 40" Round Rack Sys.

25-30***
Round
1
Cplt. Eq. Assy. w/ Racks/Gears

* If no lift lock is used, (2) BH-9614-02 Pillow Blocks are required

** Only for 10" depth trench box

***No Locks available for BH-9618 or BH-9618C

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
