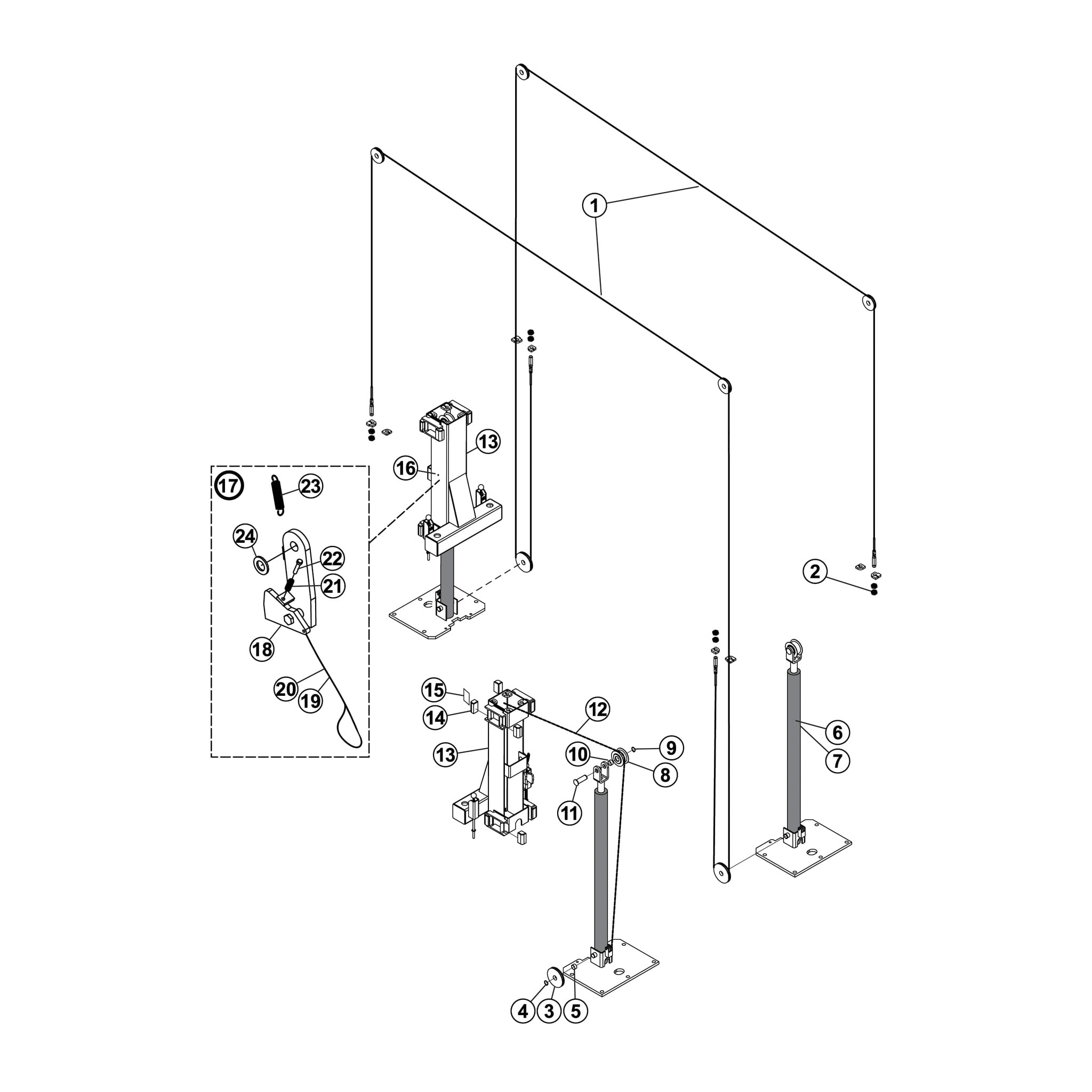

Parts for Tuxedo Lift TP9KAC Carriage Lock, Cables and Chain Detail

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP9KAC

Direct Fit™ brand Repair parts for Tuxedo Lift Model TP9KAC are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Tuxedo Model TP9KAC is an Asymmetric 9,000 lb. capacity Two Post Lift
Overall Width 134” / Overall Height 142”

Tuxedo Lifts are often private-labeled with other names / companies including: iDEAL, Kernel, Auto Lift, JMC Equipment (JMC9KAC-TUX), Universalift, and others.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP9KAC:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
TP9-1041
2
Equalizer Cable 33' 9"

2
TP9-1070
4
Cable Nut

3
TP9-1025
2
Cable Sheave

4
TP9-1004
2
Spindle Lock Washer

5
TP9-1050
2
Sheave Spacer

6
TP9-1024
2
Hydraulic Cylinder

7
TP9-1057T
2
Seal Kit for TP9KAC

7
TP9-1057F
2
Seal Kit for TP9KAC

8
TP9-1022
2
Chain Roller

9
TP9-1021
2
Sheave / Pulley Pin "C" clip

10
TP9-1086
2
Bushing for BH-7486-24 Roller

11
TP9-1020
2
Sheave / Pulley Pin

12
TP9-1023
2
Chain (See SVI Chain Book)

13
TP9-1009
2
Carriage

14
TP9-1010
16
Slider Block

15
TP9-1059
Shim for Carriage Slider

16
TP9-1101
2
Cotter Pin

17
TP9-1068
2
Carriage Lock Assembly

18
TP9-1019
2
Carriage Lock

19
TP9-1016
2
Lock Release Cable Assembly

20
TP9-1087
2
Lock Release Cable Cover

21
TP9-1062
2
Spring

22
TP9-1061
2
Carriage Lock Set Screw

23
TP9-1017
2
Lock Release Spring

24
TP9-1085
2
Flat Washer

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
BH-7486-14 ref TP9-1068 Carriage Lock Assembly for Tuxedo Lift 2 Post Auto Lift 9000 lb
BH-7486-14

Carriage Lock Assembly
