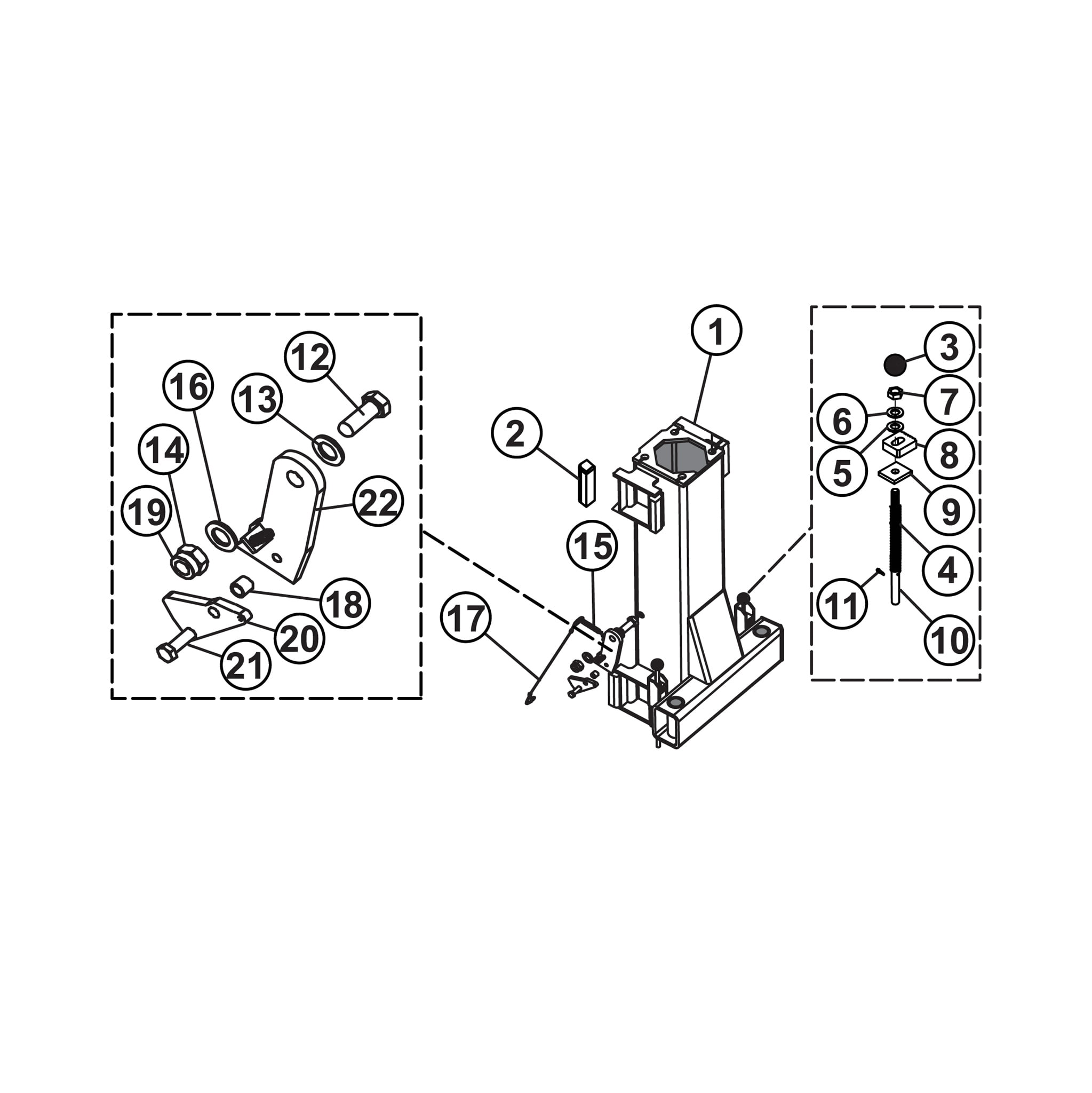

Parts for Tuxedo Lift TP12KF Carriage and Arm Restraint Detail

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP12KF

Direct Fit™ brand Repair parts for Tuxedo Lift Model TP12KF are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Tuxedo Model TP12KF is a Symmetric 12,000 lb. capacity Two Post Floor Plate Lift

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP12KF:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
TP12KF-028
2
Carriage

2
TP12KF-018
8
Slider Block

3
TP12KF-031, TP15KC-K-8047
4
Plastic Ball Handle

4
2
Arm Restraint Spring

5
TP12KF-032, TP15KC-K-8049
4
Flat Washer

6
TP12KF-033, TP15KCX-051
4
Spring Washer

7
TP12KF-034, TP15KC-K-8048
4
Nut

8
TP12KF-024, TP15KC-K-8004
4
Arm Restraint Engage Gear

9
8
Arm Restraint Plate

10
TP12KF-029
4
Arm Restraint Plunger

11
TP12KF-030
4
Pin

12
TP12KF-044
2
Bolt

13
TP12KF-042
8
Bushing

14
TP12KF-043
2
Self-Lock Nut

15
TP12KF-041
2
Pullback Spring

16
TP12KF-047
4
Bushing

17
TP12KF-039
2
Pull Rope

18
TP12KF-040
4
Bushing

19
TP12KF-038
2
Cover

20
TP12KF-036
2
Latch Release Pivot

21
TP12KF-037
2
Bolt

22
TP12KF-035
2
Safety Latch Weldment

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
