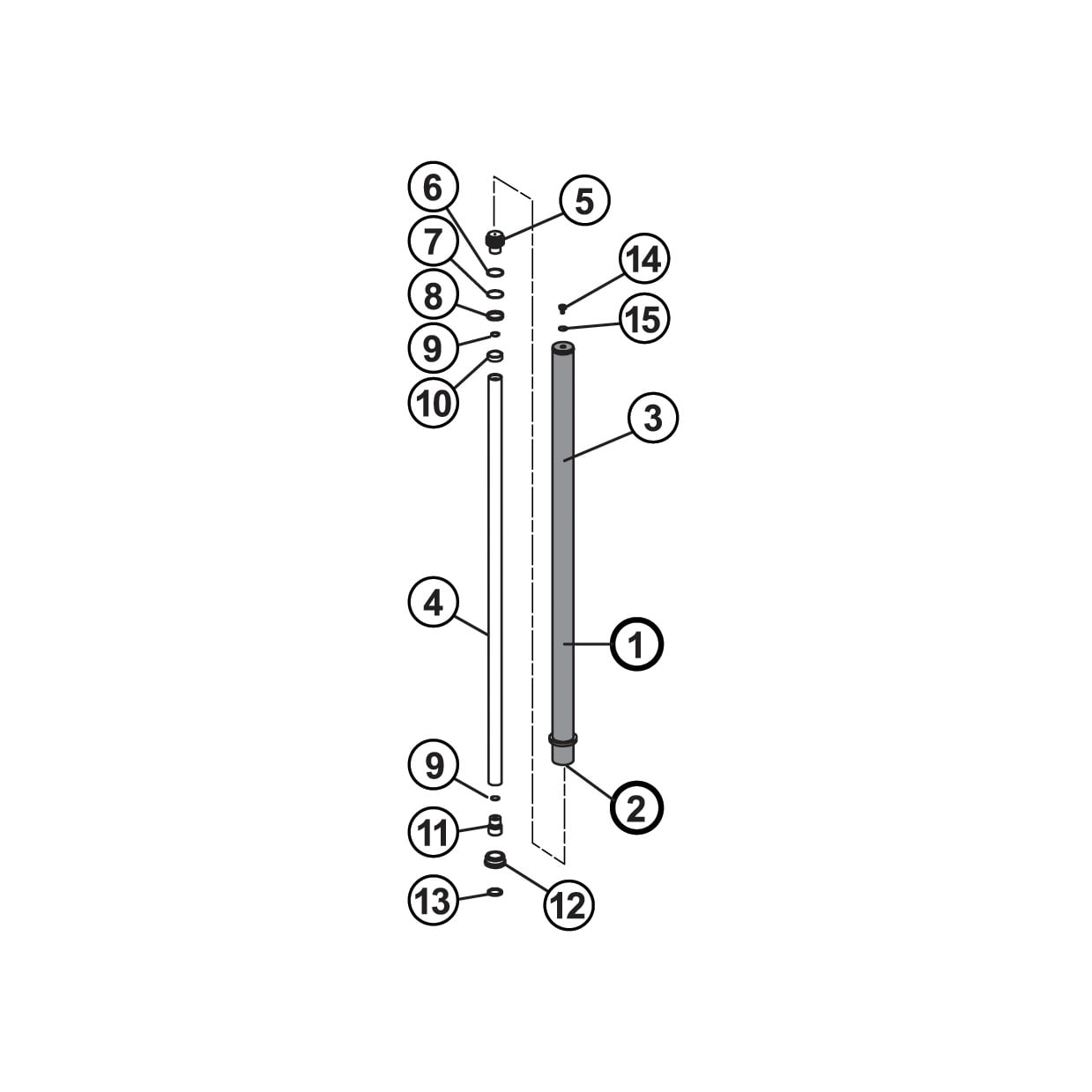

Parts for Tuxedo Lift TP12KC-DX Cylinder

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP12KC-DX

Direct Fit™ brand Repair parts for Tuxedo Lift Model TP12KC-DX are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP12KC-DX:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
TP12KC-D-026
2
Hydraulic Cylinder

2
TP12KC-D-026x
2
Seal Kit for Hydraulic Cylinder

3
TP12KC-D-026.1
2
Cylinder Body

4
TP12KC-D-026.6
2
Piston Rod

5
TP12KC-D-026.11
2
Piston

6
TP12KC-D-026.10
2
Seal Ring

7
TP12KC-D-026.9
2
O-Ring

8
TP12KC-D-026.8
2
Guide Ring

9
TP12KC-D-026.5
4
O-Ring

10
TP12KC-D-026.7
2
Limit Ring

11
TP12KC-D-026.4
2
Cylinder Head

12
TP12KC-D-026.3
2
Guiding Ring

13
TP12KC-D-026.2
2
Dust Ring

14
TP12KC-D-026.12
2
Screw

15
TP12KC-D-026.13
2
Copper Washer

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
