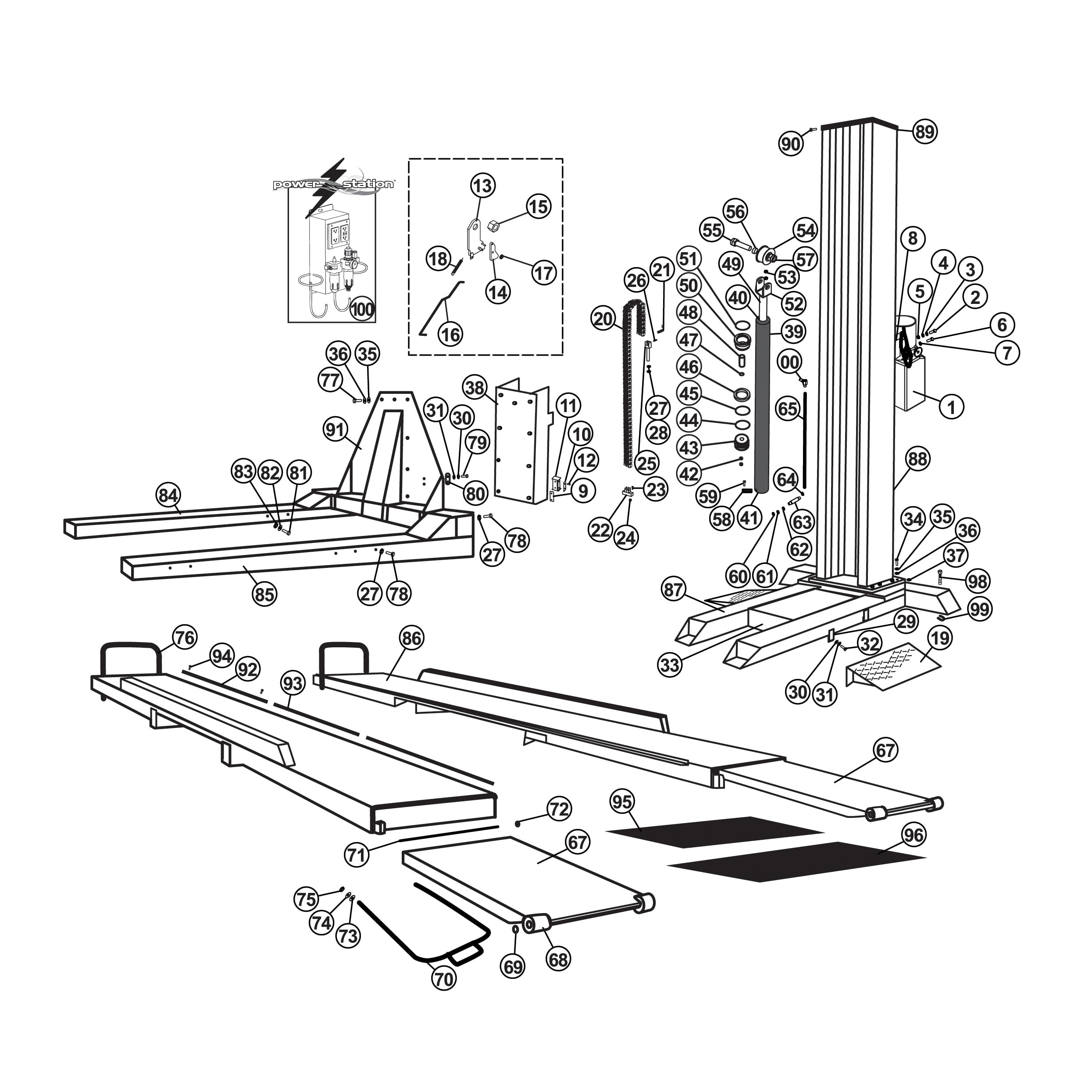

Parts for Tuxedo Lift SP-6K-SS

Above Ground / Surface Mount 1-Post Lifts – Tuxedo – SP-6K-SS

Direct Fit™ brand Repair parts for Tuxedo Lift Model SP-6K-SS are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need chain, chain rollers, slider blocks, hydraulic cylinders, seal kits, power units, hydraulic hoses, carriage locks and components, or another part for your 1-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7007-03
PU-110V-L-K
1
110V Power Unit

2
SP-6K-SS-069
4
Bolt, M8 x 25mm

3
SP-6K-SS-064
8
Flat Washer, D8

4
SP-6K-SS-063
8
Spring Washer, D8

5
SP-6K-SS-062
4
Nut, M8

6
SP-6K-SS-067
4
Bolt, M8 x 20mm

7
SP-6K-SS-066
4
Large Flat Washer, D8

8
SP-6K-SS-065
1
Motor Mount Bracket

9
SP-6K-SS-035
4
Top, Nylon Block

10
SP-6K-SS-036
8
Side, Nylon Block

11
SP-6K-SS-037
4
Frame for Slider Block

12
SP-6K-SS-072
24
Screw, M4 x 10mm

13
SP-6K-SS-033
1
Safety Latch

14
SP-6K-SS-029
1
Latch Cam

15
SP-6K-SS-027
1
Lock Nut, M30 x 1.5mm

16
SP-6K-SS-031
1
Release Cable

17
SP-6K-SS-030
1
Lock Nut, M10

18
SP-6K-SS-034
1
Spring

19
SP-6K-SS-051
2
Ramp on Base

20
SP-6K-SS-014
1
Chain (See SVI Chain Book)

21
SP-6K-SS-015
2
Chain Pin

22
SP-6K-SS-018
1
Chain Block (Lower)

23
SP-6K-SS-016
2
Bolt, M16 x 60mm

24
SP-6K-SS-061
2
Lock Nut, M16

25
SP-6K-SS-021
1
Chain Block (upper)

26
SP-6K-SS-022
4
Split Pin

27
SP-6K-SS-020
12
Nut, M20

28
SP-6K-SS-060
1
Lock Nut, M20

29
SP-6K-SS-050
6
Hook

30
SP-6K-SS-040
14
Spring Washer, D6

31
SP-6K-SS-041
18
Flat Washer, D6

32
SP-6K-SS-009
12
Screw, M6 x 25mm

33
SP-6K-SS-038
1
Middle Ramp Spacer

34
SP-6K-SS-003
10
Bolt, M16x x50mm

35
SP-6K-SS-003.1
10
Flat Washer, D20

36
SP-6K-SS-017
21
Spring Washer, D16

37
SP-6K-SS-059
10
Shim

38
SP-6K-SS-026
1
Carriage

39
SP-6K-SS-013
1
Hydraulic Cylinder

40
SP-6K-SS-013x
1
Seal Kit for Hydraulic Cylinder

41
SP-6K-SS-013.18
1
Cylinder Body

42
SP-6K-SS-013.13
2
Nut

43
SP-6K-SS-013.12
1
Piston

44
SP-6K-SS-013.11
1
U-Ring

45
SP-6K-SS-013.10
1
O-Ring

46
SP-6K-SS-013.9
1
Guide Belt

47
SP-6K-SS-013.8
1
O-Ring

48
SP-6K-SS-013.7
1
Sheave

49
SP-6K-SS-013.6
1
Piston Bar

50
SP-6K-SS-013.5
1
Guide Ring

51
SP-6K-SS-013.4
1
Dust Ring

52
SP-6K-SS-013.3
1
Roller Seat

53
SP-6K-SS-013.2
2
Round Nut

54
SP-6K-SS-013.20
1
Roller

55
SP-6K-SS-013.19
1
Roller Pin

56
SP-6K-SS-013.21
1
Spring Washer

57
SP-6K-SS-013.1
1
Thin Nut

58
SP-6K-SS-070
1
Cylinder Plate

59
SP-6K-SS-071
1
Bolt, M8 x 30mm

60
SP-6K-SS-013.17
1
Combined Seal, D16

61
SP-6K-SS-013.16
1
Retaining Ring, D10

62
SP-6K-SS-013.15
1
Throttle Washer

63
SP-6K-SS-013.14
1
Straight Connector

64
SP-6K-SS-013.22
1
O-Ring

65
SP-6K-SS-013.23
1
Hydraulic Hose

66
SP-6K-SS-013.24
1
Angle Connector

67
SP-6K-SS-023
2
Ramp for Runway

68
SP-6K-SS-024
4
Nylon Roller

69
SP-6K-SS-025
4
Retaining Ring

70
SP-6K-SS-052
2
Ramp Support Bracket

71
SP-6K-SS-053
2
Ramp Shaft Pin

72
SP-6K-SS-054
4
Retaining Ring, D16

73
SP-6K-SS-055
4
Flat Washer, D10

74
SP-6K-SS-056
4
Spring Washer, D10

75
SP-6K-SS-057
4
Nut, M10

76
SP-6K-SS-011A
2
4” Front Wheel Stop

77
SP-6K-SS-044
9
Bolt, M16 x 40mm

78
SP-6K-SS-007
12
Bolt, M20 x 40mm

79
SP-6K-SS-039
2
Screw, M6 x 15mm

80
SP-6K-SS-042
1
Cable Holder

81
SP-6K-SS-045
8
Screw, M12 x 40mm

82
SP-6K-SS-048
8
Spring Washer

83
SP-6K-SS-047
8
Flat Washer, D12

84
SP-6K-SS-049
1
Left Arm

85
SP-6K-SS-046
1
Right Arm

86
SP-6K-SS-012
2
Runway Platform

87
SP-6K-SS-001
1
Base Plate

88
SP-6K-SS-004
1
Column

89
SP-6K-SS-006
1
Top Plate

90
SP-6K-SS-005
4
Screw, M6x x30mm

91
SP-6K-SS-043
1
Lifting Frame

92*
SP-6K-SS-008A.1
4
End Tray for Drip Tray (optional)

93*
SP-6K-SS-008A.2
2
Middle Rail for Drip Tray (optional)

94*
SP-6K-SS-073
12
Self-Tap Screw, #12 x 3/4”

95*
FP9KDX-DT
Drip Tray 39" Wide (for Narrow Position Runways)

96*
FP8K-DS/DX-XLT-DT
Drip Tray 42" Wide (for Wide Position Runways)

97
SP-6K-SS-010
Screw, M6 x 15mm (not shown)

98
SP-6K-SS-002
Anchor Bolt, 3/4” X 5-1/2”

99
Shim Assortment 150 Pieces; 3 Sizes

100
Power Station Air/Electric Utility Box

*Optional—Only needed if Drip Trays are installed.
