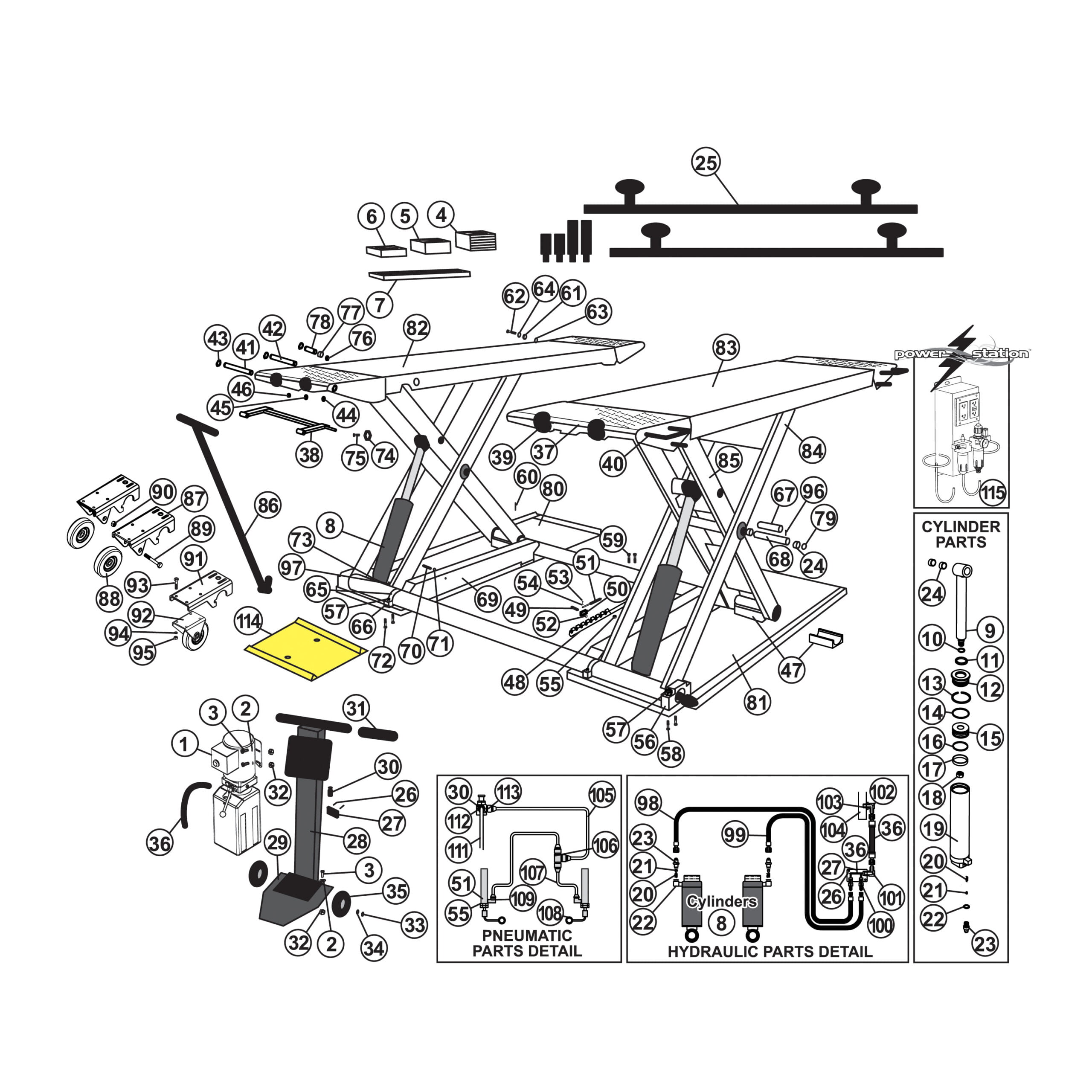

Parts for Tuxedo Lift MR6.5K-38

Above Ground / Surface Mount Mid Rise Lifts – Tuxedo – MR6.5K-38

Direct Fit™ brand Repair parts for Tuxedo Lifts Model MR6.5K-38 are available from SVI.

SVI is the #1 Source for repair parts for Tuxedo Lifts. Whether you need lock release parts, hydraulic hoses, hydraulic cylinders, seal kits, power units, height extensions and pads, rubber blocks, wheel spotters, safety lock bars or another part for your surface-mount Mid Rise or Low Rise Tuxedo Lift, SVI has what you need. We offer excellent pricing, top-notch customer service and fast shipping with in-stock items that usually ship out same day.

6,500 Lb Capacity Mid-Rise Lift Model Tuxedo MR6.5K-38 is similar to the Tuxedo MR6K-38, but it has an increased capacity of 6,500 lbs. Parts vary. Specify lift model when ordering.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
MR6.5K-38-105
1
115VAC Power Unit (MR6K-38)

2
MR6.5K-38-101
8
Flat Washer

3
MR6.5K-38-102
8
Nut

4
MR6.5K-38-075.1
4
Rubber Adapter Block 6" Thick

5
4
Rubber Adapter Block 3" Thick

6
4
Rubber Adapter Block 1-1/2" Thick

7
MR6.5K-38-075
4
Rubber Pad - Long

8
MR6.5K-38-032.1
2
Cylinder

9
MR6.5K-38-032.6
2
Piston Rod

10
MR6.5K-38-032.7
2
O-Ring

11
MR6.5K-38-032.8
2
Dust Ring

12
MR6.5K-38-032.9
2
Guide Ring

13
MR6.5K-38-032.10
2
Steel Ring

14
MR6.5K-38-032.11
2
O-Ring

15
MR6.5K-38-032.12
2
Piston

16
MR6.5K-38-032.13
2
Piston Seal

17
MR6.5K-38-032.14
2
Guide Belt

18
MR6.5K-38-032.15
2
Nut, M20

19
MR6.5K-38-032.5A
2
Cylinder Body

20
MR6.5K-38-032.4
2
Spring

21
MR6.5K-38-032.3
2
Throttle Washer

22
MR6.5K-38-032.2
2
Copper Washer

23
MR6.5K-38-032.20
2
Fitting Connector

24
MR6.5K-38-138
12
Bearing, D30 x 2 x 30

25
MR6K-38-SUV
1
SUV Adapter Set

26
MR6.5K-38-092
2
Socket Screw, M5 x 35mm

27
MR6.5K-38-091
1
Hyd. T-Block

28
MR6.5K-38-103
1
Post Assembly for PU Dolly

29
MR6.5K-38-100
1
Base Assembly for PU Dolly

30
MR6.5K-38-079
1
Air Valve

31
MR6.5K-38-104
2
Handle Sleeve

32
MR6.5K-38-096
8
Lock Nut M8

33
MR6.5K-38-097
2
Wheel Axle Cover

34
MR6.5K-38-098
2
Flat Washer, D16

35
MR6.5K-38-099
2
Wheel for PU Dolly

36
MR6.5K-38-089
1
Short Hydraulic Hose, PU

37
MR6.5K-38-040
4
Ramp

38
MR6.5K-38-033
4
Ramp Support

39
MR6.5K-38-034
8
Roller

40
MR6.5K-38-053
4
Ramp Handle

41
MR6.5K-38-037
4
Ramp Shaft

42
MR6.5K-38-039
8
Ramp Support Axle

43
MR6.5K-38-038
24
Retaining Ring, D14

44
MR6.5K-38-041
8
Nut, M10

45
MR6.5K-38-042
8
Spring Washer, D10

46
MR6.5K-38-052
8
Flat Washer, D18

47
MR6.5K-38-007
2
Half-Moon Slider

48
MR6.5K-38-004
2
Lock Bar

49
MR6.5K-38-024
2
Latch Pin

50
MR6.5K-38-025
2
Lock Latch

51
MR6.5K-38-020
2
Air Cylinder

52
MR6.5K-38-021
2
Retaining Ring, D18

53
MR6.5K-38-022
2
Bolt

54
MR6.5K-38-023
2
Flat Washer

55
MR6.5K-38-001
4
Nut

56
MR6.5K-38-048
2
Front Shaft Block

57
MR6.5K-38-030
8
Nut, M12

58
MR6.5K-38-049
4
Socket Screw, M12 x 85mm

59
MR6.5K-38-019
4
Socket Screw

60
MR6.5K-38-009
4
Roll Pin

61
MR6.5K-38-017
4
Roller

62
MR6.5K-38-018
4
Roller Screw

63
MR6.5K-38-016
4
Nut

64
MR6.5K-38-140
4
Bearing, D20 x 1.5 x 15

65
MR6.5K-38-029
2
Shaft Seat Cover

66
MR6.5K-38-028
2
Shaft Seat

67
MR6.5K-38-026
2
Center Shaft Sleeve

68
MR6.5K-38-010
2
Center Shaft

69
MR6.5K-38-027
2
Latch Cover

70
MR6.5K-38-027.1
4
Screw, M5 x 10mm

71
MR6.5K-38-027.2
4
Flat Washer, D5

72
MR6.5K-38-049.1
4
Socket Screw, M12 x 65mm

73
MR6.5K-38-015
2
Cylinder Pin

74
MR6.5K-38-013
2
Position Plate

75
MR6.5K-38-014
4
Socket Screw, M5 x 10mm

76
MR6.5K-38-045
8
Retaining Ring, D20

77
MR6.5K-38-139
4
Bearing, D20 x 1.5 x 20

78
MR6.5K-38-046
4
Upper Pin

79
MR6.5K-38-011
4
Flat Washer

80
MR6.5K-38-050A
1
Underframe Assy. (LH)

81
MR6.5K-38-050.1A
1
Underframe Assy. (RH)

82
MR6.5K-38-141.1
1
Platform Assy. (LH)

83
MR6.5K-38-142.1
1
Platform Assy. (RH)

84
MR6.5K-38-047.1
1
Outer Scissor Frame

85
MR6.5K-38-008A
1
Inner Scissor Frame

86
MR6.5K-38-074
1
Pull Bar

87
MR6.5K-38-068
2
Wheel Plate-1

88
MR6.5K-38-072
2
Fixed Caster Wheel

89
MR6.5K-38-066
3
Bolt, M8 x 65mm

90
MR6.5K-38-071
2
Nut, M8

91
MR6.5K-38-068.1
1
Wheel Plate-2

92
MR6.5K-38-070
1
Swivel Caster Wheel

93
MR6.5K-38-069
4
Socket Screw, M8 x 20mm

94
MR6.5K-38-067
12
Flat Washer, D8

95
MR6.5K-38-073
4
Self-Lock Nut, M8

96
MR6.5K-38-012
4
Roll Pin, D6 x 40mm

97
MR6.5K-38-031
2
Self-Lock Nut, M8

98
MR6.5K-38-145
1
Long Hyd. Hose

99
MR6.5K-38-144
1
Medium Hyd. Hose

100
MR6.5K-38-143
2
Straight Hyd. Fitting (T-Block)

101
MR6.5K-38-090
1
90 Fitting Connector (T-Block)

102
MR6.5K-38-088
1
90 Fitting Connector (V- Block)

103
MR6.5K-38-087
1
O-Ring, D11.8 x D1.8

104
MR6.5K-38-086
1
Hyd. Valve Block

105
MR6.5K-38-080
1
Air Hose 3

106
MR6.5K-38-081
1
Air T-Fitting

107
MR6.5K-38-082
1
Air Hose 4

108
MR6.5K-38-084
2
Steel Cable

109
MR6.5K-38-076
2
90 Quick Air Fitting

110
MR6.5K-38-077
1
Air Hose 1

111
MR6.5K-38-078
1
Air Hose 2

112
MR6.5K-38-078.1
1
Straight Quick Air Fitting-3

113
MR6.5K-38-078.2
1
Straight Quick Air Fitting-2

114
1
Single Wheel Spotter Dish 10-3/4" x 15" Wide

115
1
Power Station Air/Electric Utility Box
