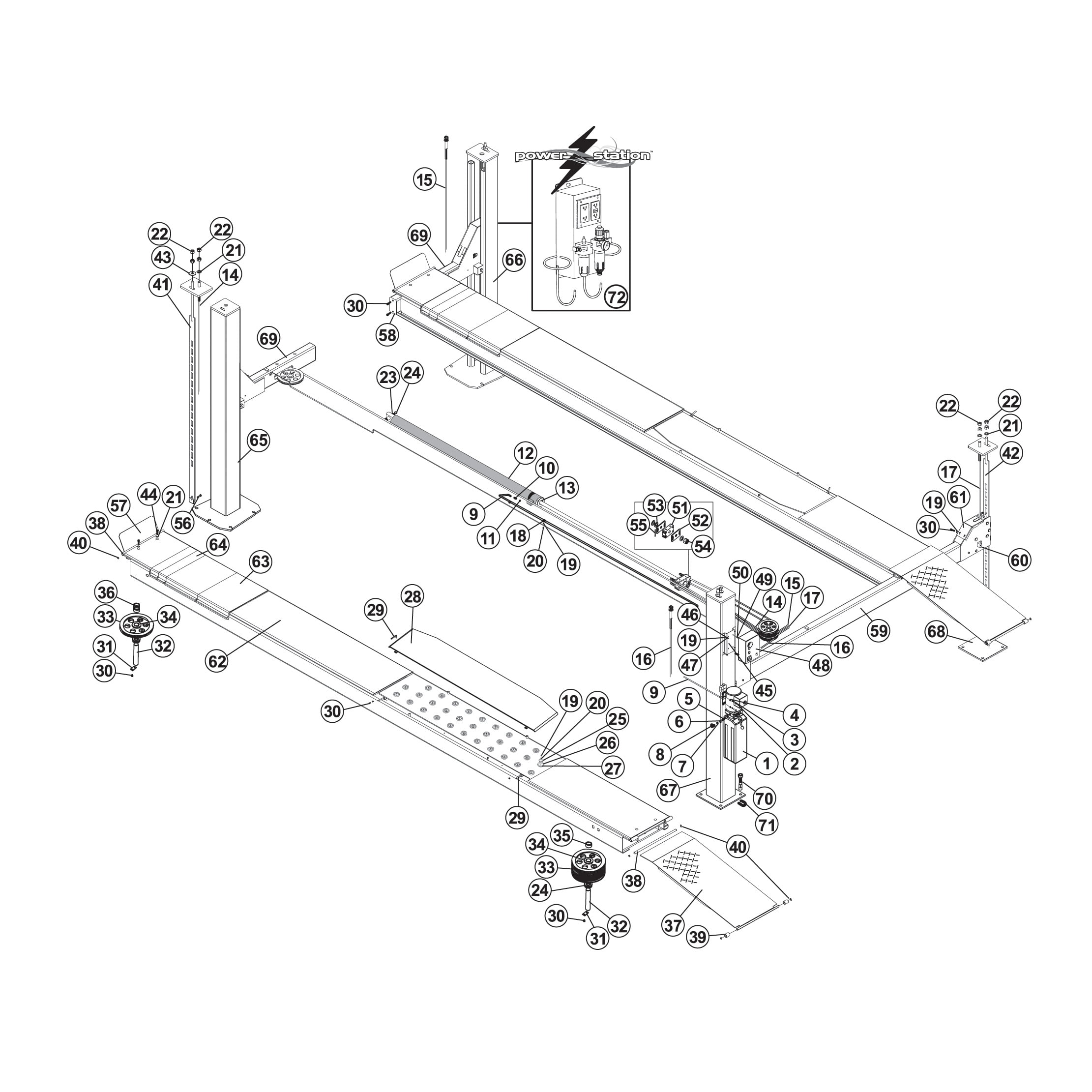

Parts for Tuxedo Lift FP14KO-A

Above Ground / Surface Mount 4-Post Lifts – Tuxedo – FP14KO-A

Direct Fit™ brand Repair parts for Tuxedo Lift Model FP14KO-A are available from SVI

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need cables, chain, chain rollers, pins, alignment plates, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, air / electric utility box, lift installation supplies, or another part for your 4-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Tuxedo Lift Model FP14KO-A is a 14,000 lb. capacity four-post open front alignment lift, cable driven. Repair parts are available.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo FP14KO-A:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
FP14KO-A-016
1
Hydraulic Pump, 1 Ph, 220V

2
FP14KO-A-017
4
Hex Bolt

3
FP14KO-A-018
4
Spring Washer

4
FP14KO-A-019
12
Flat Washer

5
FP14KO-A-101
1
Hydraulic Pump Fitting

6
FP14KO-A-100
2
Washer

7
FP14KO-A-099
2
Nut

8
FP14KO-A-098
1
Elbow Fitting

9
FP14KO-A-097
1
Hydraulic Hose

10
FP14KO-A-102
1
Hydraulic Cylinder Fitting

11
FP14KO-A-103
1
Sealing Ring, D14

12
FP14KO-A-052
1
Hydraulic Cylinder

13
FP14KO-A-052x
Hydraulic Cylinder Seal Kit

14
FP14KO-A-093
1
Steel Cable C, Left Front LF 34' 5"

15
FP14KO-A-094
1
Steel Cable D, Right Front RF 39' 1"

16
FP14KO-A-096
1
Steel Cable A, Left Rear LR 14' 8"

17
FP14KO-A-095
1
Steel Cable B, Right Rear RR 19' 4-1/2"

18
FP14KO-A-038
3
Hose Clip

19
FP14KO-A-022
84
Flat Washer

20
FP14KO-A-034
65
Inner Hex Bolt

21
FP14KO-A-006
14
Flat Washer, steel

22
FP14KO-A-012
14
Hex Nut

23
FP14KO-A-046
1
Cylinder Pin

24
FP14KO-A-045
1
Retaining Ring

25
FP14KO-A-035
62
Inner Washer

26
FP14KO-A-036
992
Steel Ball

27
FP14KO-A-037
62
Spring Pad

28
FP14KO-A-031
2
Cover

29
FP14KO-A-032
4
Raw Pin

30
FP14KO-A-033
36
Screw M6x10

31
FP14KO-A-043
8
Locking Plate

32
FP14KO-A-042
3
Spindle II / 2

33
FP14KO-A-040
11
Wheel / Pulley, (2 bushings required)

34
FP14KO-A-041
11
Multiple Bush

35
FP14KO-A-044
1
Cover II / 2, round steel

36
FP14KO-A-039
9
Cover I / 1, Nylon

37
FP14KO-A-001
2
Approach Ramp

38
FP14KO-A-004
5
Spindle I / 1

39
FP14KO-A-002
4
Idler Wheel - Nylon

40
FP14KO-A-003
20
Retaining Ring

41
FP14KO-A-009
2
Lock Ladder I / 1

42
FP14KO-A-014
2
Lock Ladder II / 2

43
FP14KO-A-011
2
Big Washer, steel

44
FP14KO-A-005
8
Inner Hex Bolt

45
FP14KO-A-026
1
Motor Base

46
FP14KO-A-023
4
Spring Washer

47
FP14KO-A-021
4
Hex Bolt

48
FP14KO-A-020
1
Control Box

49
FP14KO-A-024
4
Cross Screw

50
FP14KO-A-025
12
Hex Nut

51
FP14KO-A-050
1
Clip 2

52
FP14KO-A-049
2
Clip 1

53
FP14KO-A-048
3
Flat Washer

54
FP14KO-A-047
1
Hexagon Slotted Nuts

55
FP14KO-A-051
1
Snap Ring

56
FP14KO-A-010
4
Hex Bolt

57
FP14KO-A-027
2
Wheel Stop

58
FP14KO-A-090
2
End Plate

59
FP14KO-A-053
1
Cross Beam I / 1

60
FP14KO-A-075
6
Nylon Slider Block

61
FP14KO-A-076
4
Protective Wheel Cover 1

62
FP14KO-A-030
1ea
Runway 1/2 (1 each)

63
FP14KO-A-029
4
Plate 2

64
FP14KO-A-028
4
Plate 1

65
FP14KO-A-008
1
Column I / 1

66
FP14KO-A-007
1
Column II / 2

67
FP14KO-A-015
1
Column III / 3

68
FP14KO-A-013
1
Column IV / 4

69
FP14KO-A-091
1
Cross Beam Section II / 2

69
FP14KO-A-092
1
Cross Beam Section III / 3

70
16
Wedge Anchor Bolt 3/4" x 5-1/2"

71
1
Plastic Shim Assortment 150 pk (3 sizes)

72
1
Power Station Air/Electric Utility Box

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
