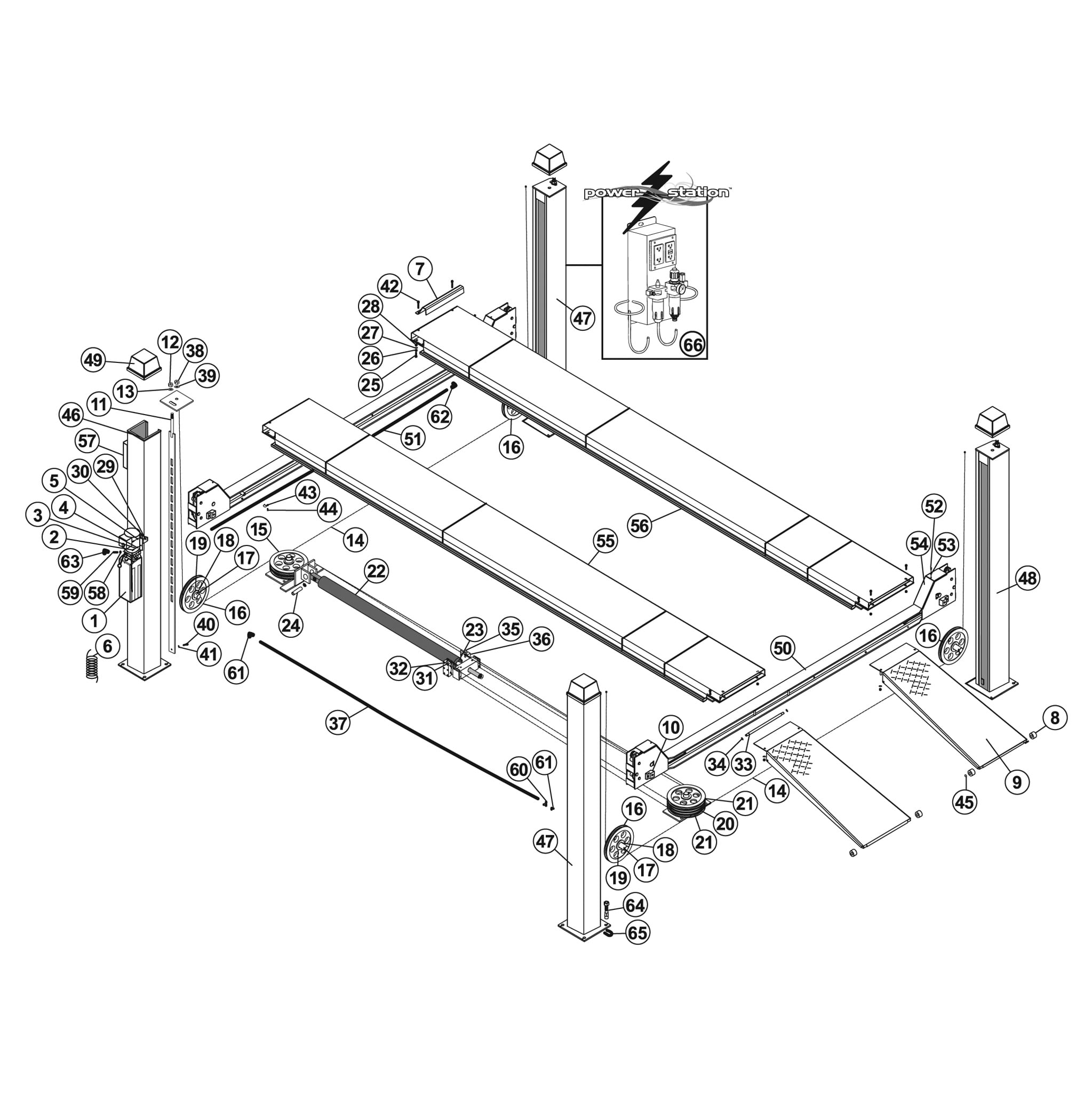

Parts for Tuxedo Lift FP14KA-C

Above Ground / Surface Mount 4-Post Lifts – Tuxedo – FP14KA-C

Direct Fit™ brand Repair parts for Tuxedo Lift Model FP14KA-C are available from SVI

14,000 lb Capacity Cable-Driven Four-Post Alignment Lift – Closed Front

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need cables, chain, chain rollers, pins, alignment plates, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, air / electric utility box, lift installation supplies, or another part for your 4-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo FP14KA-C:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
165976*01-004
1
Power Unit

2
165976*01-015
4
Hex Bolt

3
165976*01-016
14
Spring Washer

4
165976*01-014
34
Flat Washer

5
165976*01-013
40
Hex Nut

6
165976*01-060
1
Coiled Air Hose

7
165976*01-018
2
Wheel Stop

8
165976*01-007.1
4
Ramp Wheel

9
165976*01-007
2
Approach Ramp

10
165976*01-042
8
Nylon Slider Block

11
165976*01-029
4
Lock Ladder

12
165976*01-030
Hex Nut

13
165976*01-031
Flat Washer

14
165976*01-082
2
Steel Cable

15
165976*01-110
2
Cable Sheave 4

16
165976*01-052
4
Cable Sheave 1

17
165976*01-053
1
Bushing

18
165976*01-037
4
Sheave Pin 1

19
165976*01-037.1
6
Grease Fitting

20
165976*01-109
1
Cable Sheave 3

21
165976*01-108
2
Cable Sheave 2

22
165976*01-106
1
Hydraulic Cylinder

23
165976*01-106x
1
Seal Kit for Hyd. Cylinder

24
165976*01-107
1
Hydraulic Cylinder Pin

25
165976*01-024
8
Hex Bolt

26
165976*01-025
8
Spring Washer

27
165976*01-026
12
Flat Washer

28
165976*01-027
12
Hex Nut

29
165976*01-081
1
Switch

30
165976*01-081.1
1
Fixture Plate

31
165976*01-088
1
Cable Block 1

32
165976*01-087
1
Cable Block 2

33
165976*01-009
2
Ramp Pin

34
165976*01-008
4
Retaining Ring

35
165976*01-100
1
Cable Block 3

36
165976*01-101
1
Cable Block 4

37
165976*01-073
1
Long Air Hose 1

38
165976*01-011
12
Hex Nut

39
165976*01-010
8
Flat Washer

40
165976*01-032
4
Inner Hex Screw

41
165976*01-033
Flat Washer

42
165976*01-017
4
Hex Bolt

43
165976*01-023
1
Hose Clamp

44
165976*01-022
13
Cross Screw

45
165976*01-007.2
20
Retaining Ring

46
165976*01-003
1
Column 1

47
165976*01-001
2
Column 3

48
165976*01-005
1
Column 2

49
165976*01-034
4
Column Cover

50
165976*01-048
1
Crossbeam 1

50
165976*01-049
1
Crossbeam 2

51
165976*01-080
2
Air Hose 2

52
165976*01-075
13
Cross Screw

53
165976*01-076
Flat Washer

54
165976*01-077
4
Sheave Cover

55
165976*01-006
1
Runway - Offside

56
165976*01-002
1
Runway - Mainside

57
165976*01-012
1
Box

58
165976*01-019
1
Washer

59
165976*01-020
1
Hydraulic Fitting

60
165976*01-057
2
Air Union 2

61
165976*01-021
1
Elbow Fitting

62
165976*01-059
4
Elbow Union

63
165976*01-058
1
Air Union 1

64
165976*01-028
16
Wedge Anchor Bolt 3/4” x 5-1/2”

65
1
Plastic Shim Assortment 150 pack (3 sizes)

66
1
Power Station™ Air / Electric Utility Box

--
165976*01-083
10
Hex Screw

--
165976*01-084
14
Spring washer

--
165976*01-085
Hex Nut

--
165976*01-086
Flat Washer

--
165976*01-089
1
Hydraulic Hose Fitting

--
165976*01-090
4
Cover

--
165976*01-091
4
Cross screw

--
165976*01-092
14
Flat Washer

--
165976*01-093
1
Retaining Ring

--
165976*01-094
1
Hydraulic pipe

--
165976*01-095
2
Wheel Spindle

--
165976*01-096
4
Orientation Screw

--
165976*01-097
Orientation Board

--
165976*01-098
4
Cross Screw

--
165976*01-099
4
Spring Washer

--
165976*01-102
2
Inner Hex Screw

--
165976*01-103
Flat Washer

--
165976*01-104
1
Guide Board

--
165976*01-105
1
Block

--
165976*01-111
1
Spindle Bush

--
165976*01-112
2
Bearing

--
165976*01-113
8
Cross Bolt

--
165976*01-114
8
Insert Pin

--
165976*01-115
8
φ1.5 Cable

--
165976*01-116
16
Bushing

--
165976*01-117
8
Pull 1

--
165976*01-118
Flat Washer

--
165976*01-119
Hex Nut

--
165976*01-120
8
Spring

--
165976*01-121
2
Cover

--
165976*01-122
2
Cover 1

--
165976*01-123
2
Cover 2

--
165976*01-124
2
Cover 3

--
165976*01-125
1
Cable Block

--
165976*01-126
42
Wheel

--
165976*01-127
1
Safety Transmission Pole Clasp

--
165976*01-128
Hex Nut

--
165976*01-129
1
Safety Transmission Pole

NOT PICTURED:

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
