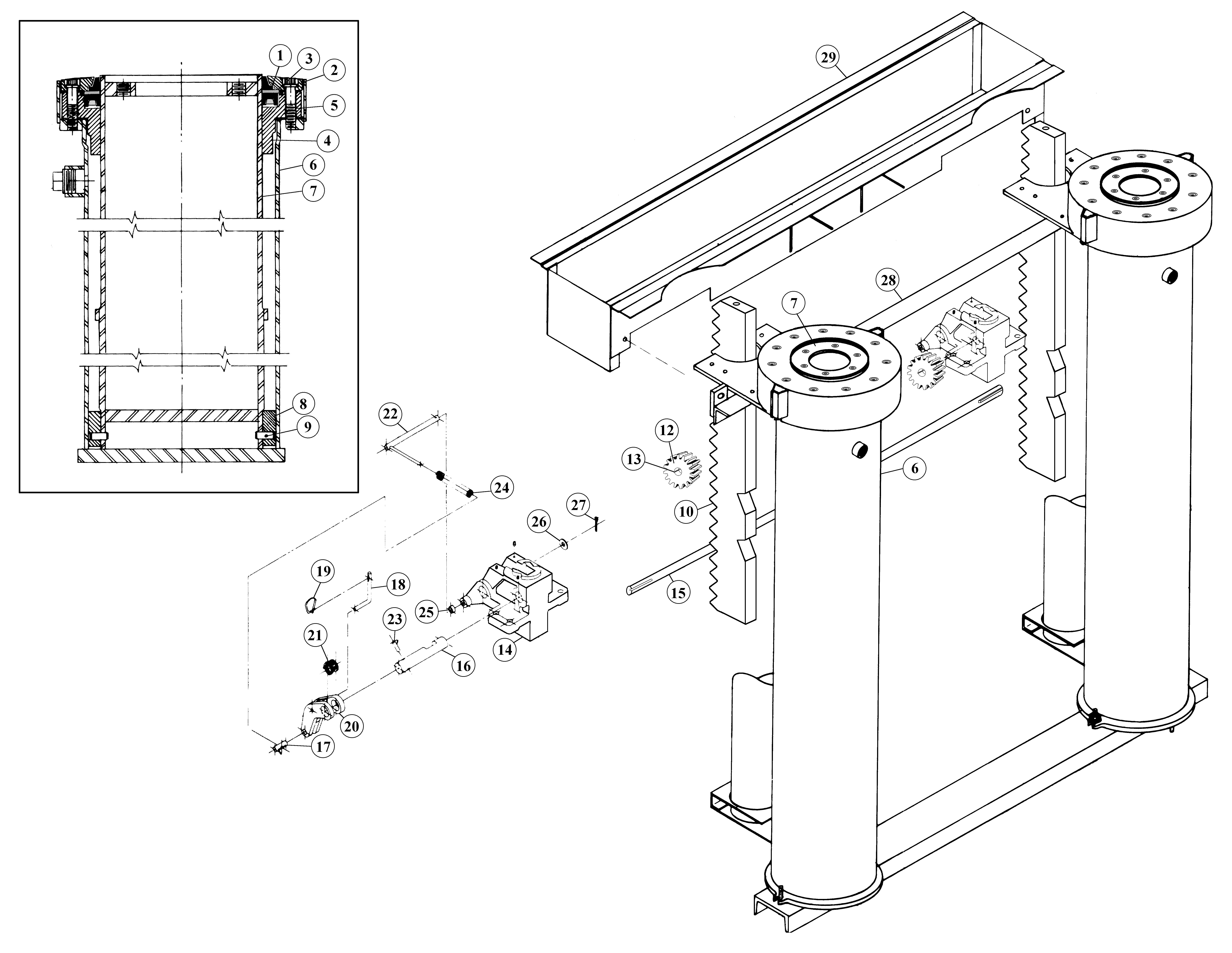

Parts for SVI International FS-28

In Ground Side by Side Lifts – SVI International – FS-28

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

--
Request Details
ALSO SEE EQUALIZER ASSEMBLY BREAKDOWN

1*
UW-81
1
Lift Packing Kit

1*
UW-81
1
Spring Style Lift Packing Kit

2
B-37440
1
Wiper Seal Cover (Gland)

3
B-37447
1
Holder Ring

4
BH-9412-92
B-37441
1
Upper Guide Bearing

5
438XG22
12
Capscrew

6
B-42976
2
Casing Assembly

7
B-37442-13
2
Plunger Assembly

8
BH-9412-95
B-41584
2
Lower Guide Bearing

9
359xM1250
2
Spring Pin

10
B42850-1
2
Auto-Lock Rack Bar

10++
B-39818
2
Manual Lock Rack Bar

12
B-39999
2
Pinion Gear

13
B-39089
2
Key 3/8" x 1"

14 L
C-42854
1
Left Hand Auto-Lock Housing

14 R
C-42840
1
Right Hand Auto-Lock Housing

---
Repair Kit for Auto Lock Eq.

14**
C-41384
2
Manual Lock Cast Iron Housing

15
B-33207-7
1
Shaft for 26-1/2" piston centers

15
1
Auto Lock Shaft for 26-1/2" Piston Centers

15
B-33207-1
1
Shaft for 29-1/2" Piston Centers

15
B-42851-4
1
Auto Lock Shaft for 29-1/2" Piston Centers

15
B-33207-4
1
Shaft for 36" Piston Centers

15
B-432851
1
Auto Lock Shaft for for 36" Piston Centers

15
B-33207-2
1
Shaft for 39" Piston Centers

15
1
Auto Lock Shaft for 39" Piston Centers

15
B-33207-3
1
Shaft for 42" Piston Centers

15
1
Auto Lock Shaft for 42" Piston Centers

15
B-33207-5
1
Shaft for 46" Piston Centers

15
1
Auto Lock Shaft for 46" Piston Centers

15
1
Shaft for 57-1/2" Piston Centers

15
B-42851-2
1
Auto Lock shaft for 57-1/2" Piston Centers

15
B33207-6
1
Shaft for 83-1/2" Piston Centers

15
B-42851-1
1
Auto Lock Shaft for 83-1/2" Piston Centers

15
B-42851-3
1
Shaft for All 88" Piston Centers

16
A-42838
2
Auto Eq. Lock Shaft

17
A-42845
2
Auto Eq. Pin

18
A-42843
2
Auto Eq. Push Rod

19
A-42844
2
Auto Eq. Lift Ring

20
C-42837
2
Auto Eq. Lock Lever

21
A-42847
2
Auto Eq. Torsion Spring

22
A-42839
2
Auto Eq. Spring Arm

23
916015
2
Groove Pin

24
A-42846
2
Compression Spring

26
F-FW-0375-1000
642X10
2
Washer

27
360XC8
2
Cotter Pin

28
B-43409-4
1
Spacer Angle for 29-1/2" centers

28
B-43409-2
1
Spacer Angle for 57-1/2" centers

28
B-43409-3
1
Spacer Angle for 88" centers

29
B-42984-4
1
Pitform & Cover 29-1/2" centers

29
43412-001
1
Pitform Cover 57-1/2" centers

29
42983-002
1
Pitform 57-1/2" centers

29
43412-002
1
Pitform Cover 88" centers

29
42983-005
1
Pitform 88" centers

30
C-43288
2
Bolster Assy (FSN-28, FS-28)

31
C-43625
2
Bolster Assy (FSR-28)

32
B-32101-2
4
Wear Washer

33
B-42936
4
Arm Assembly

34
426XG-N14
4
Locking Cap Screw

35
A-40689
4
Spacer

36
C-34354
4
Sleeve and Adapter Assembly

--
Rubber Pad Adapter

37
C-34355
4
Lifting Pad only

38
438XH-16
8
Socket Head Cap Screw

39
F-LC-0625-11-1750
426XG-N14
6
Locking Cap Screw

40
412XH-008
4
Arm Stop Pin for Sleeve black

--
4
Arm Stop Pin for Sleeve silver

--
Arm Rest. for 89" Plunger Centers

* Lift Packing Kits contain seal, wiper, spring (SP kits only), plus all necessary gaskets. Please see pages 2 - 6 for identification information.

++ Manual Lock Rack Bars not pictured.

** Manual Lock Brackets not pictured. Use with BH-9410 rack bars
