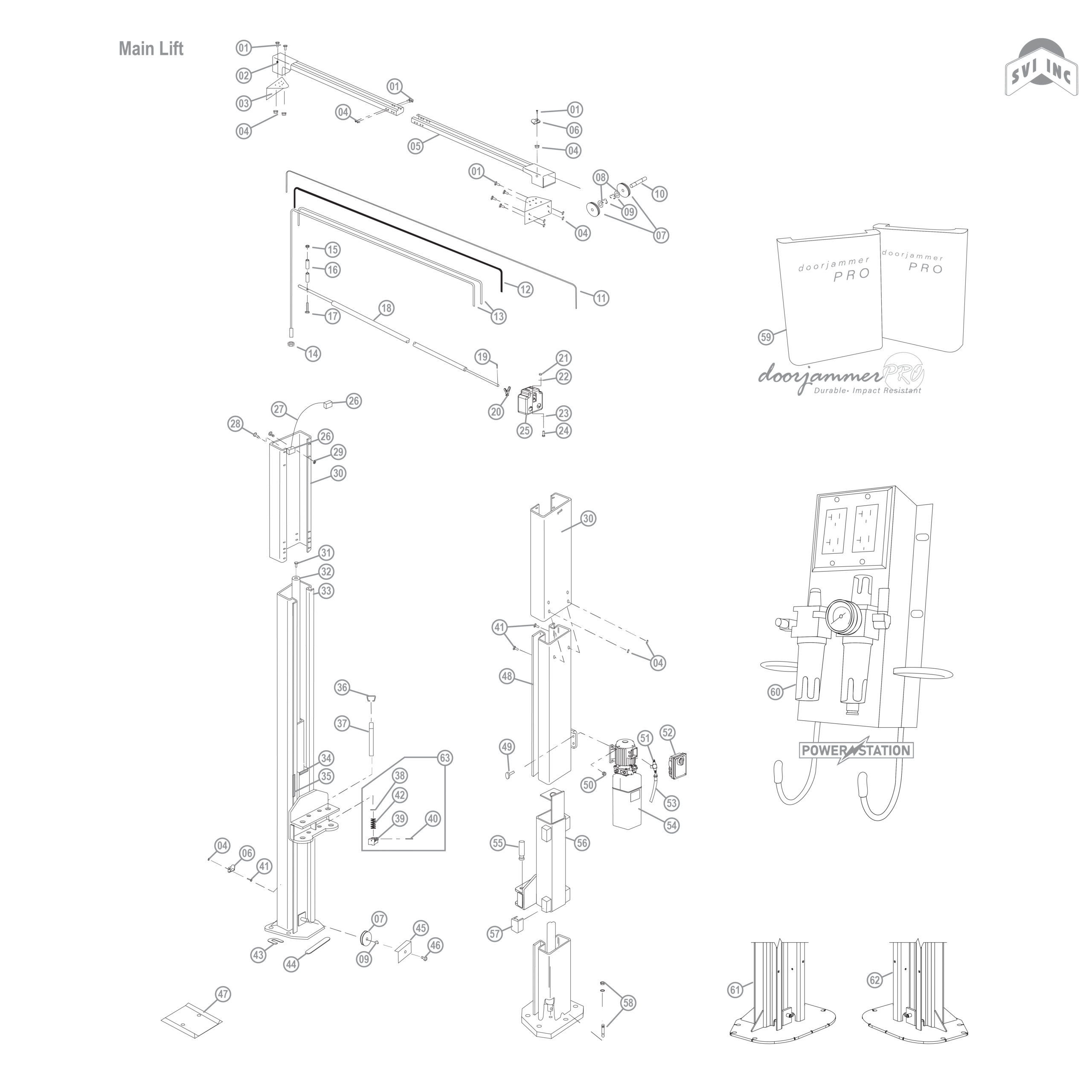

Parts for Rotary SPOA10 Shockwave (Main Lift)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
40124
Flanged Hex Head Cap Screw (3/8"-16NC x 3/4" Lg.)

2
N480
Overhead Assembly – Left (Outer)

3
N439
Column Mounting Bracket

4
40664
Flanged Locknut (3/8"-16NC)

5
N481
Overhead Assembly – Right (Inner)

6
N383
Hose Clip

7
N377
Sheave

8
41388
Bushing (1-1/2" O.D. x .760–.770" I.D. x .045")

9
41411
Truarc Klipring #5304-75 – 3/4" Shaft

10
FJ7444-8
Sheave Shaft

11
FJ7600
Locking Latch Cable

12
N3103
Overhead Hose – Standard

12
FJ842
Overhead Hose – EH-1 Model

12
FJ843
Overhead Hose – EH-2 Model

13
N372
Equalizer Cables

13
N378
Equalizer Cables – EH-1 Model

13
N373
Equalizer Cables – EH-2 Model

14
40743
Nylon Insert Lock Nut (5/8"-11NC)

15
40642
Insert Lock Nut (1/4"-20NC)

16
FJ7871
Spacer (3/4")

17
40114
Hex Head Cap Screw (1/4"-20NC x 2-3/4")

18
N467
Switch Bar Assembly

19
41200
Cotter Pin (1/8" x 1" Lg., 3Ø Only)

20
N432-5
Actuator Assembly – 3Ø

21
40627
Zinc Hex Nut (1/4"-20NC)

22
40779
External Tooth Lockwasher (1/4")

23
40795
Flat Washer (1/4")

24
40099
Hex Head Cap Screw (1/4"-20NC x 3/4" Lg.)

25
x
Cutoff Switch Assembly

26
N619
Cable End Bracket

27
N618
Cable Guide

28
40108
Hex Head Cap Screw – Grade 5 (1/4"-20NC x 1")

29
40641
Flanged Locknut (1/4"-20NC)

30
N470
Column Extension – Standard Height

30
N471
Column Extension – EH-1 Model

30
N472
Column Extension – EH-2 Model

31
x
Bleeder Screw – Specify Manufacturer

32
N3156
Hydraulic Cylinder – 68" Rise

32
N382
Hydraulic Cylinder – 71" Rise

33
N752
Column Weldment – Left Standard

34
FA941
Carriage Bumper

35
FJ7391-1
Approach Bumper

36
FJ7985-1
Actuator Pin Handle

37
N121-1
Actuator Pin

38
N119-3
Retaining Pin

39
N2121
Arm Restraint Pawl

40
14427
Spring Pin – Stainless (1/4" Dia. x 1-1/2" Lg.)

41
x
Carriage Bolt (3/8"-16NC x 3/4")

42
FJ7656-2
Arm Restraint Spring

43
FJ716-6
Shim

44
FJ7659-3
Shim – Front

45
N119-1
Sheave Cover

46
40063
2
Pan Head Machine Screw – Plated (1/4"-20NC x 3/8" Lg.)

47
FF729
Wheel Spotting Dish Kit

48
N755
Column Weldment – Right Standard

49
40509
Flanged Hex Head Cap Screw – Full Thread (5/16"-18NC x 1-1/2")

50
40678
Hex Flanged Lock Nut (5/16"-18NC)

51
FJ7668
Branch Tee

52
FA7147-1
Capacitor Box

52
FA7366-1
Capacitor Box Cover Plate

52
FA7364
Drum Switch

52
FA7364-1
Drum Switch Lever

52
41672
Pan Head Machine Screw – Plated (M5 x 45)

53
FJ837
Power Unit Hose

54
x
Power Unit

55
N2154
Arm Pin

56
N822
Carriage Yoke Weldment

57
FJ7360
Slider Block

58
FJ7380
Concrete Anchor (3/4")

59
Doorjammer Pro (12")

59
Doorjammer Pro (24")

60
Power Station (2-Post)

61
N766
Column Weldment – Left Seismic

62
N768
Column Weldment – Right Seismic

63
N2148
Arm Restraint Kit (1 Arm)

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part or product listed is the actual product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
