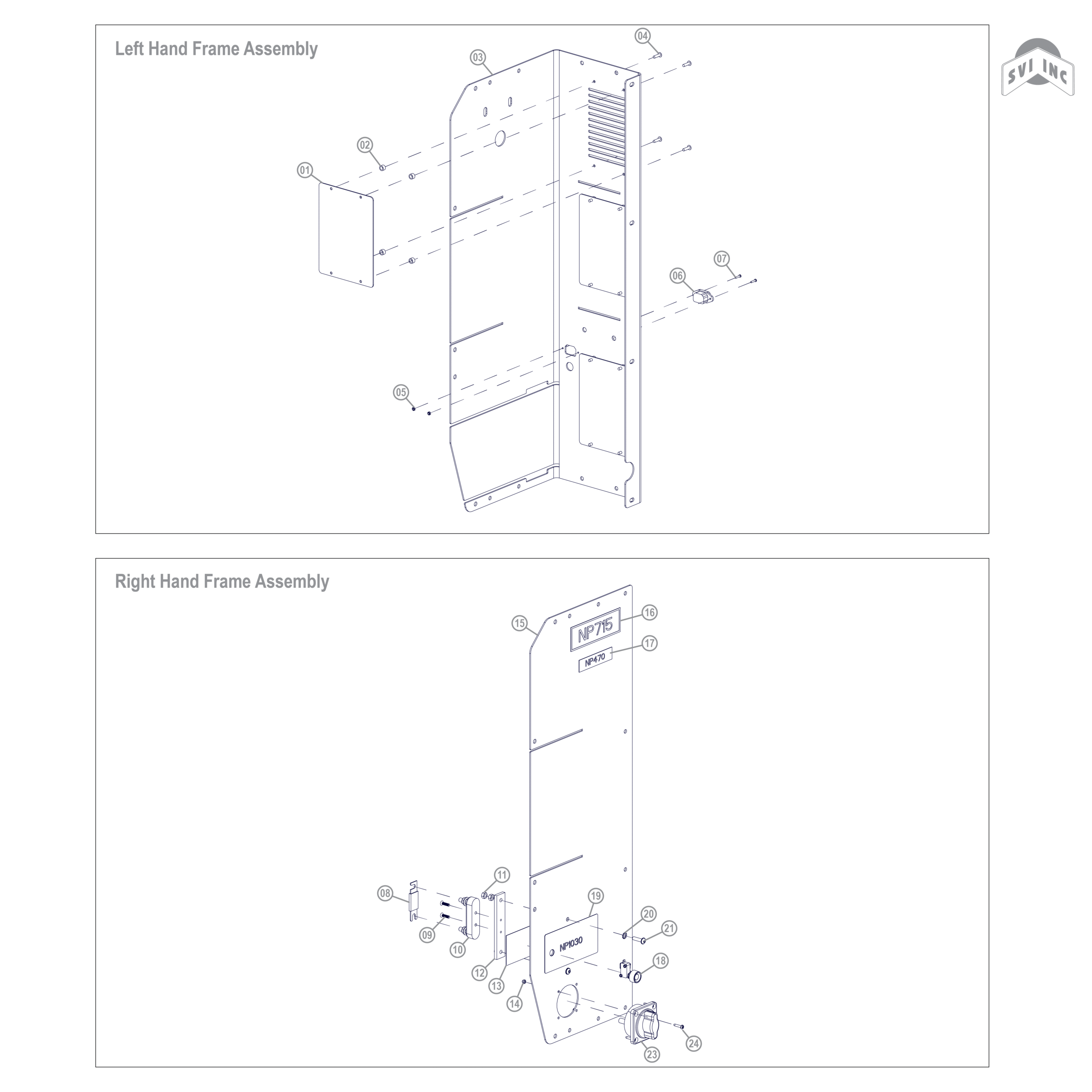

Parts for Rotary SPOA10 Shockwave (Frame)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
FA966-17
Splash Shield

2
FA966-21
Spacer

3
FA966-52
Battery Cabinet Frame Forming – Left

4
FA966-18
Dome Head Rivet

5
41628
Nylon Insert Locknut (#4-40)

6
FA983
Charger Internal Power Cord

7
796443
Pan Head Machine Screw – Plated (#4-40 x 1/2")

8
FA975-1
Fuse – 350 Amp

9
40004
Flat Phillips Head Machine Screw (#10-24 x 5/8")

10
FA975
Fuse Holder

11
40627
Hex Nut – Plated (1/4"-20NC)

12
FA966-8
Fuse Holder Mounting Bracket

13
NP692
Nameplate

14
450957
Nylon Locknut (#8-32NC)

15
FA986-10
Battery Cabinet Frame – Right

16
NP1066
Nameplate

17
NP470
Warning Label – Motor Location

18
P1483
Limit Switch Assembly

19
NP1030
Pushbutton Nameplate

20
40779
External Tooth Lockwasher (1/4")

21
40077
Flanged Hex Socket Button Head Cap Screw – Grade 2 (1/4"-20NC x 1")

22
NP715
Nameplate

23
FA7958-4
DC Disconnect Switch

24
40022
Pan Head Machine Screw (#8-32NC x 1/2")
