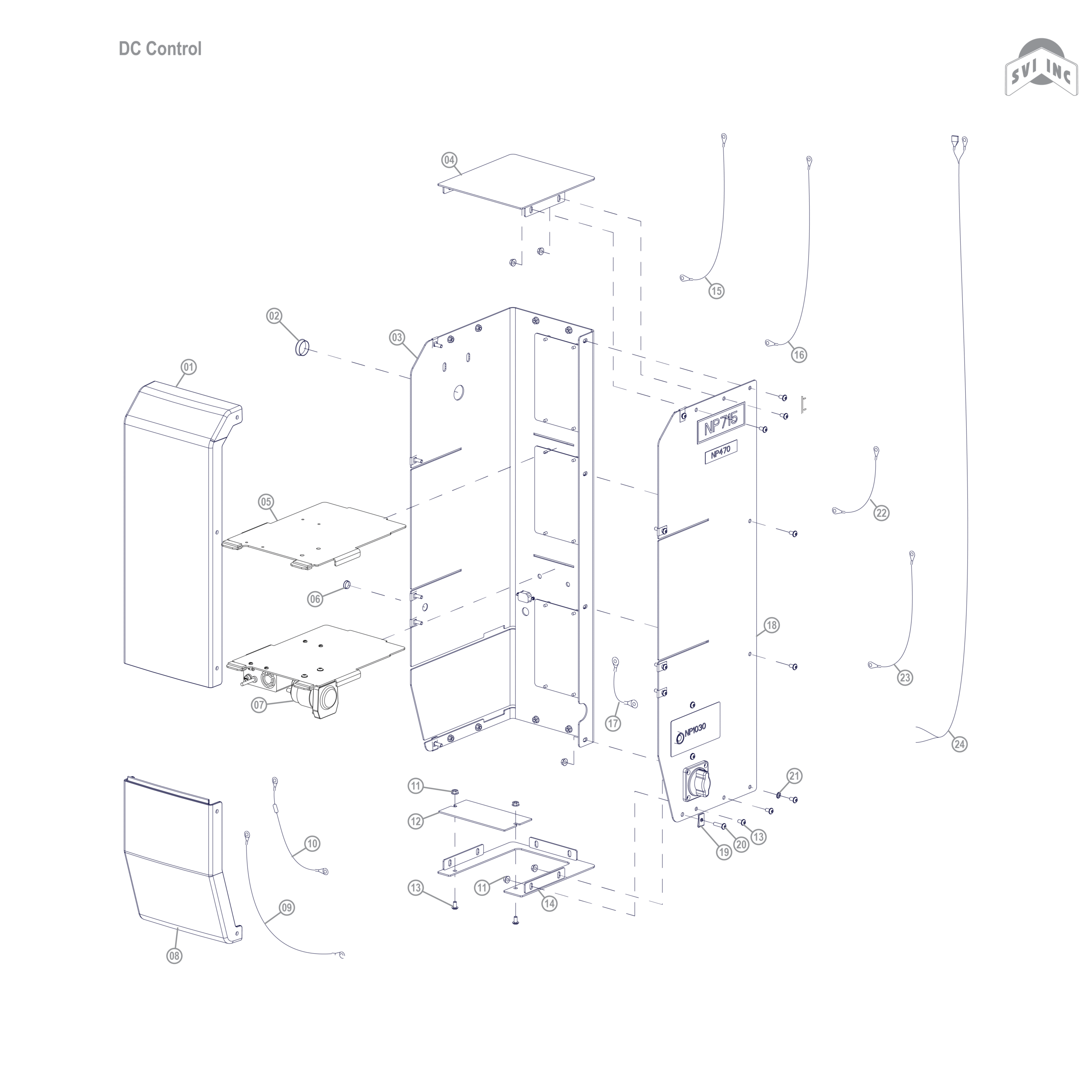

Parts for Rotary SPOA10 Shockwave (DC Control)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
FA966-50
Battery Cabinet Front Top Cover Assembly

2
FA966-34
Hole Plug (1-1/4")

3
FA966-37
Battery Cabinet Frame Assembly – Left

4
FA966-39
Battery Cabinet Top Cover Weldment

5
FA966-58
Battery Cabinet Shelf Weldment

6
FA966-60
Transparent Hold Plug

7
FA966-48
Battery Cabinet Lower Shelf Assembly

8
FA966-45
Battery Cabinet Front Bottom Cover

9
FA970
Contactor Harness

10
FA978
Disconnect Harness

11
40641
Hex Flanged Wizz Lock Nut – Plated (1/4"-20NC)

12
FA966-46
Battery Cabinet Small Bottom Cover

13
40094
Flanged Hex Socket Button Head Cap Screw (1/4"-20NC x 1/2")

14
FA966-42
Battery Cabinet Bottom Cover Weldment

15
FA7668
Battery–Motor Cable

16
FA7667
Battery–Disconnect Cable

17
FA982
Ground Wire

18
FA986-1
Battery Cabinet Frame Assembly – Right

19
FA966-22
Clip-On Nut

20
40077
Flanged Hex Socket Button Head Cap Screw – Grade 2 (1/4"-20NC x 1")

21
40779
External Tooth Lockwasher (1/4")

22
FA7618
Disconnect–Fuse Cable

23
FA7619
Fuse–Contactor Cable

24
FA971
Overhead Harness
