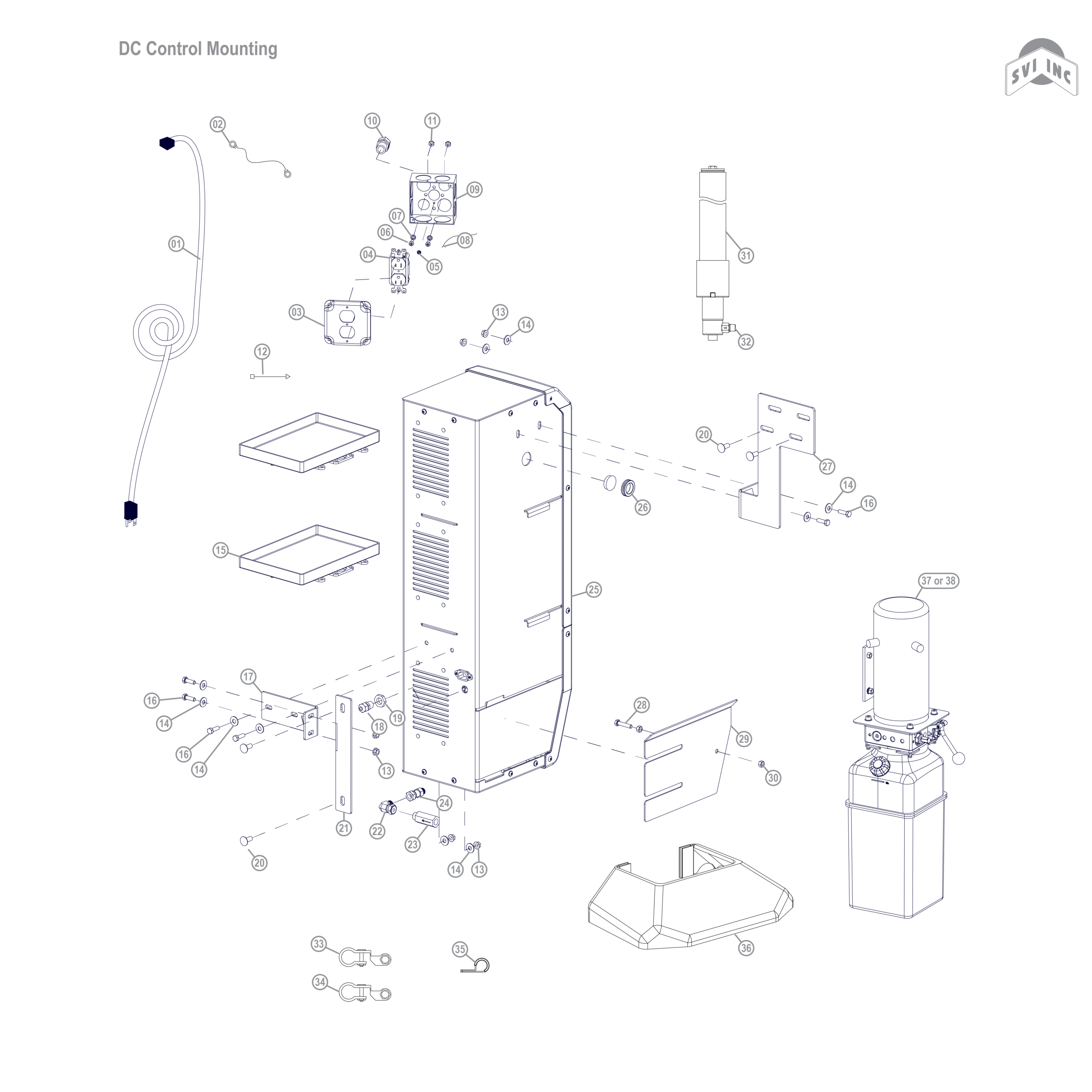

Parts for Rotary SPOA10 Shockwave (DC Control Mounting)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Call for Details
FA966-51
Universal Power Cord – 10 ft (NEMA 5-15P to IEC320C13)
View
2
Call for Details
FA7616
Battery Cable
View
3
Call for Details
FA980-1
Duplex Receptacle Cover – 4" Square Box
View
4
Call for Details
FA980-2
Duplex Female Receptacle
View
5
Call for Details
FA997-1
Hex Washer Head Self-Tapping Screw – Plated Green (#10-32 x 1/4")
View
6
Call for Details
41526
Phillips Pan Head Machine Screw – Plated (#12-24NC x 3/4")
View
7
Call for Details
41527
External Tooth Lockwasher – Plated (#12)
View
8
Call for Details
FA980-3
Ground Wire
View
9
Call for Details
FA997
Junction Box
View
10
Call for Details
FA7958-28
Cord Grip
View
11
Call for Details
40650
Hex Nut – Plated (#12-24NC)
View
12
Call for Details
629888
Cable Tie – Nylon Black (11")
View
13
Call for Details
40678
Hex Flanged Wizz Lock Nut – Plated (5/16"-18NC)
View
14
Call for Details
40217
USS Flat Washer – Plated (5/16")
View
15
Call for Details
FA966-16
Battery Tray
View
16
BH-7234-621
40221
Hex Head Cap Screw – Grade 5 Plated (5/16"-18NC x 1")
View
17
Call for Details
FA966-56
Battery Cabinet Mounting Bracket Weldment
View
18
Call for Details
FA7189-14
Strain Relief – NPT (3/8")
View
19
Call for Details
FA7189-15
Locknut – NPT (3/8")
View
20
Call for Details
40167
Carriage Bolt – Grade 5 Plated (3/8"-16NC x 1" Lg.)
View
21
Call for Details
FA966-57
Battery Cabinet Column Mounting Bracket Weldment
View
22
Call for Details
FJ71007
Swivel Elbow – Male ORFS x Female ORFS
View
23
Call for Details
FJ71003
Flow Regulator
View
24
Call for Details
EFX60010319
Adapter – Straight Thread / Swivel (ORB/ORFS 6x6)
View
25
Call for Details
FA966
DC Control Assembly
View
26
BH-7527-96
FA7180-31
Wire Grommet
View
27
Call for Details
FA966-55
Battery Cabinet Upper Mounting Bracket Weldment
View
28
Call for Details
40271
Hex Head Cap Screw – Full Thread (5/16"-18NC x 1-1/2")
View
29
Call for Details
FA966-47
Battery Cabinet – 2-Post Splash Shield
View
30
Call for Details
40670
Hex Nut (5/16"-18NC)
View
31
Call for Details
N3151Y
Hydraulic Cylinder
View
32
BH-7511-05
FJ7352-3
Adapter
View
33
Call for Details
FA979
Battery Terminal End – Positive
View
34
Call for Details
FA981
Battery Terminal End – Negative
View
35
BH-7535-70
FJ7669
Column Hose Clamp
View
36
BH-7547-005
N539
Base Plate Cover – SPOA10 & SPO10 Models Only
View
37
Call for Details
P3577
DC Power Unit – Pad Lift
View
38
Call for Details
P3579
DC Power Unit – Arm Lift
View

DC Power Unit – SPO12
