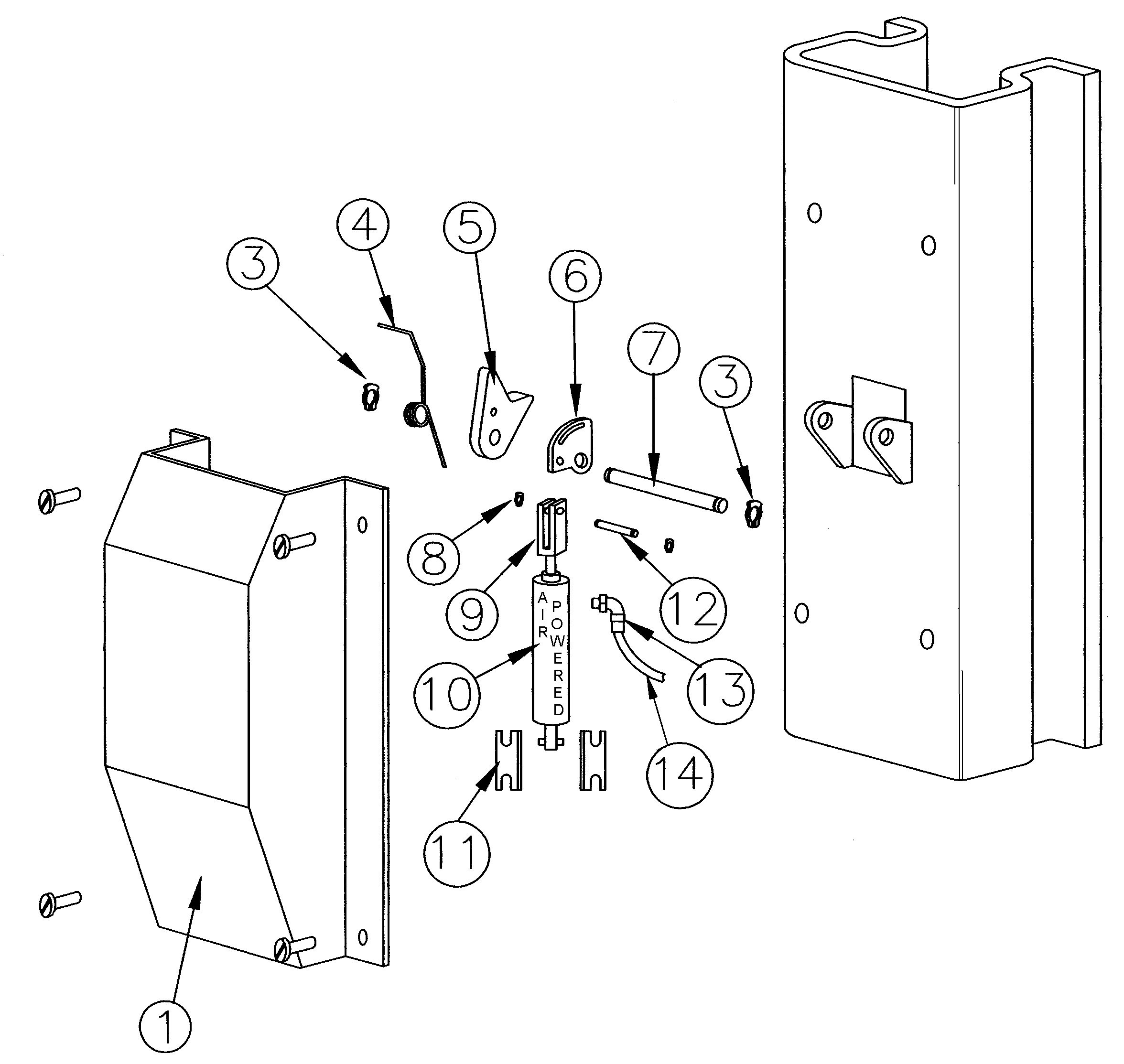

Parts for Rotary SPO18 Lock Detail

Above Ground / Surface Mount 2-Post Lifts – Rotary Lift – SPO18

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7502-50
FJ7451
1
Cover (no slot)
View
1
F-MS-0312-18-0375
5/16-18 x 3/8 Machine Screw
View
3
BH-7537-59A
41417
2
Ext. Retaining Ring 5304-125
View
4
BH-7512-54
FJ7813-5
1
Spring
View
5
BH-7536-24
FJ7813-14
1
Lock Pawl
View
6
BH-7536-40
FJ7813-6
1
Control Plate
View
7
BH-7536-41
FJ7813-7
1
Lock Pawl Shaft
View
8-9
BH-7519-06
11263
1
Air Cylinder Rod Clevis Set
View
10
BH-7528-92
N61
1
Air Cylinder
View
11
BH-7519-09
11265
1
Pivot Bracket Set
View
12
BH-7519-06
11263
1
Air Cylinder Rod Clevis Set
View
13
BH-7514-13
FA3134-6
1
Elbow 1/4" Air Line to 1/8" NPT
View
14
BH-7507-01
FA2230-2
1
1/4" x 50' Air Line
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
