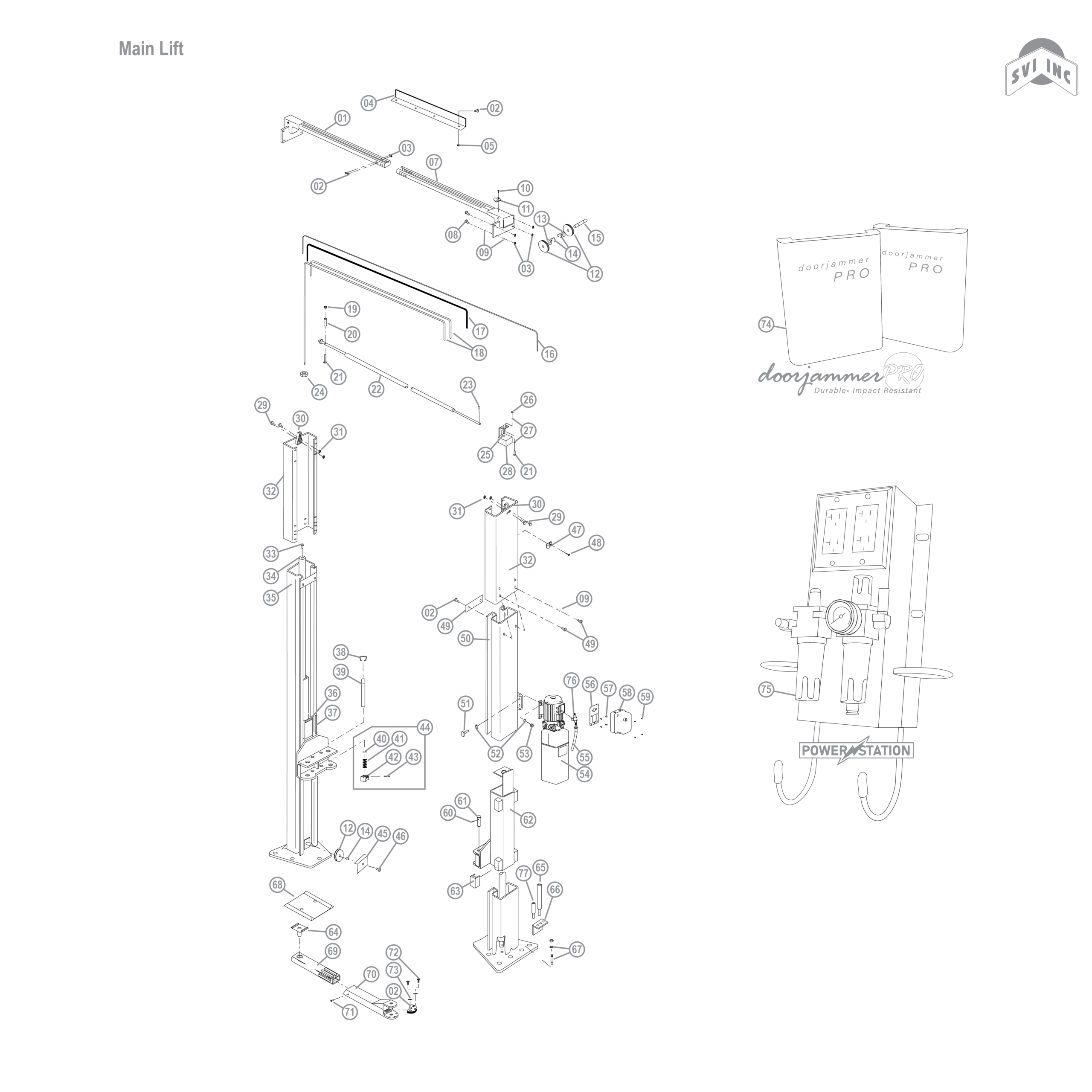

1
FJ7447-1
Overhead Weldment – Left Outer
2
Call for Details
Gear – Arm Restraint Main Adjustable
3
40664
Flanged Locknut (3/8"-16NC)
5
Call for Details
4
Flanged Locknut (3/8"-16NC)
6
40134
Hex Head Cap Screw (3/8"-16NC x 3/4" Long)
7
FJ7446-1
Overhead Weldment – Right Inner
8
40144
Hex Head Cap Screw – Flanged (3/8"-16NC x 1")
9
40845
Lockwasher – External Tooth (3/8")
10
40057
4
Hex Washer Head Tapping Screw – Slotted Type B (12 x 1/2", 4 Required)
11
FJ7206
4
Hose Clip – Overhead (4 Required)
13
41388
Bushing – Machine (1-1/2" O.D. x .760-.770" I.D. x .045")
14
41411
Klipring – Truarc #5304-75 (3/4" Shaft)
16
FJ7595-1
Cable – Locking Latch Standard Height
16
FJ7600
Cable – Locking Latch EH-1 & EH-2 Models
17
N349
Hose – Overhead Standard Height
17
Call for Details
Hose – Overhead
17
N350
Hose – Overhead EH-1 Model
17
N351
Hose – Overhead EH-2 Model
18
N39
Equalizer Cables – Standard Height
18
N312
Equalizer Cables – EH-1 Model
18
N313
Equalizer Cables – EH-2 Model
19
41423
Insert Locknut (1/4"-20NC)
21
40109
Hex Head Cap Screw (1/4"-20NC x 2")
22
FJ7613-2
Switch Bar Assembly
23
41200
Cotter Pin (1/8" x 1" Long)
24
40743
Hex Nylon Insert Locknut (5/8"-11NC)
25
N413-1
Limit Switch – ≤250V
25
Call for Details
Microswitch – Small New Style
25
FJ7979-1
Limit Switch – >250V
26
40627
Hex Nut – Zinc (1/4"-20NC)
27
40779
Lockwasher – External Tooth (1/4")
28
N413
Limit Switch Assembly – ≤250V
28
N414
Limit Switch Assembly – >250V
29
40108
Hex Head Cap Screw – Grade 5 (1/4"-20NC x 1")
31
40641
Flanged Locknut (1/4"-20NC)
32
N419
Column Extension – Standard Height
32
N420
Column Extension – EH-1 Model
32
N421
Column Extension – EH-2 Model
33
Call for Details
2
Screw – Bleeder (Specify Manufacturer)
34
Call for Details
Hydraulic Cylinder – Stroke (68")
35
N724
Column Weldment – Left
36
FJ7391-2
Bumper – Carriage
37
FJ7391-1
2
Bumper – Approach Door (18" Long, 2 Required)
38
FJ7985-1
Handle – Actuator Pin
41
FJ7656-2
Spring – Arm Restraint
42
FJ7749
Gear Block (120T)
43
14427
Spring Pin – Stainless (1/4" Dia. x 1-1/2")
44
FJ7888
Arm Restraint Kit (1 Arm)
46
40063
2
Pan Head Machine Screw – Zinc Plated (1/4"-20NC x 3/8", 2 Pieces)
47
FJ7499
6
Hose Clip – Column (6 Required)
48
40227
6
Pan Head Machine Screw (5/16"-18NC x 3/8", 6 Required)
50
N726
Column Weldment – Right
51
40271
Bolt (5/16"-18NC x 1-1/2")
52
40854
Lockwasher – External Tooth (5/16")
53
40670
Hex Nut (5/16"-18NC)
54
P1391
Power Unit – Single Phase
54
P1395
Power Unit – Three Phase
56
FA7132-2
Adapter Plate – Control Box
57
FA7152-1
Machine Screw – Flat Head (M5 x .7 x 8mm)
58
Call for Details
Control Panel
59
FA7152-2
Machine Screw – Self Tapping Pan Head (#8-32NC x 1/2")
60
41250
Cotter Pin (3/16" x 2" Long)
62
N810
Carriage Yoke Weldment
65
FJ6144
Adapter Extension (8")
67
FJ7380
14
Wedge Anchor – All Thread (3/4" x 5-1/2", Box of 20)
68
FF729
Wheel Dish Kit – Spotting
72
40200
Hex Head Cap Screw – Grade 5 (3/8"-16NC x 1-1/2")
73
40818
Spring Washers (3/8")
77
FJ6143
Adapter Extension (4")
