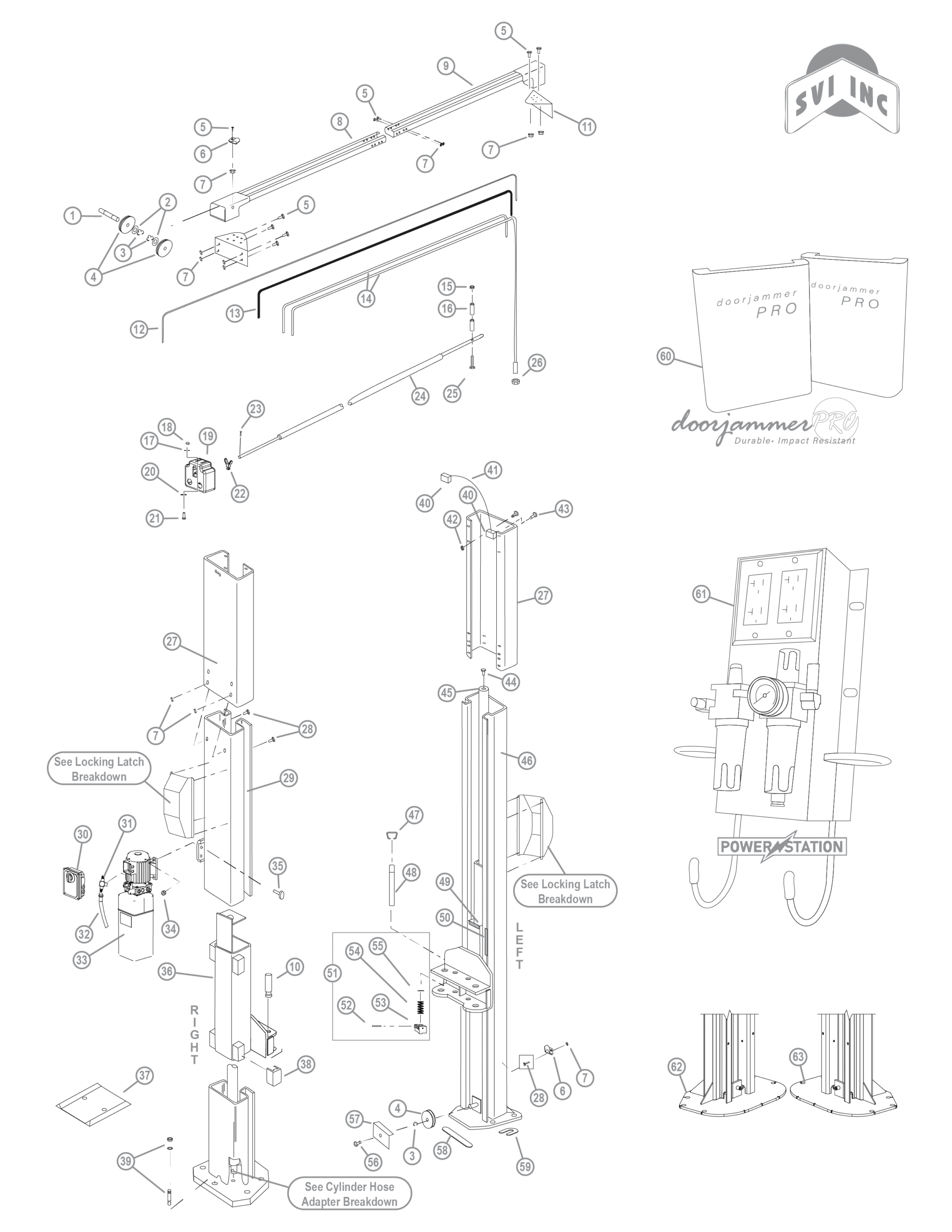

Parts For Rotary SPO10 500 Series (Main Lift)
Add toQuote
Add toOrder
Item
SVI Part #
OEM #
QTY
Description
7
n/a
40664
Flanged Locknut (3/8" -16NC)
15
n/a
40642
Insert Locknut (1/4" -20NC)
17
n/a
40779
External Tooth Lockwasher (1/4")
18
n/a
40627
Hex Nut-Zinc Coated (1/4" -20NC)
20
n/a
40795
Flat Washer (1/4")
21
n/a
40099
Hex Head Cap Screw (1/4" -20NC x 3/4")
25
n/a
40114
Hex Head Cap Screw (1/4" -20NC x 2-3/4")
26
n/a
40743
Nylon Insert Lock Nut (5/8" -11NC)
30
n/a
41672
Pan Head Machine Screw (M5 x 45)
30
n/a
FA7364
Drum Switch
30
n/a
FA7364-1
Drum Switch Lever
34
n/a
40678
Hex Flanged Lock Nut (5/16" -18NC)
35
n/a
40509
Hex Head Cap Screw-Flanged Full Thread (5/16" - 18NC x 1-1/2")
42
n/a
40641
Flanged Locknut (1/4" -20NC)
43
n/a
40108
Hex Head Cap Screw-Grade 5 (1/4" -20NC x 1")
49
n/a
FA941
Carriage Bumper
