Parts for Rotary SM91

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – SM91

Repair parts for Rotary Lifts Model SM91 are available from SVI.

SVI is the your best choice for repair parts for Rotary Lifts. Whether you need chain, chain rollers, cables, sheaves, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order

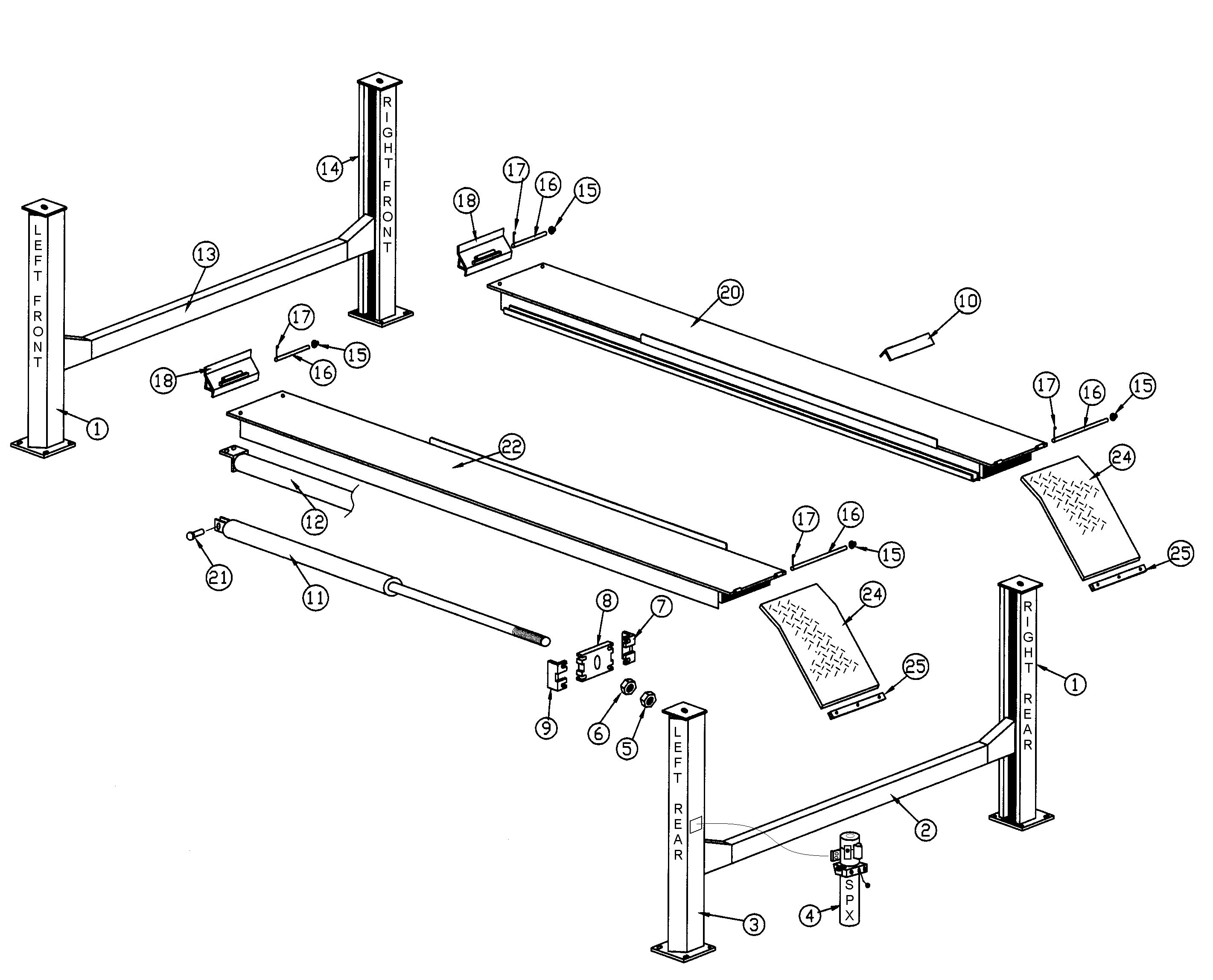

Item
SVI Part #
OEM #
QTY
Description

1*
FC5446
2
Column

2*
FC5301-1
1
Rear Cross Member

3*
FC5447
1
Power Unit Column

4
1
Power Unit

5
1
1-1/8 - 7 Jam Nut

6
F-HN-1125-07
1
1-1/8 - 7 Hex Nut

7
FC528-2
1
Right Cable Retainer

8
FC528
1
Cable Plate

9
FC528-3
1
Left Cable Retainer

10
FC320
Wheel Chock

11
FC5343
1
Hydraulic Cylinder (Clevis Style)

12
FC537
1
Hydraulic Cylinder (2 Bolt Style)

12A
FC537-12MF
Seal Kit for Massey-Ferguson

12B
FC537-12TH
Seal Kit for Texas

13*
Request Details
FC5289-1
1
Front Cross Member

14*
FC5445
1
Column

15
FC5179-4
5/8" Push Nut

16
FC134-99
2
Hinge Pin

17
F-CP-156-1000
41202
5/32" x 1" Cotter Pin

18
FC134-13
2
Wheel Stop Assembly

20*
Request Details
FC5349
1
Right Runway

22*
Request Details
FC5351
1
Left Runway

24
FC134-12
2
Approach Ramp

25
FC134-33
2
Ramp Slide

KIT
S100051
Ramp Slide KIT

* Custom order by request. Sample may be needed.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
