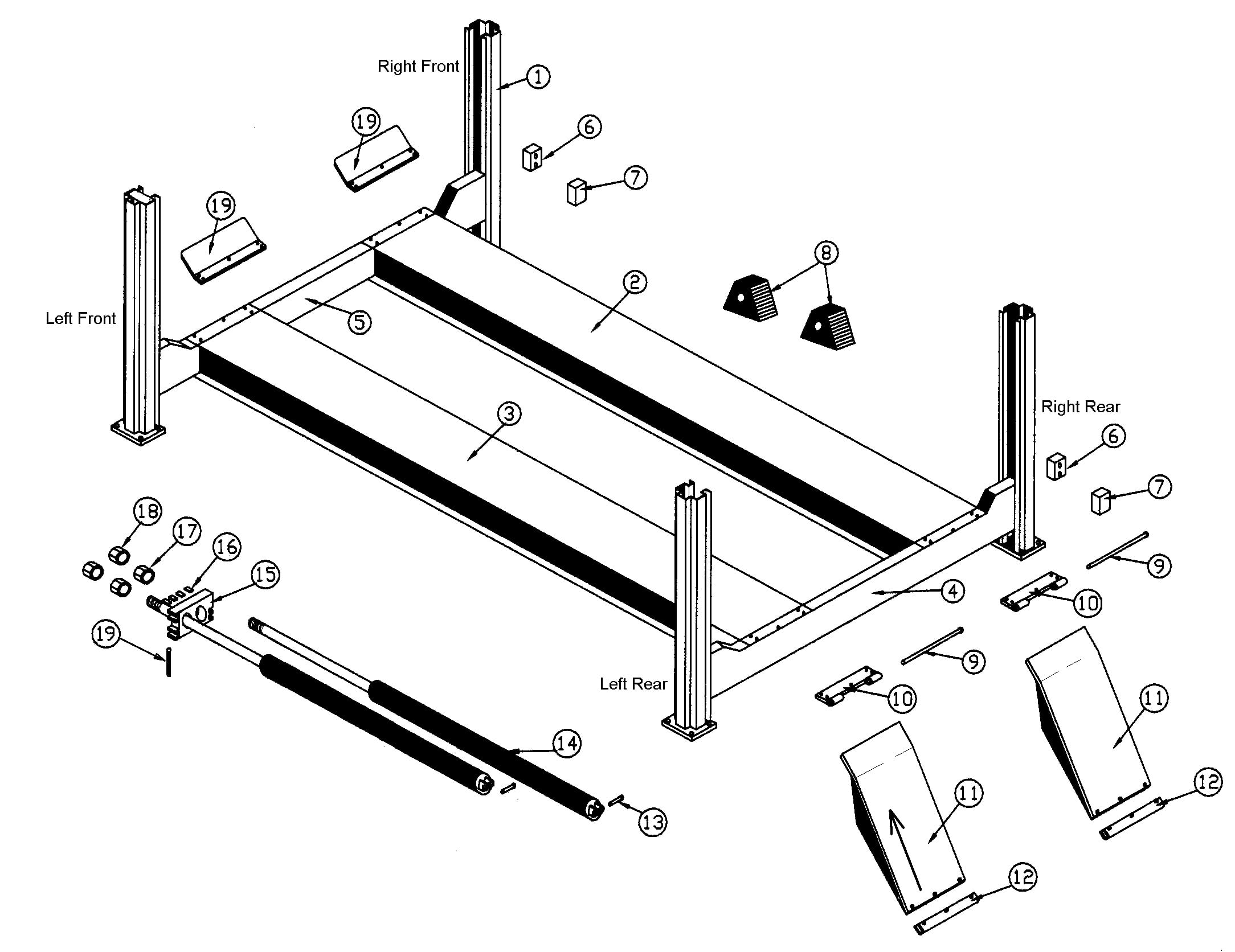

Parts for Rotary SM504

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – SM504

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
Request Details
FC5387
4
Column
2*
Request Details
1
Runway
3*
Request Details
1
Runway
4*
Request Details
FC5390
1
Rear Cross Member
5*
Request Details
FC5389
1
Front Cross Member
6
Request Details
FC5389-5
8
Holder
7
BH-7510-03
FJ7360
8
Slider Block (cup style)
View
7
BH-7515-65
FJ5106
2
Shim and Slider Kit (1 carriage)
View
8
BH-7524-62
FC337
4
Adjustable Wheel Wedge
View
9
BH-7514-81
FC5388-54
2
Hinge Pin
10
BH-7514-82
FC5388-55
2
Hinge
11
BH-7514-80
FC5388-49
2
Approach Ramp
12
BH-7525-22
FC5142-3
2
Ramp Slide
View
13
BH-7527-87
FC5225-23
2
Cylinder Pin
View
14
BH-7531-24
FC5761
2
Hydraulic Cylinder
View
14
BH-7531-24A
15474
2
Hydraulic Cylinder Seal Kit TH
View
15
Request Details
FC5388-9
1
Cable Plate
16
BH-7525-49
FC5160-12
8
Cable Plate Slider
View
17
F-HN-1750-05
40777
2
1-3/4-5 Hex Nut
18
F-JN-1750-05
40778
2
1-3/4-5 Jam Nut
19
F-SP-375-3250
14464
2
Spirol Roll Pin 3/8" x 3-1/4"

* Custom order by request. Sample may be needed.
