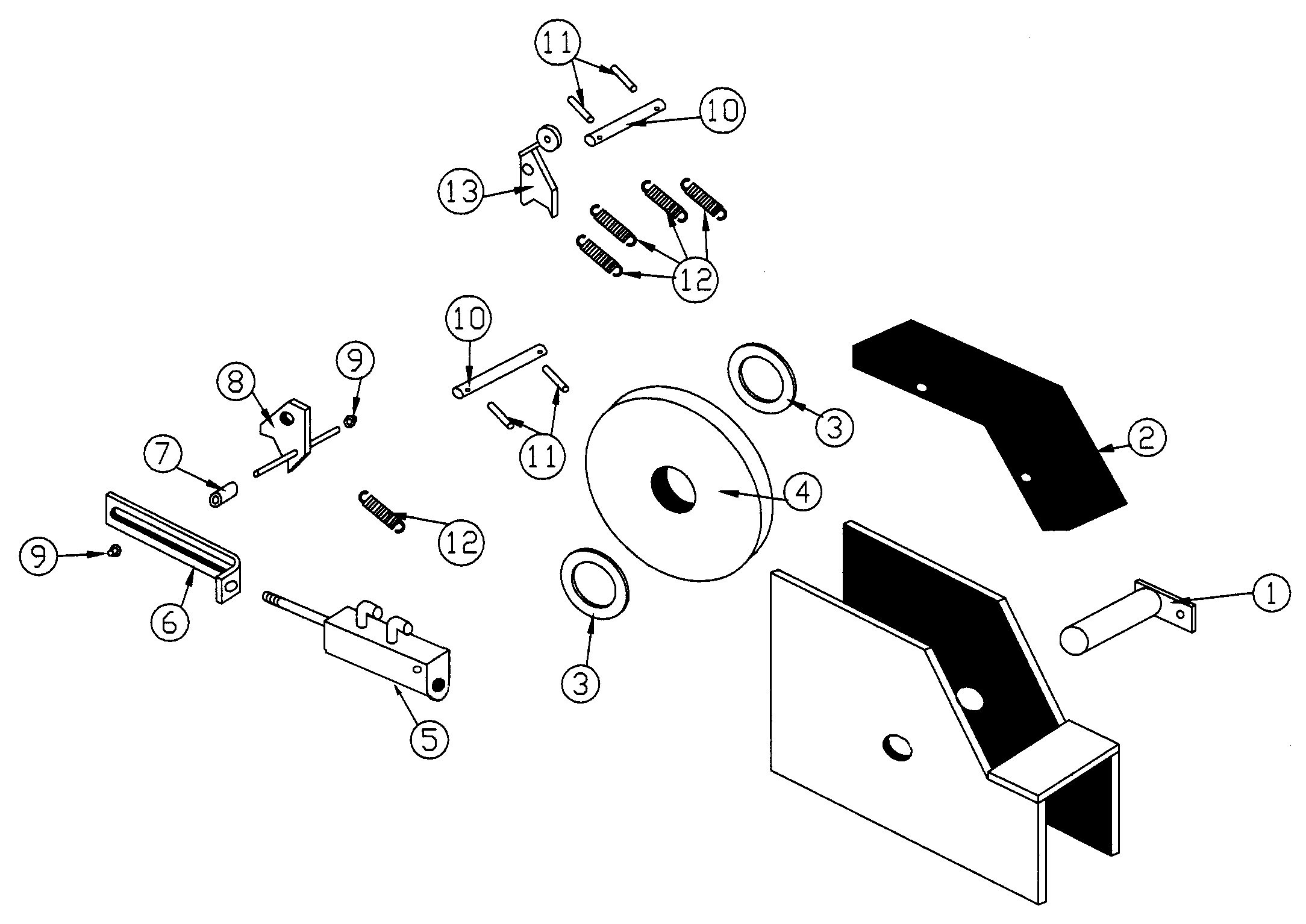

Parts for Rotary SM504 Lock Detail

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – SM504

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7513-88
FC5389-3
Sheave Pin
View
2
BH-7501-97
FC5389-32
Protective Cover
View
3
BH-7513-73
FC5388-10
Anti-Friction Washer
View
4
BH-7501-88
FC5389-2
Sheave
View
5
BH-7515-01
FA2273-20
4
Air Cylinder
View
6
BH-7516-47
FC5224-35
4
Slotted Bracket
View
7
BH-7517-50
FC5190-21
Spacer
View
8
BH-7513-92
FC5389-7
4
Lock Latch
View
9
F-JN-0250-28
1/4-28 Jam Nut
View
10
BH-7513-89
FC5389-33
4
Lock Shaft
View
11
F-SP-187-1250
16
3/16" x 1-1/4" Pin
12
BH-7513-97
FC5390-5
Spring
View
13
BH-7513-87
FC5389-12
4
Slack Cable Lock
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
