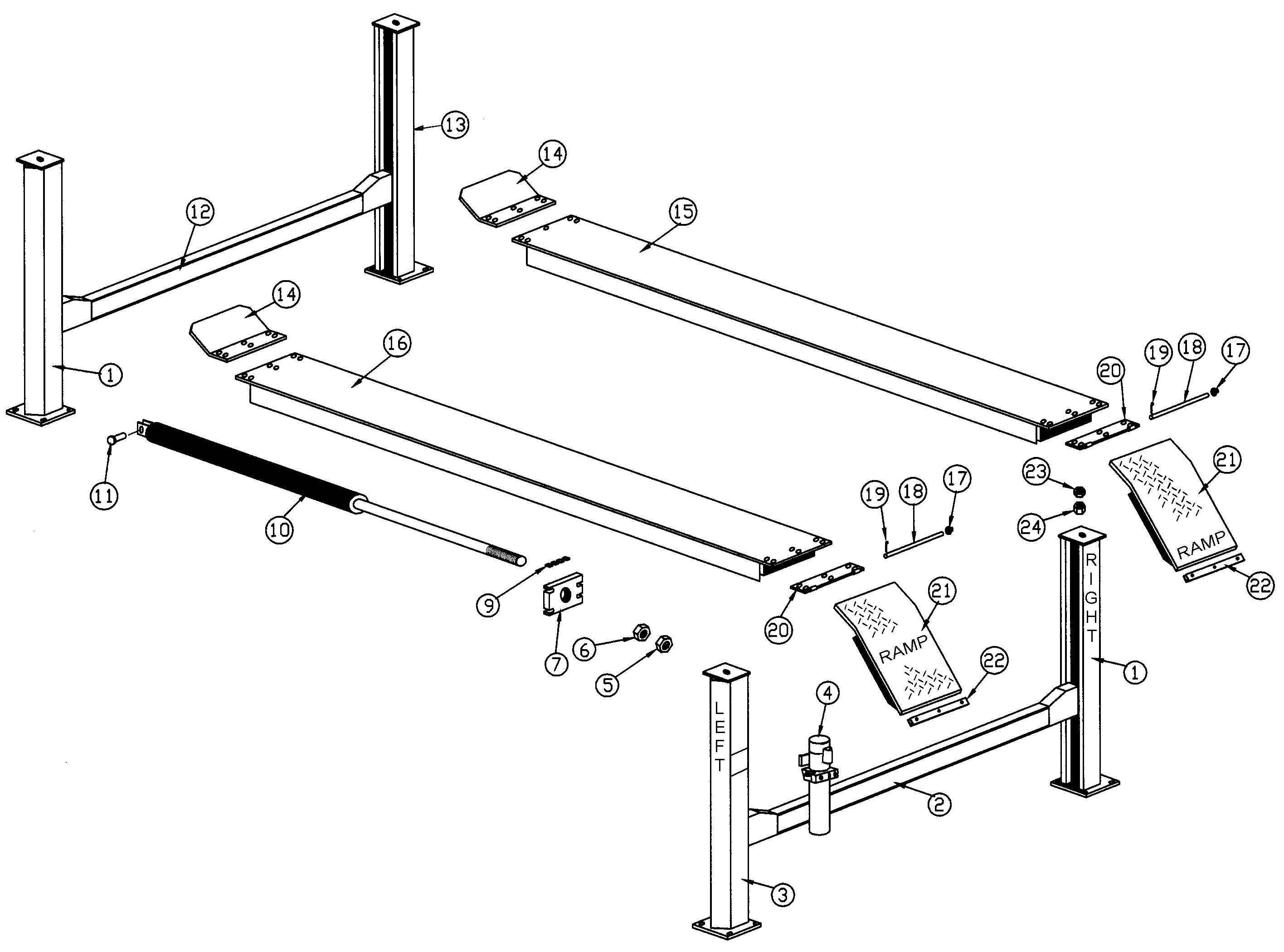

Parts for Rotary SM250

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – SM250

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
BH-7526-58
FC5222
2
Column
View
2*
Request Details
FC5224-1
1
Rear Cross Member
3*
BH-7526-61
FC5223
1
Power Unit Column
View
4
Request Details
P515
1
Power Unit
5
F-JN-1750-05
1
1-3/4-5 Jam Nut
6
F-HN-1750-05
1
1-3/4-5 Hex Nut
7
Request Details
FC5225-10
1
Cable Plate
9
BH-7525-49
FC5160-12
Cable Plate Slider
View
10
BH-7526-79
FC5225-15
1
Hydraulic Cylinder
View
11
BH-7527-87
FC5225-23
1
Cylinder Pin
View
12*
BH-7527-14
FC5226-1
1
Front Cross Member
View
13*
BH-7526-57
FC5221
1
Column
View
14
BH-7526-81
FC5225-42
2
Wheel Stop (bolt on)
View
15*
Request Details
FC5225-30
1
Right Runway (moveable)
16*
Request Details
FC5225-44
1
Left Runway
17
BH-7525-70
FC5179-4
2
5/8" Push Nut
View
18
BH-7526-80
FC5225-39
2
Hinge Pin
View
19
F-CP-156-1000
2
5/32" x 1" Cotter Pin
20
BH-7526-90
FC5225-49
2
Hinge Bracket
View
21
BH-7526-92
FC5225-36
2
Approach Ramp
View
22
BH-7508-78
FC134-33
2
20" Ramp Slide
View
22
BH-7508-78K
S100051
2
20" Ramp Slide KIT with Fasteners
View
23
F-JN-1125-07
1-1/8-7 Jam Nut
View
24
F-HN-1125-07
1-1/8-7 Hex Nut

* Custom order by request. Sample may be needed.
