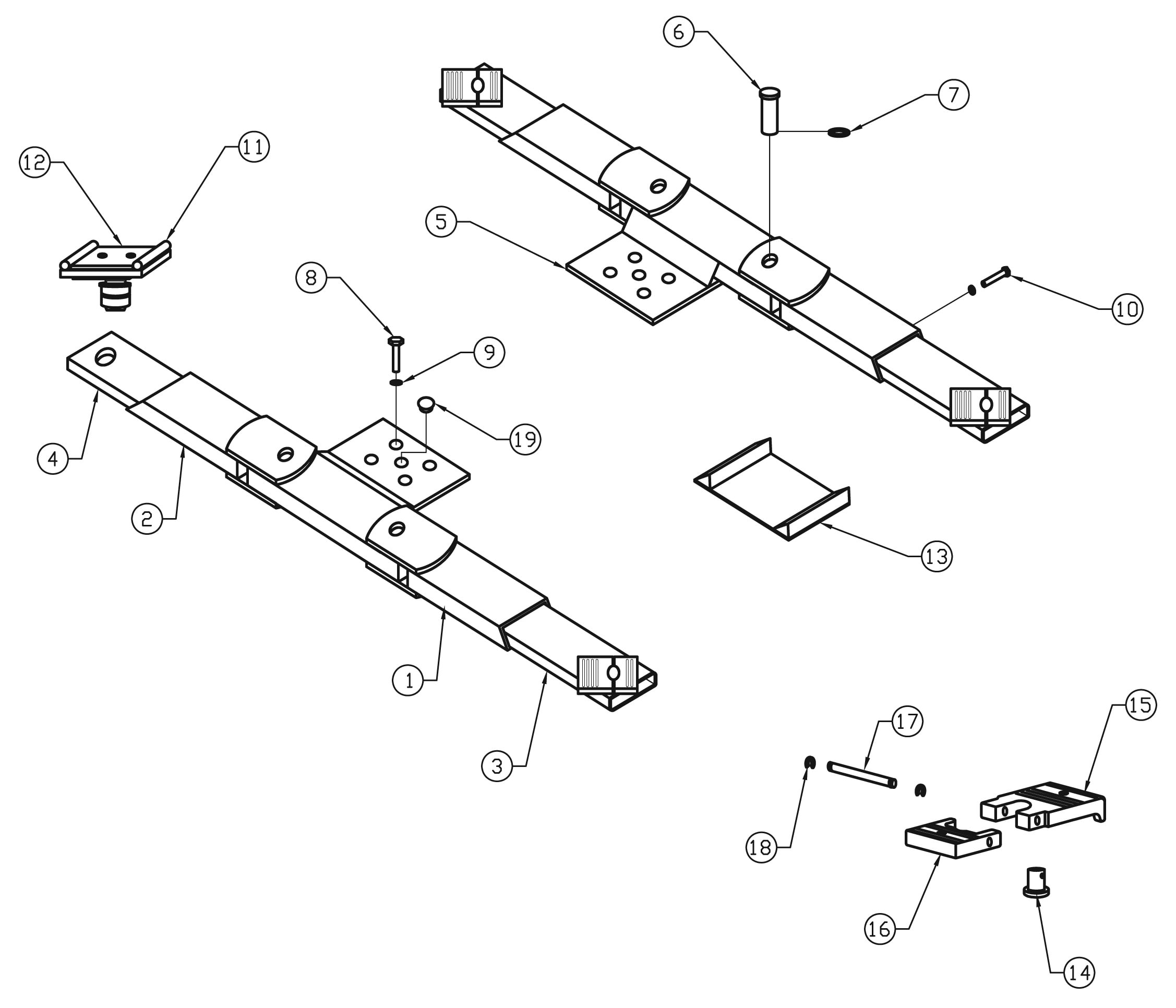

Parts for Rotary SL29 Superstructure

In Ground Side by Side Lifts – Rotary Lift – SL29

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Request Details
T120138
2 or 4
Long Outer Arm

2*
T120141
2 or 4
Short Outer Arm

3*
FJ7866-1
2 or 4
Long Inner Arm (for FJ6159 Rubber Pad Adapters)

3*
Request Details
T120189
2 or 4
Long Inner Arm (for FJ6161 Rubber Pad Adapters)

3*
FJ7150-2
2 or 4
Long Inner Arm (for Flip-Up Adapters)

4*
Request Details
T120143
2 or 4
Short Inner Arm (for FJ6159 Rubber Pad Adapters)

4*
Request Details
T120188
2 or 4
Short Inner Arm (for FJ6161 Rubber Pad Adapters)

4*
T120142
2 or 4
Short Inner Arm (for Flip-Up Adapters)

5*
Request Details
T120098
2
Yoke

6
T140114
4
Arm Pin

7
Request Details
T140115
4
Rotor Clip

8
40470
8
3/4-10NCx3 HHCS

9
F-ETLW-0750
40995
8
3/4" External Tooth Lockwasher

10
40155
4
3/8-16NCx5/8 HHCS

11
FJ6159
4
Adapter Assembly

12
FJ6158-4
4
Rubber Pad

13
FF729
1
15" Wide Reach Wheel Spotter

13
1
15" Wide Reach Dual Spotter

14
FJ79-6
4
Adapter Swivel Pin

15
FJ671-1
4
High Step Adapter

15
FJ697
4
Rubber Pad Adapter for Flip-Up

16
FJ671-2
4
Low Step Adapter

17
FJ671-3
4
Adapter Pin

18
FJ671-6
8
3/32" Hog Ring for 1/2" Shaft

19
Request Details
T140014
2
Plug Button

* Custom order by request. Sample may be needed.
