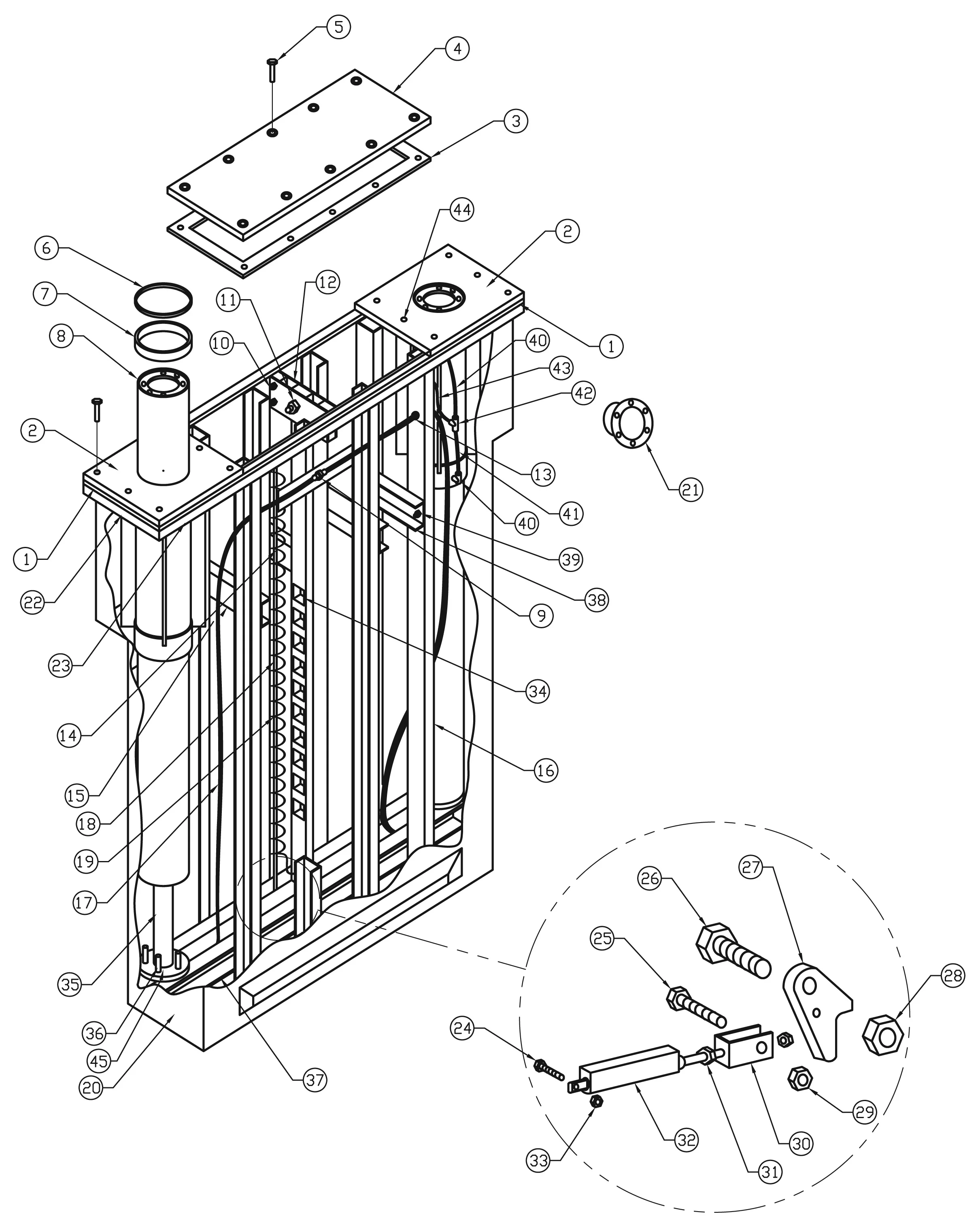

Parts for Rotary SL29

In Ground Side by Side Lifts – Rotary Lift – SL29

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
T140106
End Gasket

2
Request Details
T110071
Guide Assembly

3
T140105
Center Gasket

4
T120055
Cover Plate

5
Request Details
40268
1/2-13NC x2 Self Tap Flange Head Screw

6
T140076
Wiper

7
T140085
Bearing

7
T140147
Bearing

8
T120099
Plunger

9
T140010
Bulkhead Union "T" Adapter

10
40330
1/2-13NC x 2-1/2 HHCS

10
40680
1/2-13NC Hex Nut

10
40880
1/2" External Tooth Lockwasher

11
40497
7/8-9NC x 2-1/2 HHCS

11
40765
7/8-9NC Hex Nut

11
41070
7/8" External Tooth Lockwasher

12
T130003
Latch Bar Plate

13
Request Details
T120002
Grommet

14
40640
1/4-20NC Hex Jam Nut

15
T120121
Air Coil Rod Bracket Assembly

16
Request Details
T120180
Frame

17
T140100
Hydraulic Oil Hose

18
T130260
Air Coil Hose Rod

19
T140096
Recoil Hose 3/16"

20
T130016
Containment Tube

21
T140023
Uniseal

22
T120038
Concrete Anchor Frame (end section)

23
T120070
Concrete Anchor Frame (side section)

24
40115
1/4-20NCx1-1/4 HHCS

25
40110
1/4-20NCx1-1/2 HHCS

26
40456
3/4-10NCx5 HHCS

27
T130015
Locking Latch

28
40790
3/4-10NC Nylon Insert Locknut

29
40642
1/4-20NC Nylon Insert Locknut

30
T130014
Clevis

31
40648
1/4-28NF Hex Nut

32
T140062
Air Cylinder Kit

33
40642
1/4-20NC Nylon Insert Locknut

34
Request Details
T130270
Latch Bar

35
N342
Hydraulic Cylinder

35
Request Details
Bleeder Screw (specify manufacturer)

36
40313
1/2-13NCx2-1/2 Socket Head Cap Screw

36
40915
1/2" Helical Spring Lockwasher Plated

37
Request Details
T120177
Equalizer

38
Request Details
T130005
Short Tie Channel

39
40261
1/2-13NCx1 HHCS

39
40680
1/2-13NC Hex Nut

39
40880
1/2" External Tooth Lockwasher Plated

40
FA3134-6
Male Elbow Connector

41
T130189
1/4" Nylon Tube 9-1/2" Long

42
FC5225-46
Union Tee

43
T130191
1/4" Nylon Tube 11-1/8" Long

44
FC5225-47
Male Connector

44
T140007
Grease/Zerk Fitting

45
T130382ML
Load Pad

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
