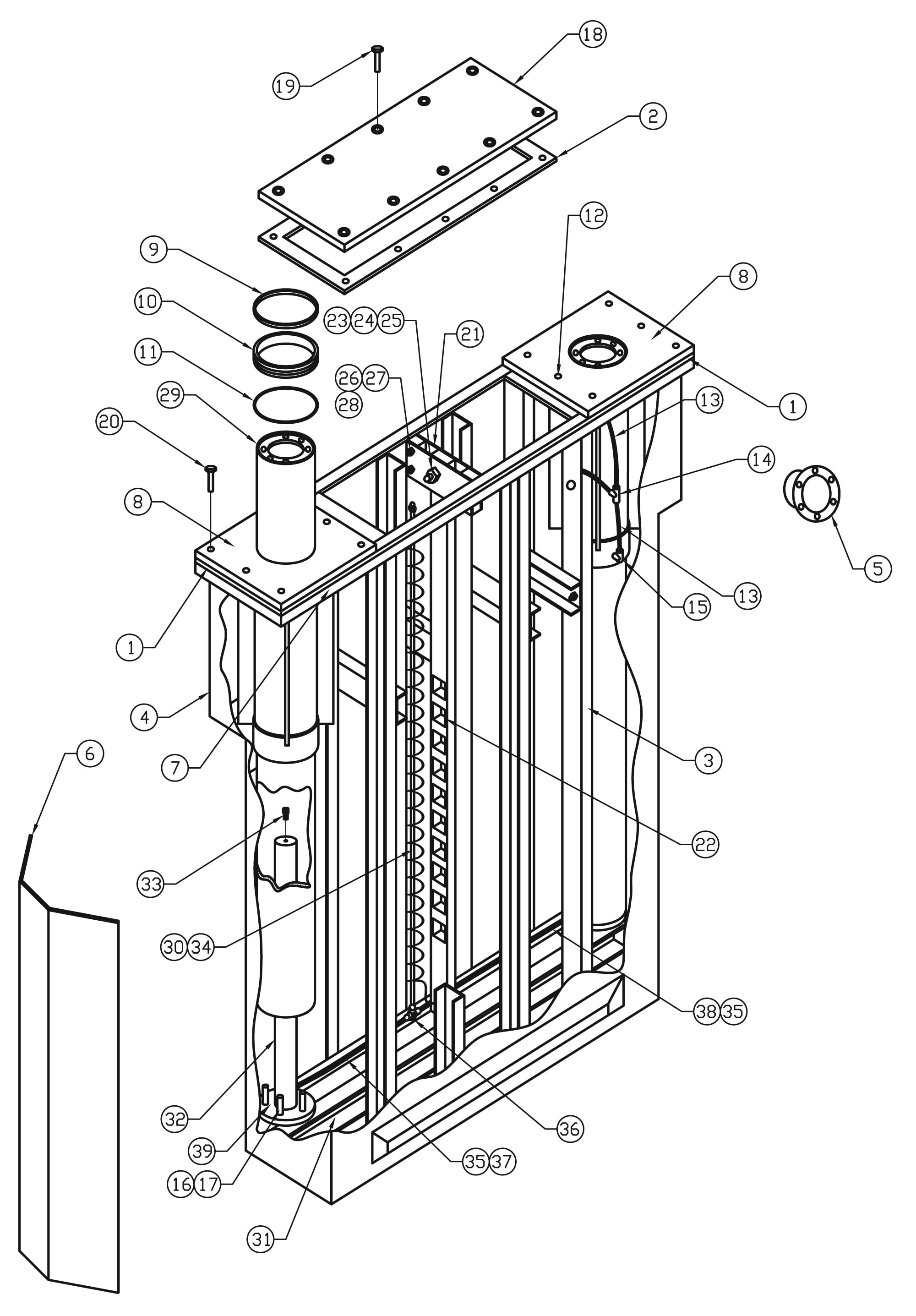

Parts for Rotary SL28

In Ground Side by Side Lifts – Rotary Lift – SL28 Series

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
BH-9785-92
T140020
Gasket End
View
2
BH-9785-91
T140019
Gasket Center
View
3
BH-9785-50
T120036
Frame
View
4
BH-9785-77
T130016
Containment Tube - Drilled
View
5
BH-7505-54
FA583
2" Flexible Boot
View
6
BH-9785-80
T130087
Side Sheet
View
7
Request Details
T120008
Concrete Anchor Frame
8
BH-9785-36
T110012
Guide Assembly
View
9
BH-9785-90
T140018
Wiper
View
10
BH-9785-89
T140016
Bearing
View
11
BH-9785-96
T140024
O-Ring
View
12
BH-9785-86
T140007
Grease/Zerk Fitting
View
13
BH-9785-34
T110007PC9
1/4" Nylon Tube
View
14
BH-7519-32
15107
Swivel Male Tee
View
15
BH-7519-49
15105
Male Elbow Connector
View
16
Request Details
40317
1/2-13NC x 2" Lg. Soc. Hd. Capscrew
17
F-ETLW-0500
40880
1/2" Ext. Lock Washer
View
18
Request Details
T120042
Cover Plate
19
F-HC-0500-13-2000
40315
1/2"-13NC x 2" Lg. HHCS
View
20
F-HC-0500-13-1500
40305
1/2"-13NC x 1-1/2" 12 pt. Capscrew
View
21
BH-9785-74
T130003
Latch Bar Plate
View
22
BH-9785-73
T130001
Latch Bar
View
23
F-HC-0875-09-3000
40497
7/8"-9NC x 3" Lg. HHCS
24
BH-7520-56
40765
7/8"-9NC Hex Nut
View
25
F-ETLW-0875
41070
7/8" Ext. Lock Washer
View
26
F-HC-0500-13-2500
40330
1/2"-13NC x 2-1/2" Lg. HHCS
View
27
F-HN-0500-13
40680
1/2"-13 NC Hex Nut
View
28
F-ETLW-0500
40880
1/2" Ext. Lock Washer
View
29
Request Details
T120017
Plunger
30
BH-9785-98
T140026
Hose
View
31
Request Details
T120006
Equalizer
32
BH-7508-53-OE
FJ7664
Hydraulic Cylinder
33
Request Details
Bleeder Screw (2 req'd)
34
BH-9786-00
T140028
PVC Pipe
View
35
BH-7511-05
FJ7352-3
Straight Adapter
View
36
BH-9786-04
T140029
Tee Adapter
View
37
BH-9785-97
T140025
25" Hose
View
38
BH-9785-99
T140027
34" Hose
View
39
BH-9786-46
T130382ML
Load Pad
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
