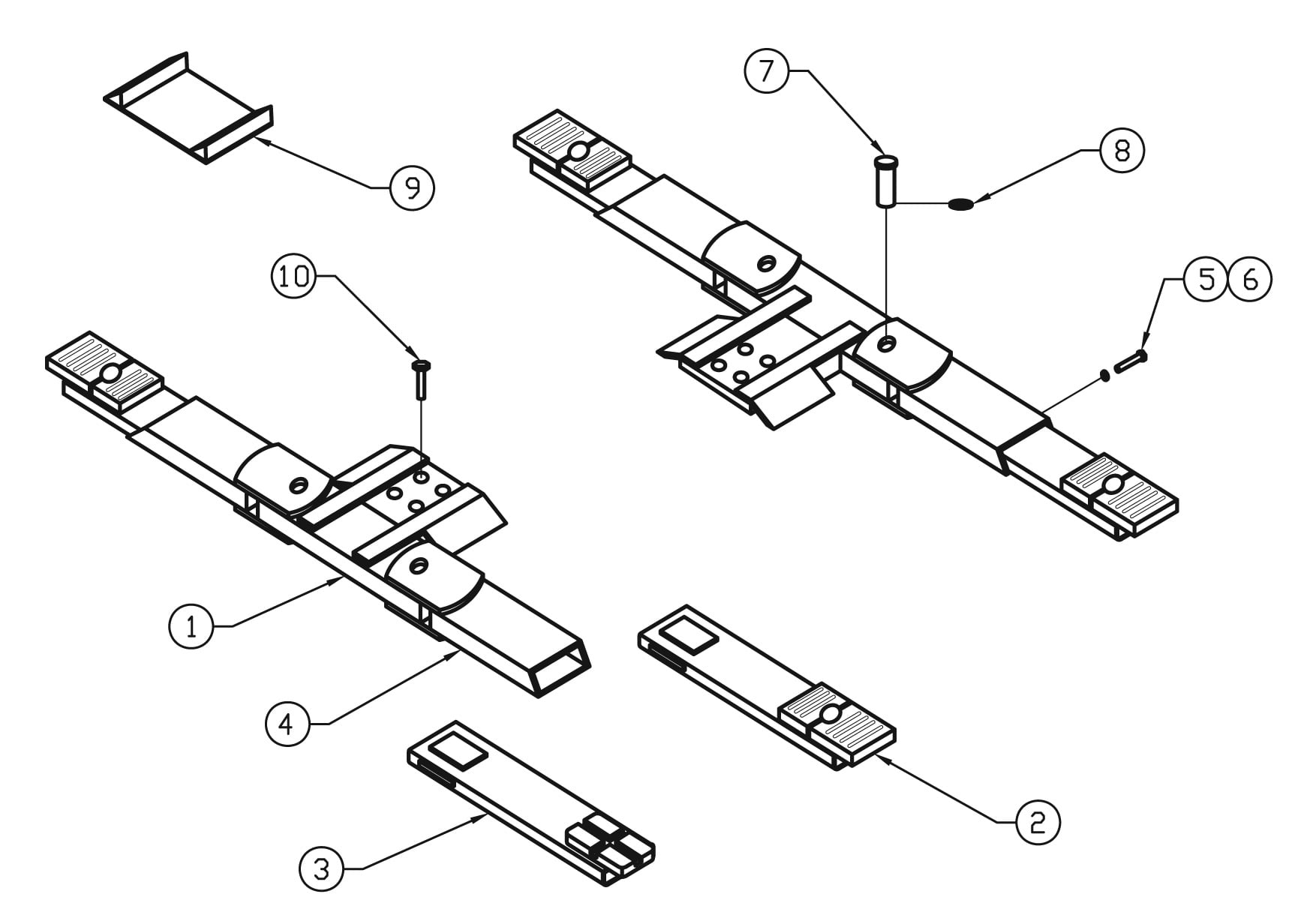

Parts for Rotary SL28 Superstructure

In Ground Side by Side Lifts – Rotary Lift – SL28 Series

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
Request Details
T120028
Yoke
2*
Request Details
T110009
Inner Tube with Flip-Up Adapter
3*
Request Details
T120029
Inner Tube for Rubber Pad Adapter
3*
BH-9785-35
T110008
Rubber Pad Adapter Assembly
View
4*
Request Details
T120027
Outer Tube
5
F-HC-0375-16-0625
40155
3/8"-16NC x 5/8" HHCS (4 Req'd)
View
6
F-ITLW-0375
40843
3/8" Int. Tooth Lock Washer (4 Req'd)
View
7
BH-9785-78
T130066
Arm Pin
View
8
Request Details
41404
Truarc #5100-187
9
BH-9701
FF729
1
15" Wide Reach Wheel Spotter
View
9
BH-9702
1
15" Wide Reach Dual Spotter
View
10
Request Details
40474
7/8"-9NC x 2-1/2" Soc. FL C'Sunk Hd. CS (8 Req'd)

* Custom order by request. Sample may be needed.
