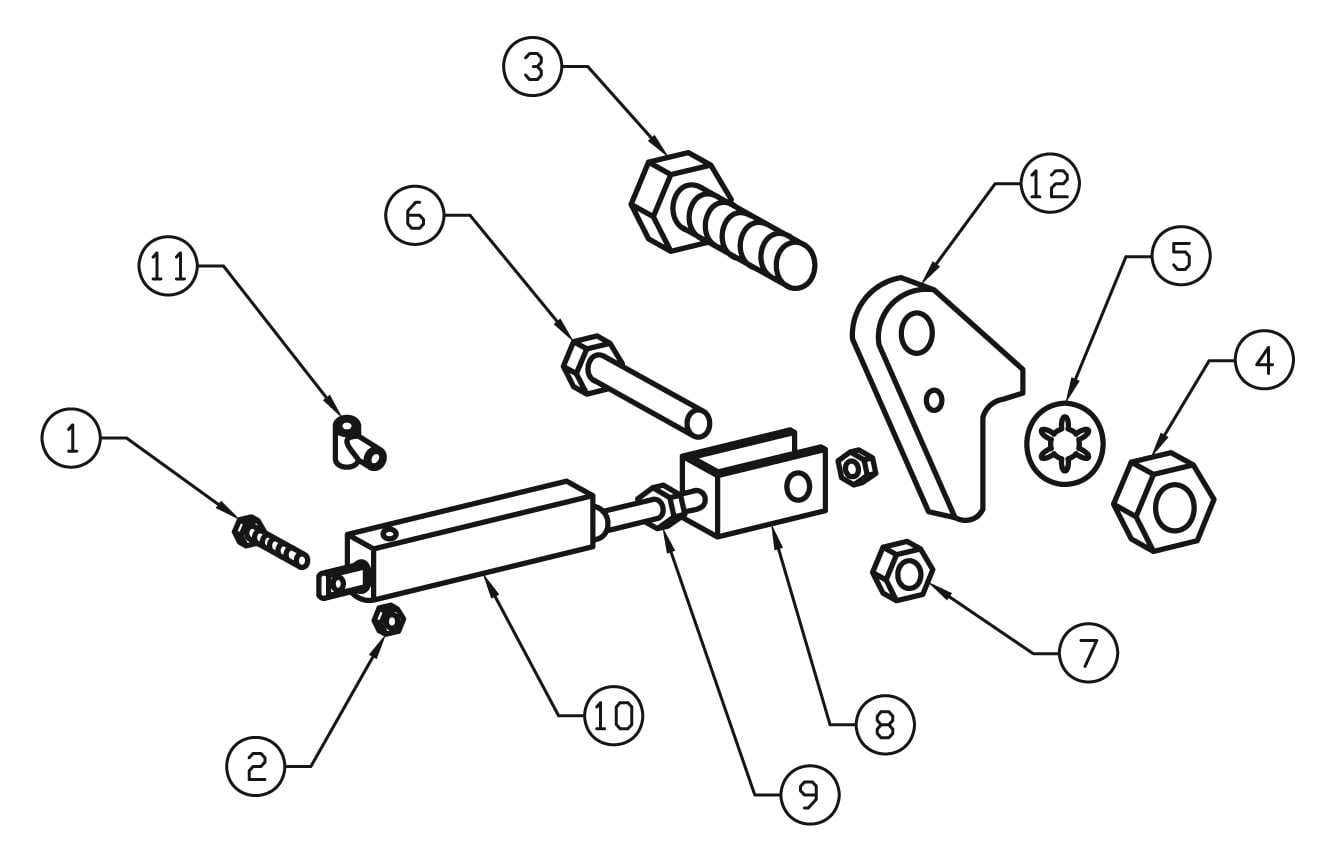

Parts for Rotary SL28 Hydraulic and Air Line Connection

In Ground Side by Side Lifts – Rotary Lift – SL28 Series

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
BH-9786-01
T140030
Air Coil Hose
View
2
BH-9785-88
T140013
Hydraulic Hose
View
3
BH-9785-73
T130001
Locking Latch Bar
View
4
BH-7518-97
FC147-1
Brass Anchor Connector
View
5
Request Details
AQ69PS
90° Elbow
6
BH-9786-05
T140031
U-Bolt w/ 1/4-20 Hex Nuts
View
7
BH-9785-81
T130093
Hose Rod Support
View
8
F-HC-0875-09-3000
40497
7/8"-9NC x 3" Lg. HHCS
9
BH-7520-56
40765
7/8"-9 Hex Nut
View
10
F-ETLW-0875
41070
7/8" Ext. Lock Washer
View
