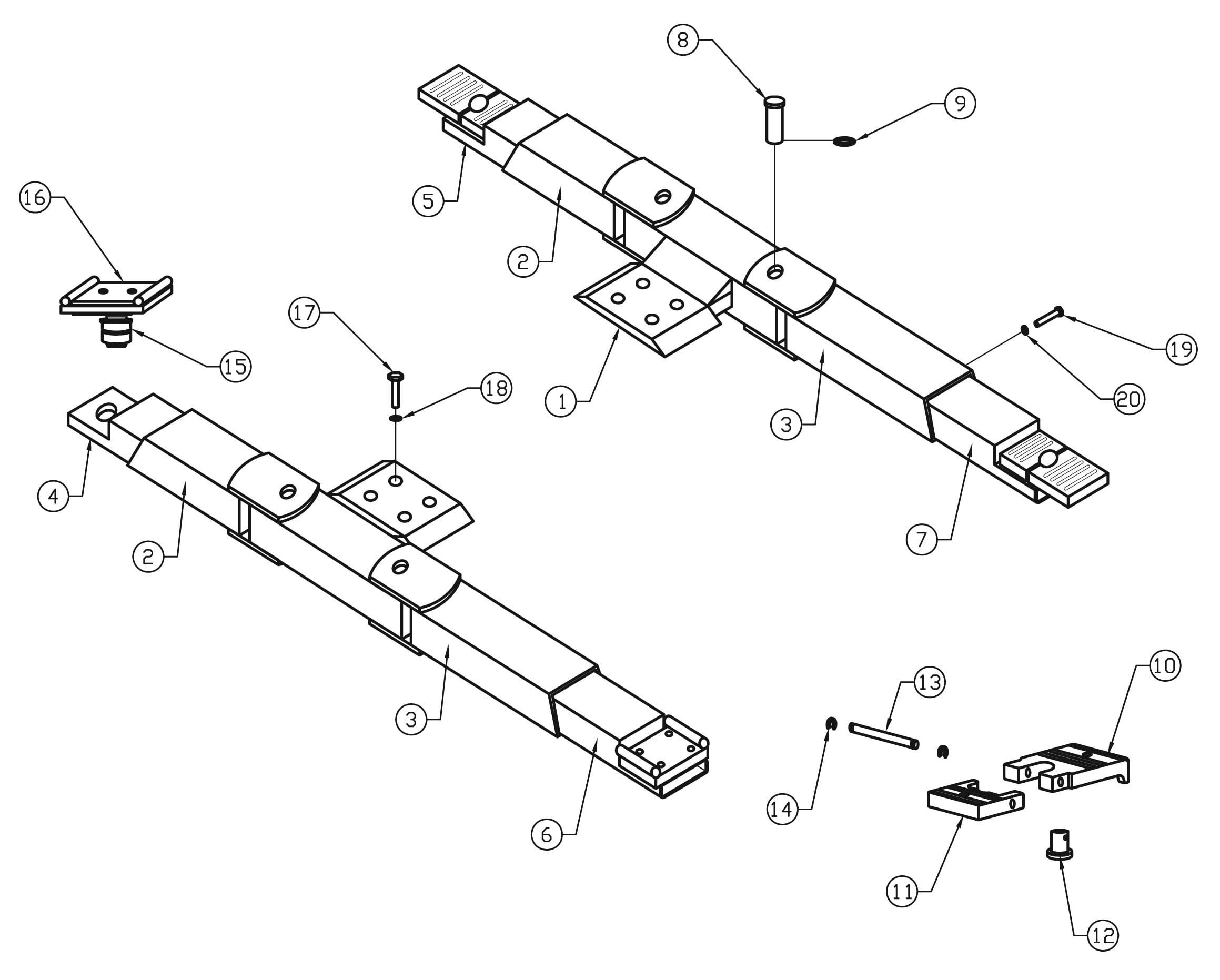

Parts for Rotary SL210 Superstructure

In Ground Side by Side Lifts – Rotary Lift – SL210

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
Request Details
T120221
2
Yoke
2*
Request Details
T120218
2
**Short Outer Arm
3*
BH-9784-94
T120217
2
**Long Outer Arm - Yellow
View
3*
BH-9784-94A
T120217
2
**Long Outer Arm - Blue
View
4*
Request Details
T120224
2
**Short Inner Arm (Rubber Pad Adapters)
5*
BH-9786-43
T120220
2
**Short Inner Arm Assy. (Flip-Up Adapters) - Yellow
View
5*
BH-9786-43A
T120220
2
**Short Inner Arm Assy. (Flip-Up Adapters) - Blue
View
6*
Request Details
T120223
2
**Long Inner Arm (Rubber Pad Adptrs)
7*
BH-9786-42
T120219
2
**Long Inner Arm Assy. (Flip-Up Adapters) - Blue
View
7*
BH-9786-42A
T120219
2
**Long Inner Arm Assy. (Flip-Up Adapters) - Yellow
View
8
BH-9784-22
T130451
4
Arm Pin
View
9
Request Details
T140168
4
Arm Pin Retaining Ring
10
BH-7530-02
FJ6177
4
High Step Adapter
View
11
BH-7530-03
FJ6178
4
Low Step Adapter
View
12
BH-9755-25L
FJ79-6
4
Adapter Swivel Pin
View
13
BH-7533-60
FJ6179
4
Adapter Pin
View
14
BH-9755-26
FJ671-6
8
3/32" Hog Ring for 1/2" Shaft
View
15
BH-7536-96
FJ6182
4
Adapter Assembly
View
16
BH-7536-92P
FJ6158-4
4
Rubber Pad
View
17
F-HC-0875-09-3500
40498
8
7/8-9NC x 3-1/2" HHCS
18
F-ETLW-0875
41072
8
7/8" Ext. Tooth Lockwasher, Plated
View
19
F-HC-0375-16-0625
40155
4
3/8-16NC x 5/8" HHCS
View
20
F-ITLW-0375
40843
4
3/8" Internal Tooth Lockwasher
View

* Custom order by request. Sample may be needed.

** Short Arm Distance = 23-7/8" Ref.

** Long Arm Distance = 28-1/8" Ref.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
