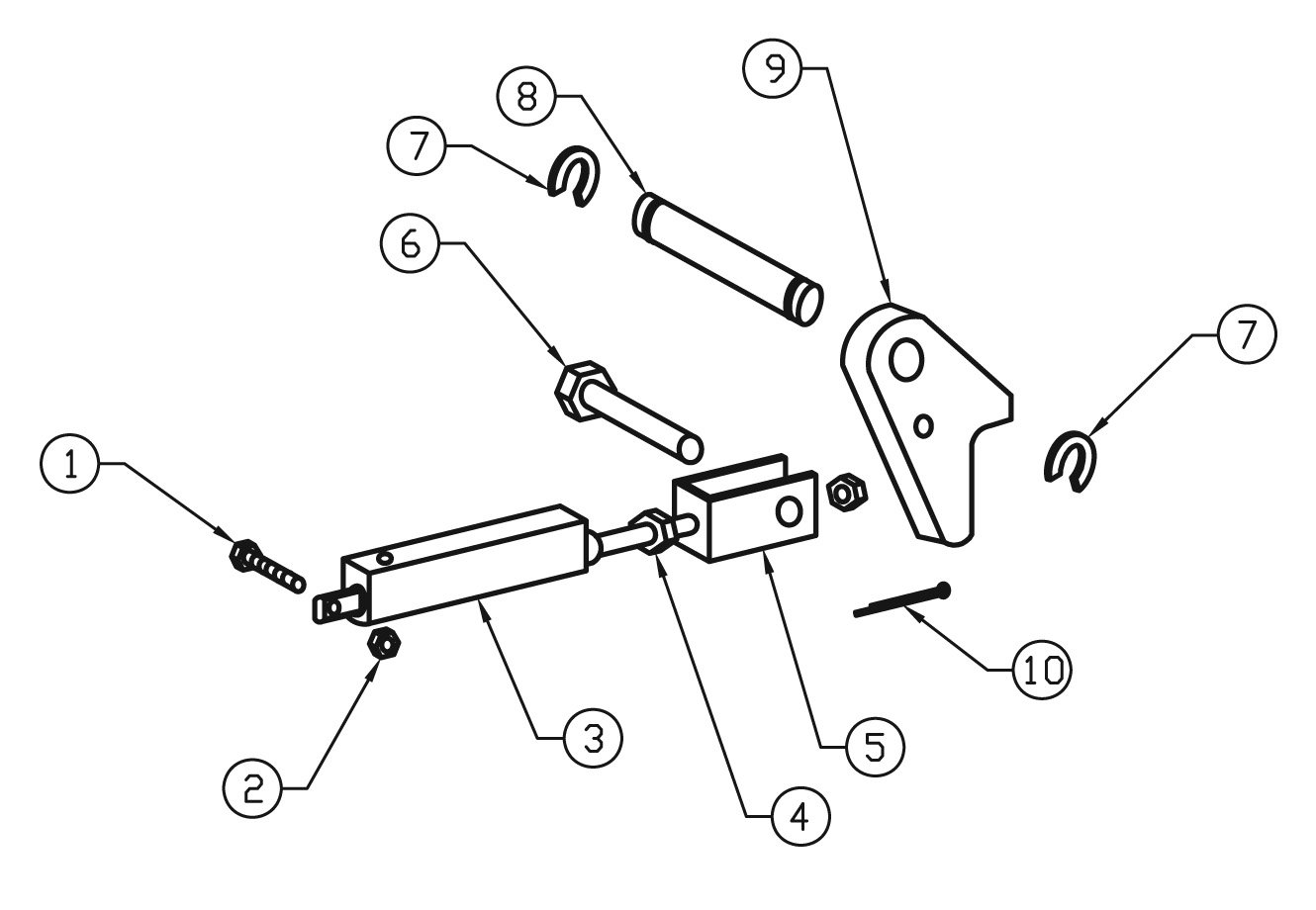

Parts for Rotary SL210 Lock Detail

In Ground Side by Side Lifts – Rotary Lift – SL210

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-9786-49
40115
1
1/4-20NC x 1-1/4" HHCS, Gr. 2
View
2
F-NL-0250-20
40642
1
1/4-20NC Hex Nylon Insert Locknut
View
3
BH-9786-10
T140062
1
Air Cylinder
View
4
F-HN-0250-28
40648
2
1/4-28NF Hex Nut, Plated
View
5
BH-9784-30
T130349
1
Clevis
View
6
BH-9784-37
T140135
1
Latch Clevis Pin, Plated
View
7
BH-7537-59A
41417
2
Retaining Ring TRUARC #5304-125
View
8
BH-9784-31
T130350
1
Latch Shaft
View
9
BH-9784-33
T130348
1
Locking Latch
View
10
F-CP-062-0750
41606
1
1/16" x 3/4" Lg. Cotter Pin
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
