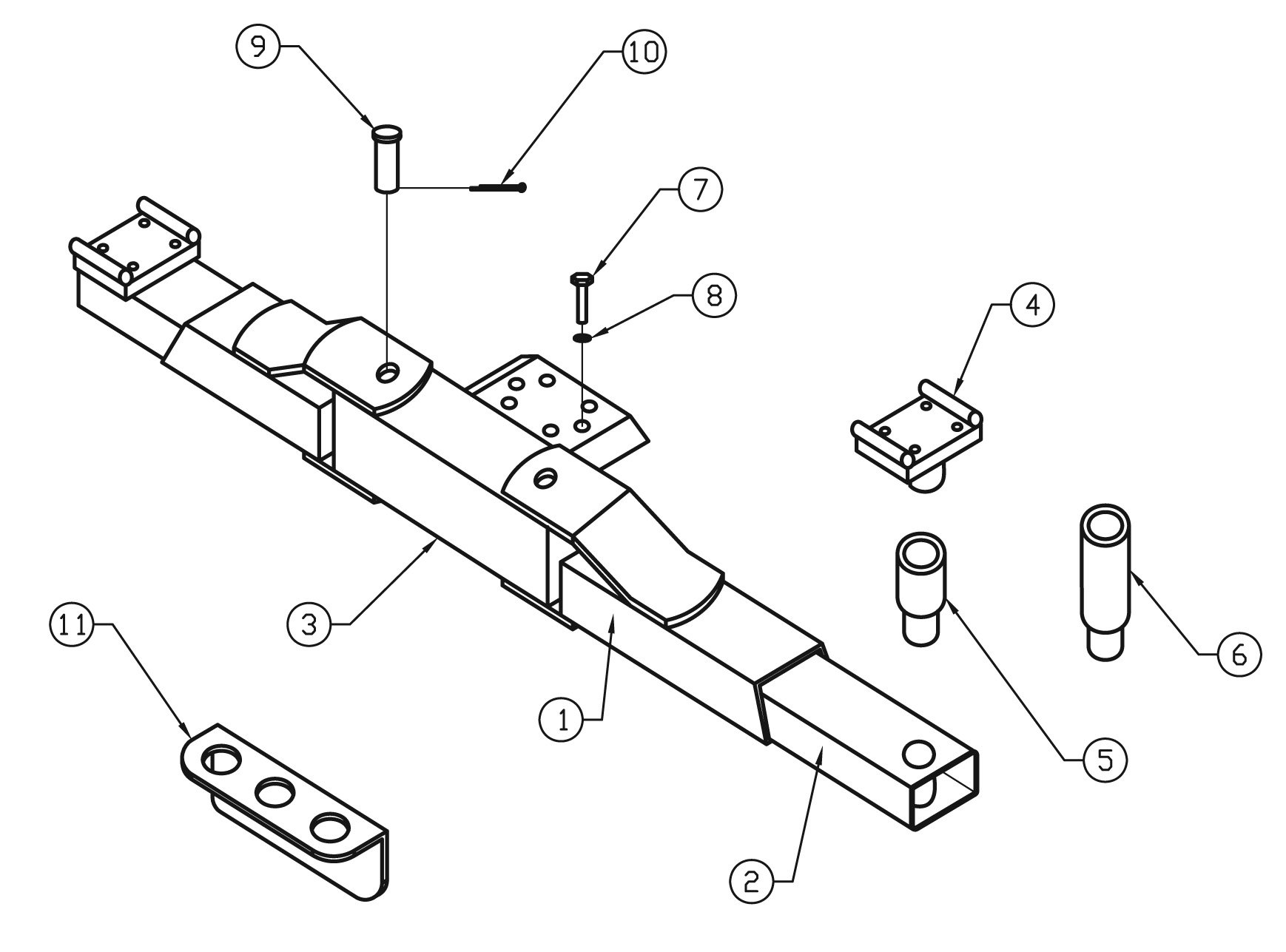

Parts for Rotary SL210 Arm Detail

In Ground Side by Side Lifts – Rotary Lift – SL210

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
BH-9786-39
T120151
4
Outer Arm - Blue
View
1*
BH-9786-39A
T120151
4
Outer Arm - Red
View
2*
BH-9784-36
T120150
4
Inner Arm
View
3*
Request Details
T120152
2
Yoke Weldment
4
BH-7536-92
FJ6158
4
Adapter Assembly
View
5
BH-7533-96
FJ6143
4
4" Extension
View
6
BH-7533-97
FJ6144
2
8" Extension
View
7
F-HC-0875-09-3500
40498
12
7/8-9NC x 3-1/2" HHCS
8
F-ETLW-0875
41072
12
7/8" External Tooth Lockwasher, Plated
View
9
BH-9786-40
T120153
4
Arm Pin
View
10
F-CP-187-3000
41253
4
3/16" x 3" Cotter Pin
View
11
BH-7500-95
FJ6145
2
Extension Rack
View

* Custom order by request. Sample may be needed.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
