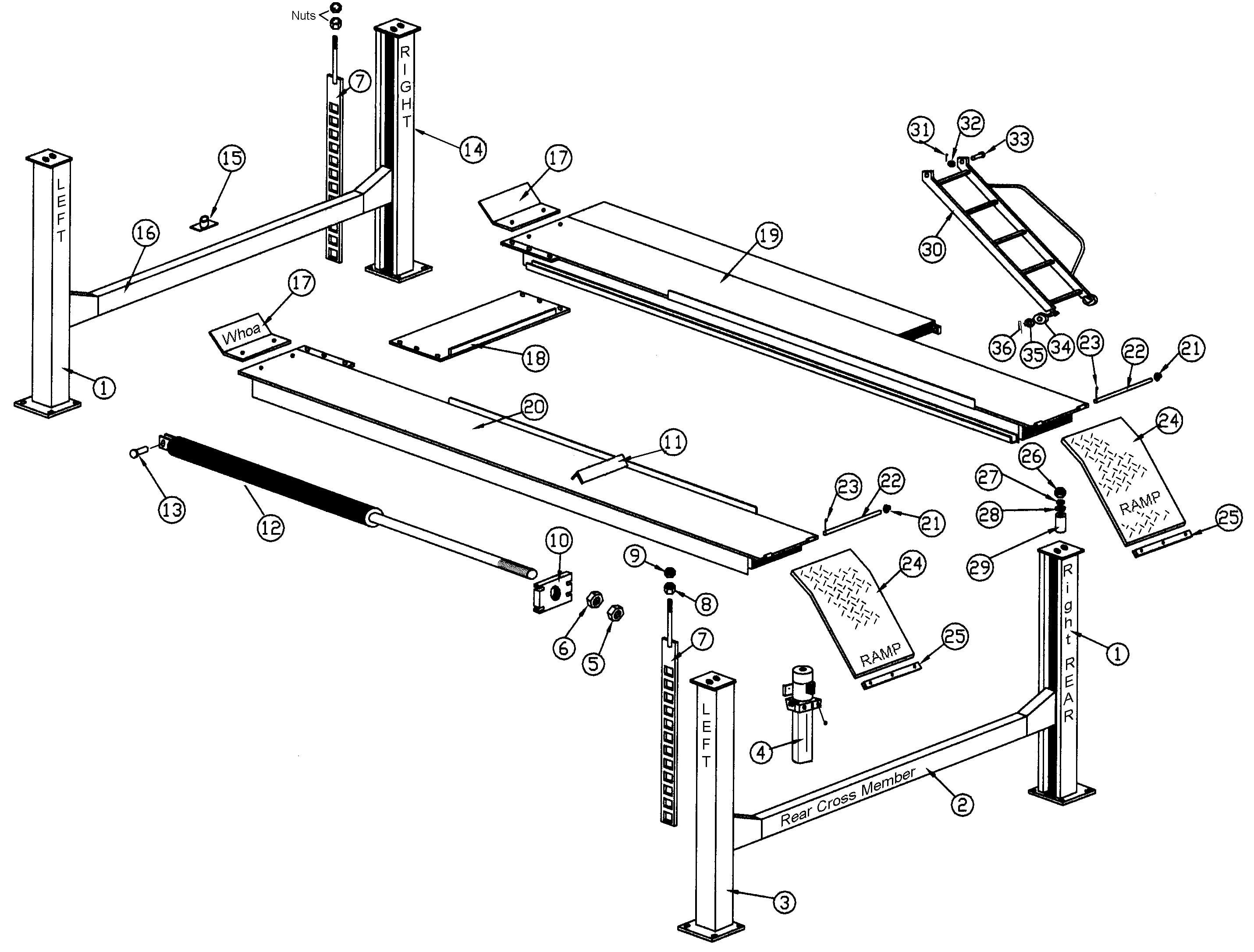

Parts for Rotary QL4P100

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – QL4P100

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
BH-7530-86
FC5704
Column
View
2*
Request Details
FC5706-1
1
Front Cross Member
3*
BH-7530-86
FC5705
1
Power Unit Column
View
4
Request Details
P714
1
Power Unit
5
F-JN-0875-09
1
7/8-9 Jam Nut
View
6
F-HN-0875-09
1
7/8-9 Hex Nut
View
7
BH-7530-74
FC5704-3
4
Lock Ladder
View
8
F-JN-0750-10
4
3/4-10 Jam Nut
View
9
F-HN-0750-10
4
3/4-10 Hex Nut
View
10**
BH-7529-20
FC543
1
Cable Pull Bar
View
11
BH-7508-89
FC320
1
Wheel Chock
View
12
BH-7517-18
FC5797
1
Hydraulic Cylinder
View
12
BH-7531-42
FC5797-TH
1
Cylinder Seal Kit (Texas Hyd)
View
13
BH-7513-43
FC5346-1
1
Cylinder Clevis
View
14*
BH-7530-86
FC5707
Column
View
15
BH-7529-69
FC5459-1
1
Rail Support for QL4P100 only
View
16*
Request Details
Front Cross Member
17
BH-7524-66
FC342
2
Wheel Stop QL4P100
View
18
BH-7527-70
FC5239
1
Center Platform
View
19*
Request Details
1
Right Runway
20*
Request Details
1
Left Runway
21
BH-7525-70
FC5179-4
5/8" Push Nut
View
22
BH-7517-78
FC134-99
2
Hinge Pin
View
23
F-CP-156-1000
5/32" x 1" Cotter Pin
24
BH-7508-68
FC134-12
2
Approach Ramp
View
25
BH-7508-78
FC134-33
20" Ramp Slide
View
25
BH-7508-78K
S100051
20" Ramp Slide KIT with Fasteners
View
26
F-JN-0875-09
4
7/8-9 Jam Nut
View
27
F-HN-0875-09
4
7/8-9 Hex Nut
View
28
F-FW-0875-USS
4
7/8" Flatwasher
View
29
BH-7509-04
FC5287
4
Spacer Tube
View
30
Request Details
1
Ladder
31
F-CP-125-1000
1/8" x 1" Cotter Pin
View
32
F-FW-0500-USS
1/2" Flatwasher
View
33
BH-7527-63
FC5238-8
2
Clevis Pin
View
34
BH-7510-67
FJ2271-1
2
Ladder Roller 4"
View
35
F-FW-0500-SAE
1/2" Flatwasher
View
36
F-CP-125-1000
1/8" x 1" Cotter Pin
View

* Custom order by request. Sample may be needed.

**Replacing Item 10: BH-7529-26 (OEM #S120068) - Retainer Weld and BH-7529-27 (OEM #S120075) - Pull Bar Drill
