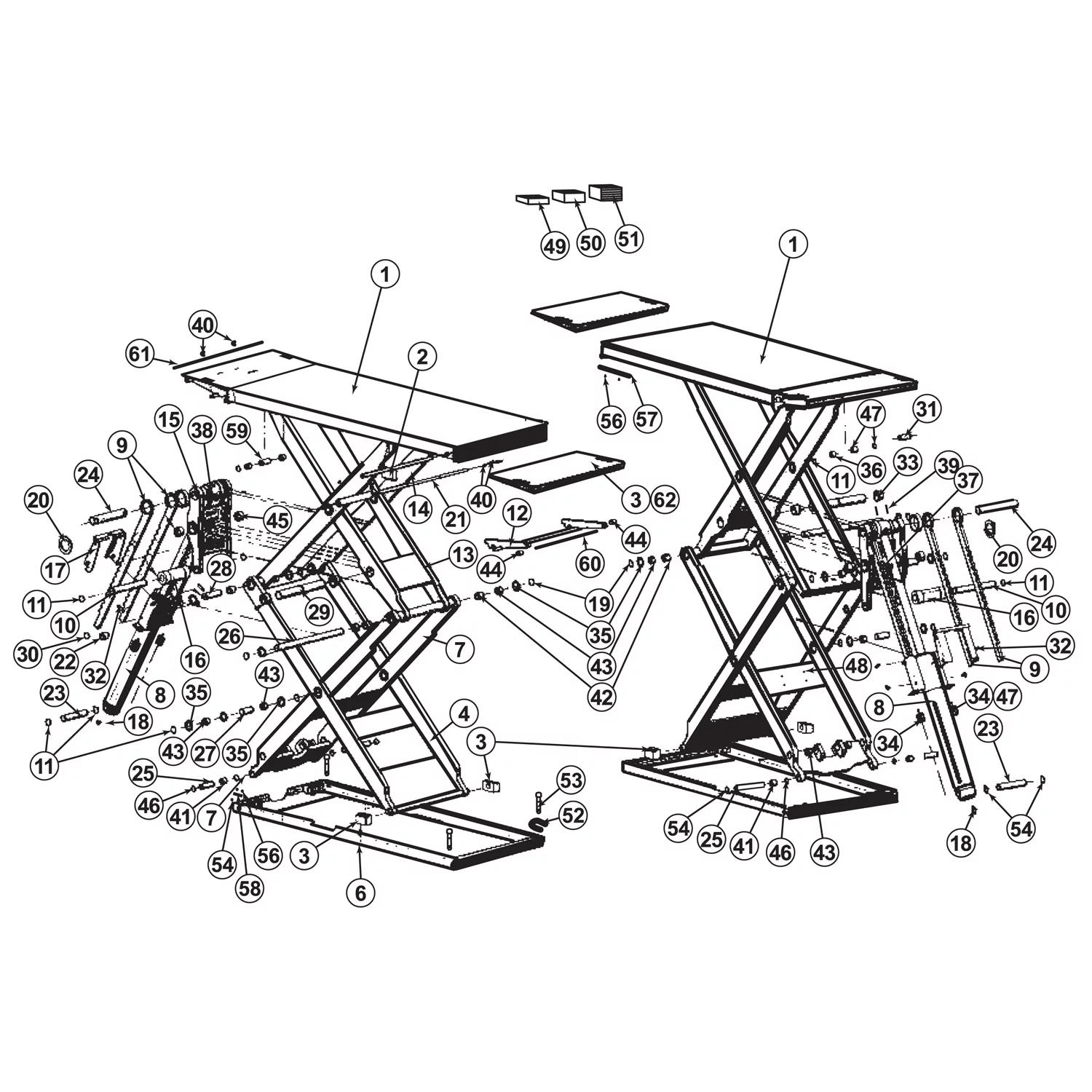

Parts for Rotary Lift RLP77

Above Ground / Surface Mount Scissor Lifts – Rotary Lift – RLP77

Repair parts for Rotary Lifts Model RLP77 are available from SVI.

SVI is the #1 Source for repair parts for Rotary Lifts. Whether you need lock release parts, hydraulic hoses, hydraulic cylinders, seal kits, power units, height extensions and pads, rubber blocks, wheel spotters, safety lock bars or another part for your surface-mount Rotary Scissor Lift, SVI has what you need. We offer excellent pricing, top-notch customer service and fast shipping with in-stock items that usually ship out same day.

Also see other related parts breakdowns:
Parts for Rotary Lift RLP77 Control Console

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM#
QTY
Description

1
XX120001
Platform Weldment

2
XX140008
Slider Block - Upper

3
XX110003
Ramp Assembly

4
XX120004
Scissor Leg Weldment

5
XX140007
Slider Block - Lower

6
XX120002
Base Weldment

7
XX120003
Scissor Leg Weldment

8
XX140005
2
Cylinder

9
XX120023
Lift Locks Weldment

10
XX130214
Pin

11
B63-25
Snap Ring

12
XX120008
Ramp Support Weldment

13
XX120005
Scissor Leg Weldment

14
XX120006
Scissor Leg Weldment

15
XX110001
2
Kicker Assembly

16
XX140056
Pin

17
XX120024
Lock Jaw Bar Weldment

18
XX140037
Velocity Fuse

19
XG130007
Slotted Round Locknut M20x1.0

20
XX140029
Washer, Thin Plastic

21
XX130064
Ramp Roller Shaft

22
XX140053Y
Bearing, 20 mm dia. X 20 mm Long

23
XX130082
Cylinder Pin - Lower

24
XX130086
Cylinder Pin - Upper

25
XX130080
Long Pin

26
XX140023
Long Pin

27
XX140022
Lower Center Pin

28
XX140024
Short Pin

29
XX140025
Kicker Center Pin

30
XX140054
Washer, Thin Plastic

31
XX140021
Upper Center Pin

32
XX130210
Cushion Weldment

33
XX140062
Bearing, 25 dia. X 30 long

34
ML50-1605
Lock Release Air Cylinder

35
K35-7010
Washer Ø19

36
B41-24
Washer Ø24

37
B60-20
Snap Ring

38
B30-10
Nut

39
B201-10X65
Hex Bolt M10 x 65

40
B61-12
E-Clip 14mm

41
XX140014Y
Bearing 25 mm dia. x 25 mm long

42
XX140019Y
Bearing 25 mm dia. x 50 mm long

43
XX140015Y
Bearing 25 mm dia. x 35 mm long

44
XX130236
Small Roller

45
XX140055
Slider Block

47
B35-5
Nut M5

48
B25-6X12
Screw M6 x 12

49
SB700071Y
Rubber Adapter Block 1/2"

50
FJ2427
4
Rubber Adapter Block 1-1/2"

51
FJ2428
Rubber Adapter Block 3"

52
30400-1025
Shim Assortment (150 pieces)

53
FJ1009
Anchor Bolt

54
B21-6X10
Hex Socket Set Screw Flat Head M6 x 10

55
B22-6X10
Head Socket Head Screw Point Head M6 x 10

56
B26-5X10
Socket Flat Head Countersunk MS M5 x 10

57
XX140047
Platform Bumper

58
XX140048
Platform Rail

59
XX130081
Long Pin

60
XX140009
Ramp Roller

61
XX130063
Ramp Roller Shaft

62
XX120007
Ramp Weldment

KIT
XX100011
2
Replacement Bearing Kit for one Platform

KIT
XX100007
2
Replacement Pin Kit for one Platform

KIT
XX100017
1
Replacement Slider Kit for Entire Lift

KIT
XX100010
1
Replacement Ramp Roller Kit for four Ramps

KIT
XX100008
1
Replacement Roller Kit for two Platforms

--
XX120009
Kicker Weld

--
XX130036
Roller Pin

--
XX140060
Bearing 20 mm dia. X 15 mm Long

--
XX140020
Roller

--
XX140059
Bearing 25 mm dia. 30 mm long

--
XX140004
Roller

--
XX140068Y
Bearing 25 mm dia. X 30 mm long

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
