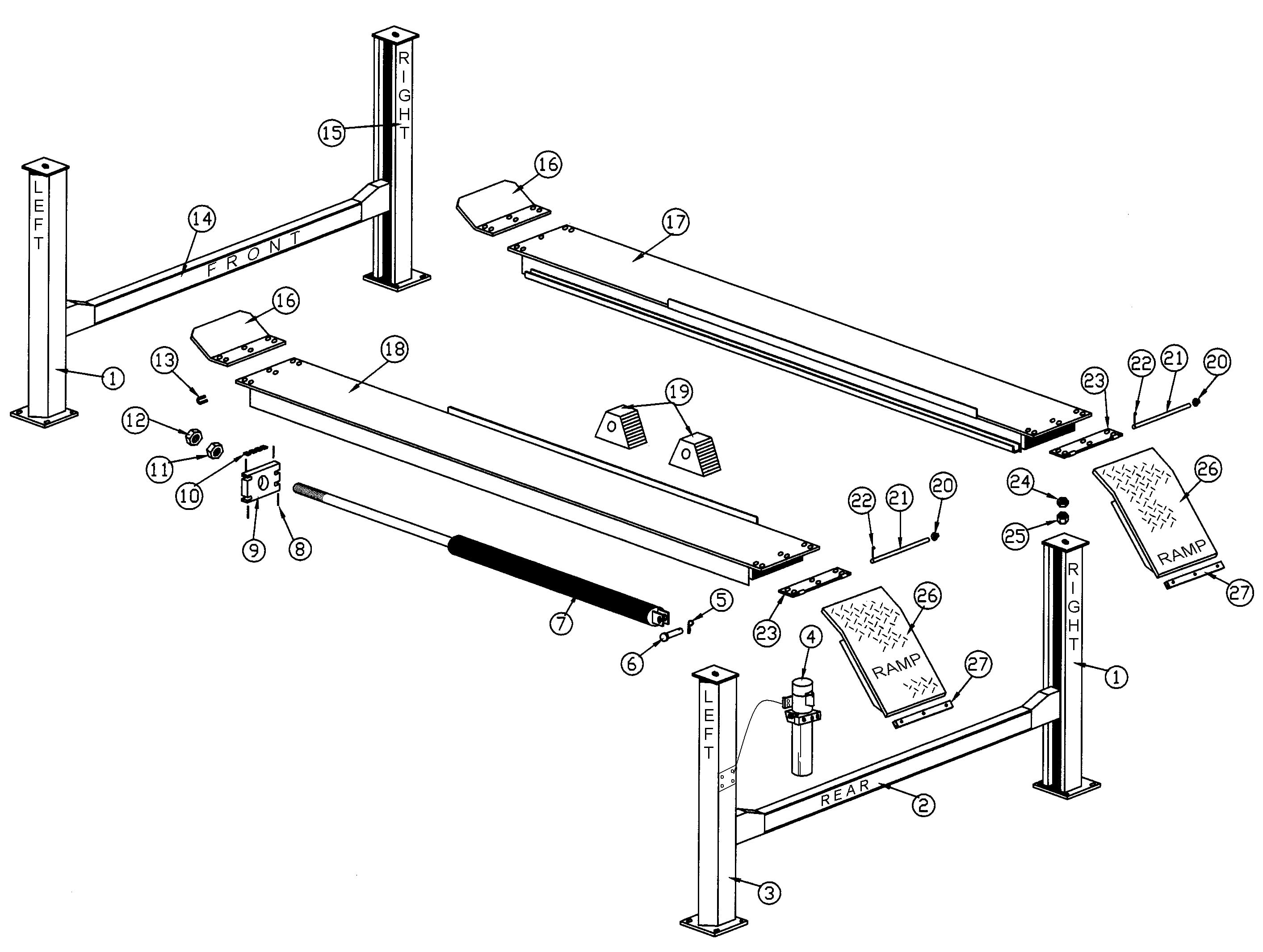

Parts for Rotary FLS25

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – FLS25

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
FC5455
2
Column

2*
Request Details
FC5256-1
1
Rear Cross Member

3*
FC5456
1
Power Unit Column

4
Request Details
1
Power Unit

5
41253
1
3/16" x 3" Cotter Pin

6
Request Details
FC5225-23
1
Clevis Pin

7
FC5225-15
1
Hydraulic Cylinder

8
F-SRP-0375-3250
14464
4
3/8" x 3-1/4" Spirol Roll Pin

9
FC5225-18
1
Cable Plate

10
FC5160-12
4
Cable Plate Slider

11
F-HN-1750-05
1
1-3/4" x 5 Hex Nut

12
F-JN-1750-05
1
1-3/4" x 5 Jam Nut

13
FJ716-6
1/16" Blue Shim

14*
Request Details
FC5255-1
1
Front Cross Member

15*
FC5454
1
Column

16
FC5225-42
2
Wheel Chock

17*
Request Details
FC5254-9
1
Right Runway

18*
Request Details
FC5254
1
Left Runway

19
FC337
4
Adjustable Wheel Stop

20
FC5179-4
5/8" Push Nut

21
FC5225-43
2
Hinge Pin

22
F-CP-156-1000
41202
2
5/32" x 1" Cotter Pin

23
FC5225-49
1
Hinge Plate

24
F-JN-1750-05
1
1-3/4" x 5 Jam Nut

25
F-HN-1750-05
1
1-3/4" x 5 Hex Nut

26
Request Details
FC5254-14
2
Approach Ramp

27
FC134-33
2
20" Ramp Slide

27
S100051
2
20" Ramp Slide KIT with Fasteners

* Custom order by request. Sample may be needed.
