Parts for Rotary FLS12

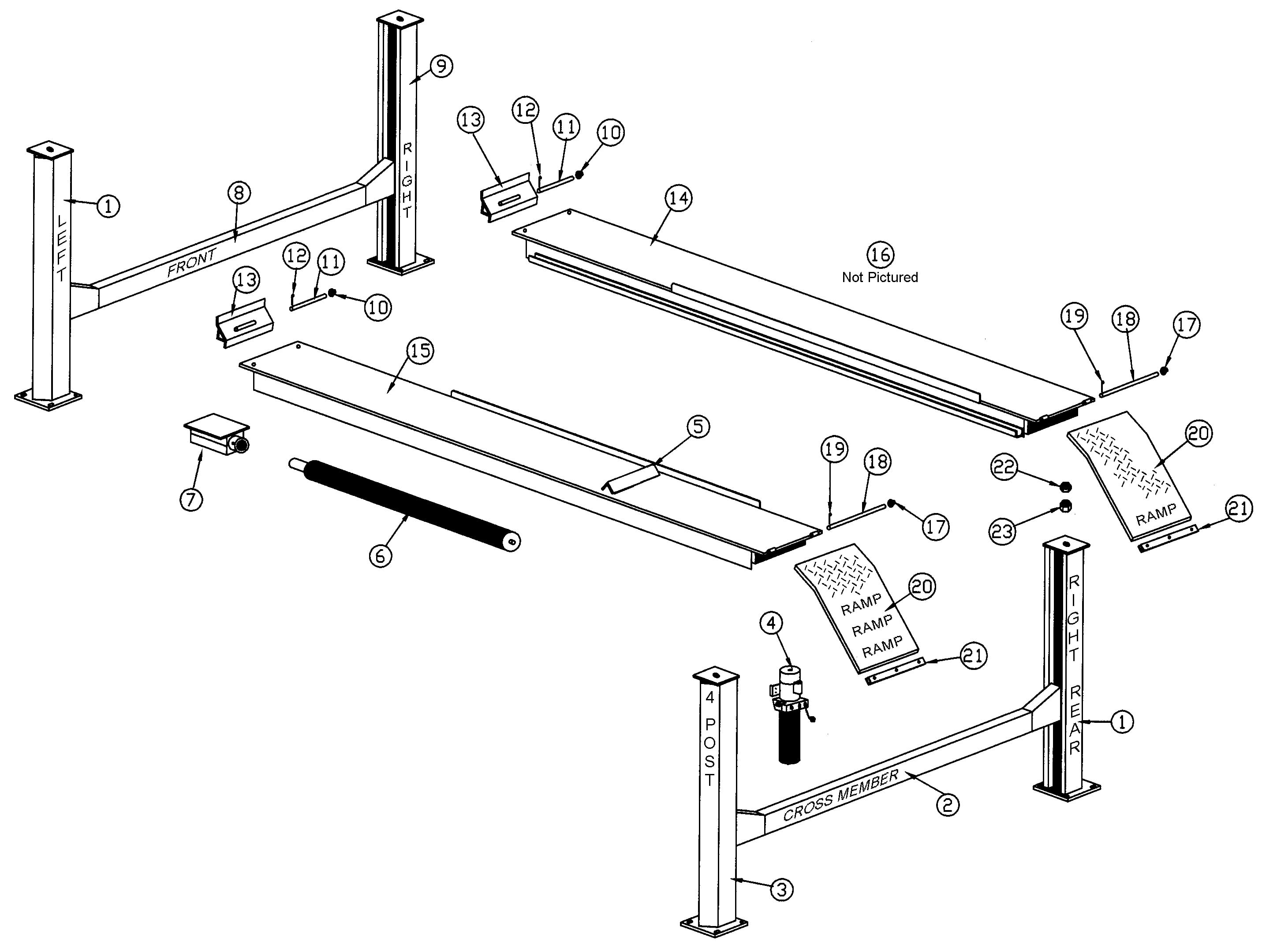

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – FLS12

Repair parts for Rotary Lifts Model FLS12 are available from SVI.

SVI is the your best choice for repair parts for Rotary Lifts. Whether you need chain, chain rollers, cables, sheaves, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
FC5452
2
Column

2*
Request Details
FC5152
1
Rear Cross Member

3*
FC5453
1
Power Unit Column

4
FA782
1
Power Unit

5
FC320
4
Wheel Chock

6
FC5155
1
Hydraulic Cylinder

6
FC5155-10
1
Cylinder Seal Kit

7*
Request Details
FC5160-10
1
Cylinder Rod End

8*
Request Details
FC5151
1
Front Cross Member

9*
Request Details
FC5451
1
Column

10
FC5179-4
2
5/8" Push Nut

11
FC134-99
2
Hinge Pin

12
F-CP-156-1000
2
5/32" x 1" Cotter Pin

13
FC134-13
2
Front Wheel Stop

14*
Request Details
FC5154
1
Right Runway

15*
Request Details
FC5153
1
Left Runway

16*
Request Details
FC5179-7
1
Handle

17
FC5179-4
2
5/8" Push Nut

18
FC134-99
2
Hinge Pin

19
F-CP-156-1000
2
5/32" x 1" Cotter Pin

20
Request Details
FC5180-1
2
Approach Ramp

21
FC134-33
2
20" Ramp Slide

21
S100051
2
20" Ramp Slide KIT with Fasteners

22
4
7/8-9 Jam Nut

23
4
7/8-9 Hex Nut

* Custom order by request. Sample may be needed.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
