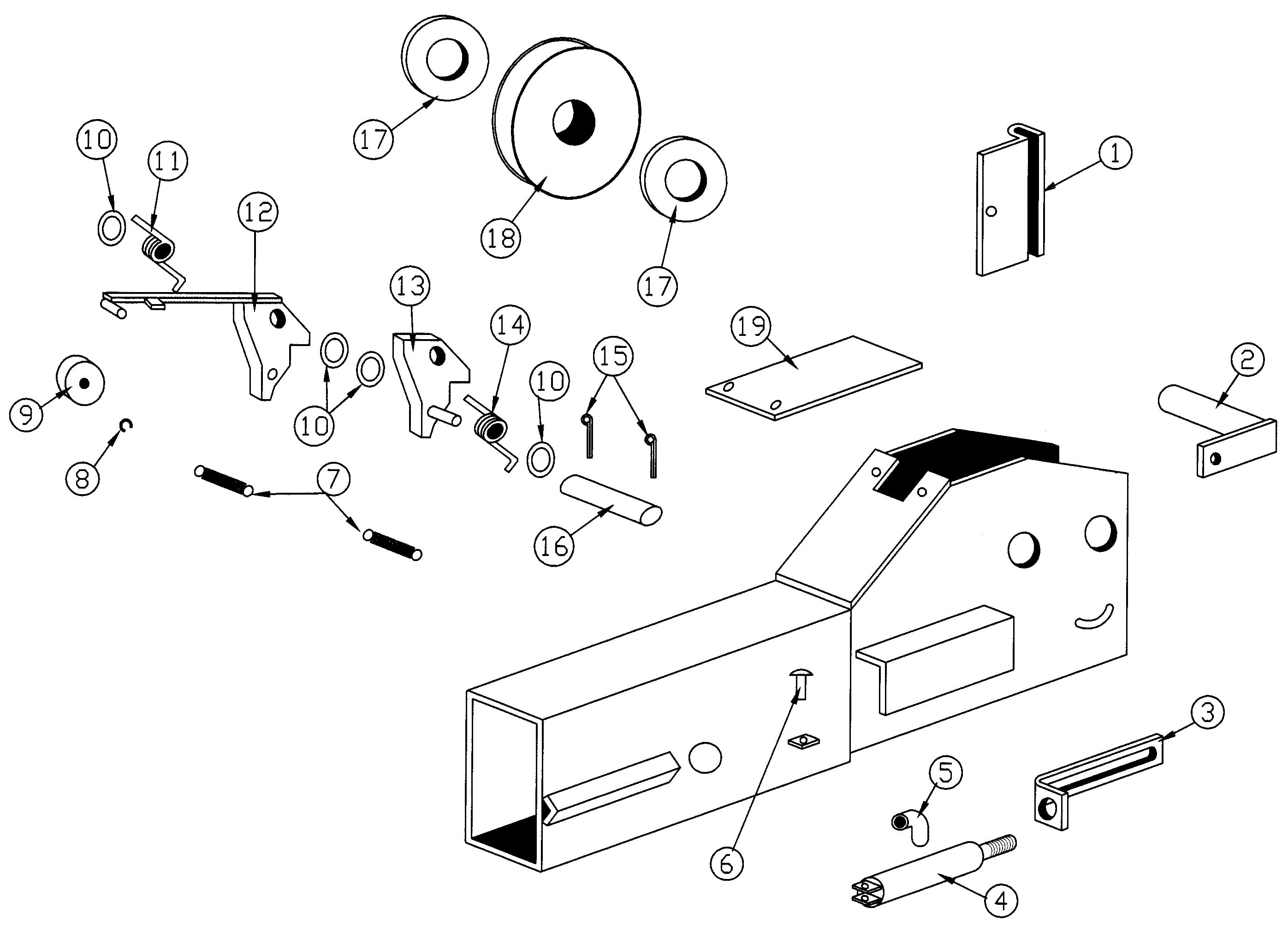

Parts for Rotary FLS12 Lock Detail

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – FLS12

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7508-99
FC5301-97
4
Slider
View
2
BH-7501-39
FC522-34
4
Sheave Pin
View
3
BH-7501-40
FC522-5
4
Cable Sheave
View
4
BH-7501-53
FA2230-1
4
Air Cylinder
View
5
BH-7501-56
FA5224-39
4
Elbow
View
6
BH-7507-06
FA2230-12
4
Clevis Pin
View
7
BH-7501-61
FC522-25
8
Spring
View
8
Request Details
41410
4
3/8" Waldes Truarc Klip Ring
9
BH-7517-24
FC553-21
4
Sheave
View
10
BH-7510-15
FC5301-98
8
Spacer
View
11
BH-7501-59R
FC5224-63
4
Right Hand Spring
View
12
BH-7501-54/54R
2
RH/LH Slack Cable Lock Kit
View
13
BH-7501-60/60A
1
RH & LH Lock Pawl Kit
View
14
BH-7501-59
FC5224-62
4
Left Hand Spring
View
15
F-CP-125-1250
8
1/8" x 1-1/4" Cotter Pin
View
16
BH-7501-55
FC5224-17
4
Lock Shaft
View
17
BH-7501-42S
FC522-69
Anti-Friction Washer .060 thick
View
18
BH-7501-40
FC522-5
4
Cable Sheave
View
19
BH-7516-76
FC553-10
4
Rubber Cover
View

Anti-Friction Washer .030 thick
