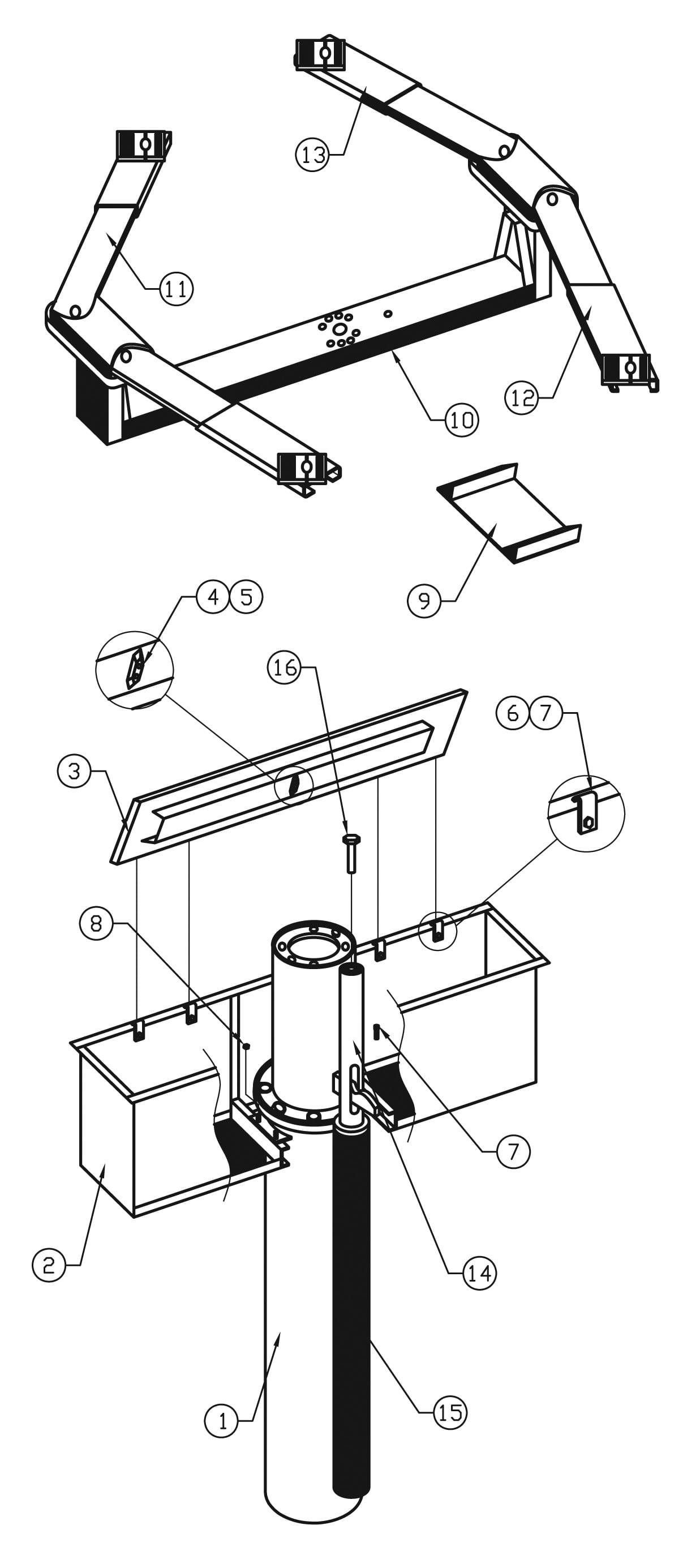

Parts for Rotary DRT10H MKVI

In Ground Single Post Lifts – Rotary Lift – DRT10H MKVI

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
JK1154-1
DRT10A - Semi-Hydraulic

1
JK1155-1
DRT10H - Full Hydraulic

2
FJ45
Housing

3
FJ45-4
Door Assembly

4
FF634-9
Rub Bar

4
FF634-30
Rub Bar Kit

5
call with length
2
#8-32 Type T Pan Head Screw

6
FF634-7
Door Retainer / Hinge

7
12
3/8 -16 x 5/8 Hex Head Capscrew

8
4
1/2-13 Hex Nut

9
FF729
1
15" Wide Reach Wheel Spotter

9
SVI Exclusive
1
15" Wide Reach Dual Spotter

10*
Request Details
FJ2201
Yoke

10*
Request Details
FJ2124
Yoke

11*
FJ2199
Arm Assembly

11*
FJ2125
Arm Assembly (MKII Original Part #)

12
FJ693
Rear Adapter Assembly

12
FJ672
Rear Adapter Ass'y (MKII Orig. Part #)

13
FJ692
Front Adapter Assembly

13
FJ671
Front Adapter Ass'y (MKII Orig. Part #)

14
SVI Exclusive
1
Multi-Position Safety Leg

14
FA2111
Top Release Safety Leg

15
FA2158
Safety Leg Guide Tube

15
FA218
Outer Pipe MKII

16
3/4-10 x 3-1/2Hex Head Capscrew

* Custom order by request. Sample may be needed.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
