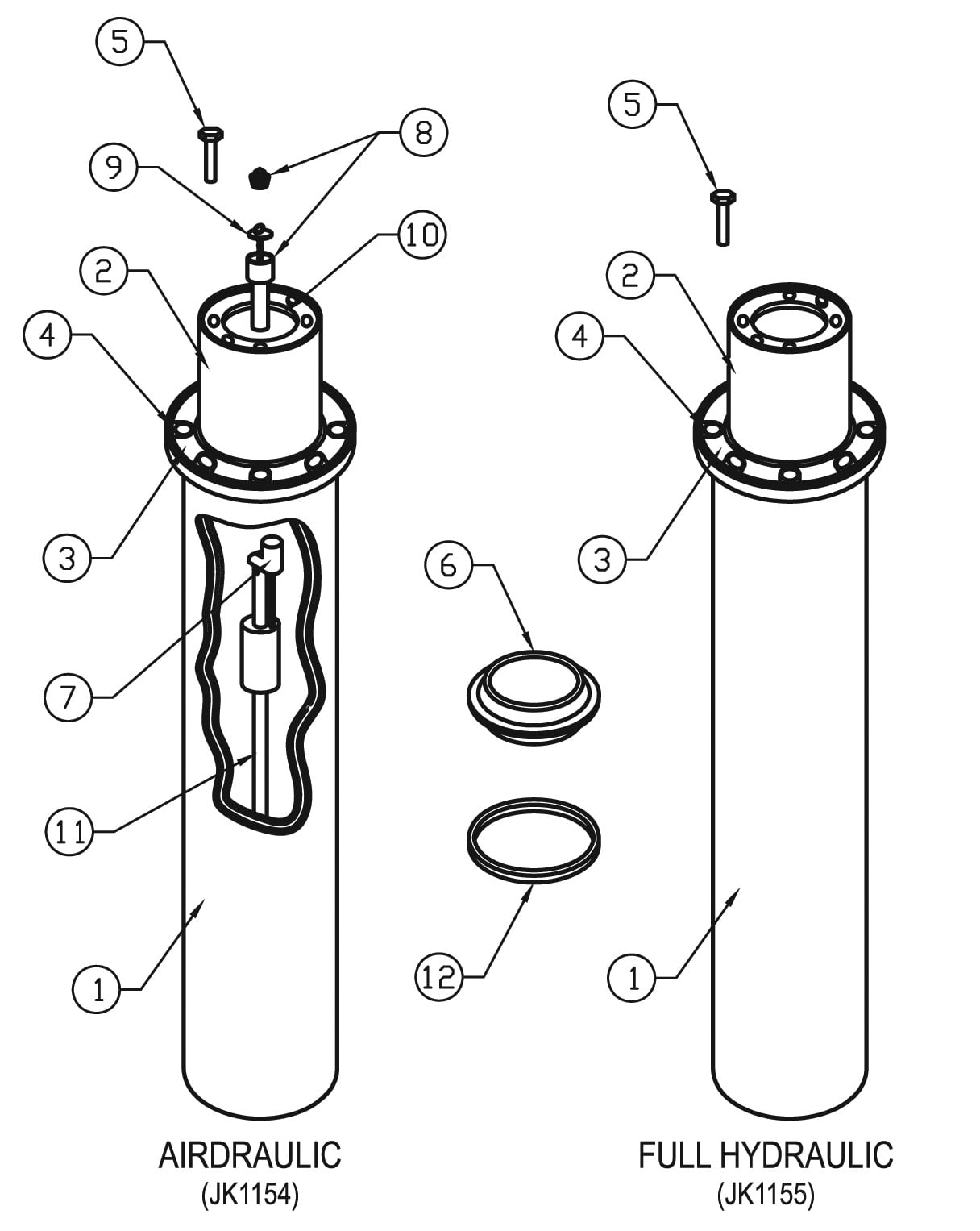

Parts for Rotary DRT10A MKVI Cylinder Parts

In Ground Single Post Lifts – Rotary Lift – DRT10A MKVI

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
n/a
JK7100
1
Casing for JK1154 & JK1154-1
1
n/a
JK7101
1
Casing for JK1155 & JK1155-1
2
BH-9771-81
JK482
1
Plunger for JK1154 & JK1154-1
View
2
BH-9780-02
JK478
1
Plunger for JK1155 & JK1155-1
View
3
BH-9762-02ATF
SVI Exclusive
10-5/8" Adjust-to-Fit Bearing Kit
View
3
BH-9762-02
JK629
1
10-5/8" Upper Bearing Kit
View
3
BH-1799B
JK622
1
Aluminum Packing Gland
View
4
FK-60-125
JX207
1
Bleeder Plug
View
5
F-HC-0875-09-2500
4
7/8-9 x 2-1/2 Hex Head Capscrew
View
6
BH-1799
JK227 Kit
10-5/8" Seal Kit
View
6
BH-1799/99B
J134
1
10-5/8" Seal and Gland Kit
View
7
BH-9780-73
FA73
Low Oil Control
View
8
Request Details
1" Close Nipple, Coupling & Plug
9
BH-9768-09
JX196
Oil Gauge
View
10
BH-9762-96
JK468-2
Flange Bushing
View
11
BH-9768-04
JX160
Replacement Air Line
View
12
BH-9762-95
JK438-3-1
O Ring
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
