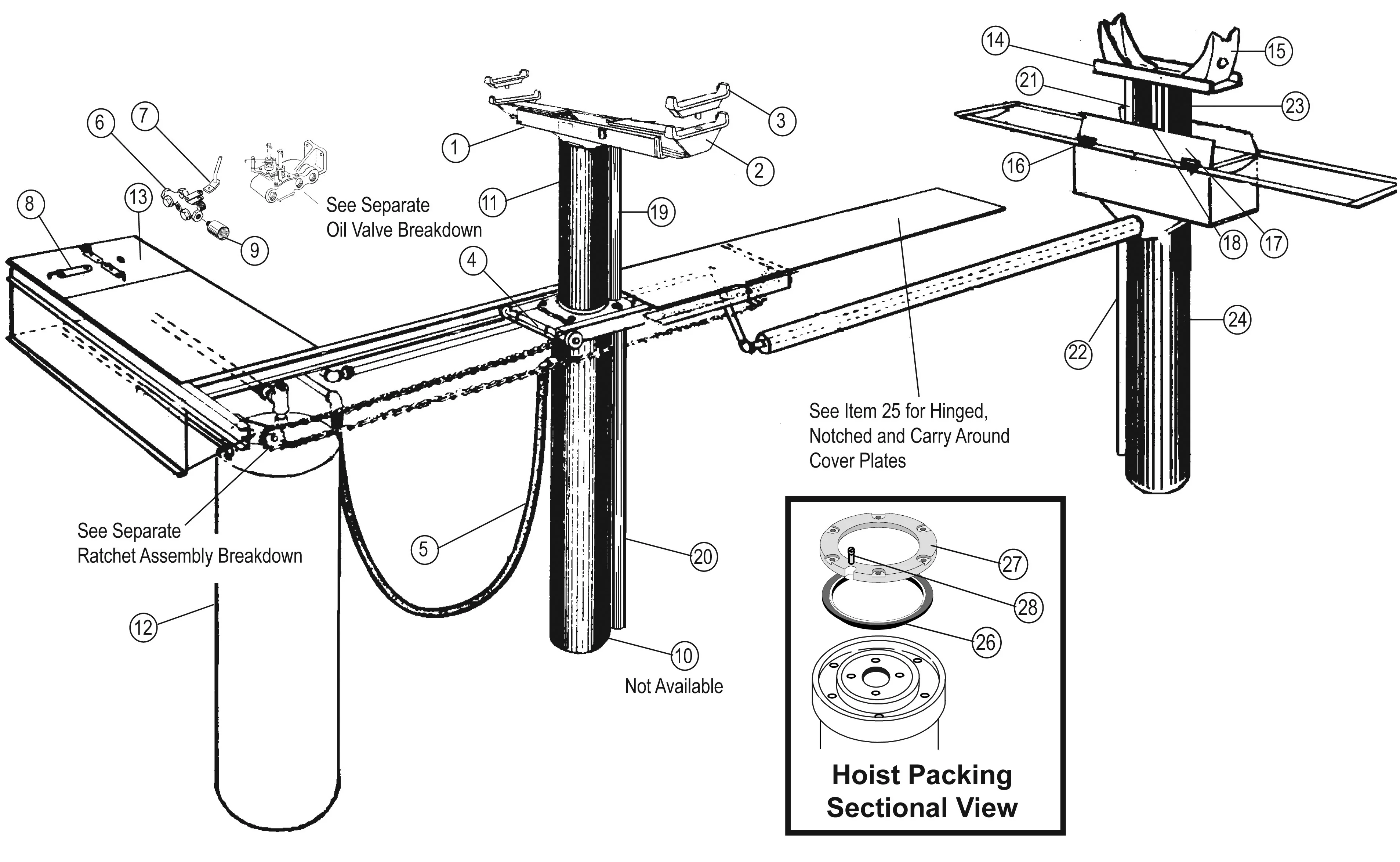

Parts for Rotary AT70H

In Ground Front and Rear / Fore and Aft Lifts – Rotary Lift – AT70H

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-9755-52
FD282
1
Front Saddle
View
2
BH-9755-56
FD268
2
Front Sliding Adapter
View
3
Request Details
For other Adapters and Height Extensions, please call SVI.
4
BH-9765-59
FD79
2
Axle Assembly
View
4
BH-9663-15
FF70-23
3
Axle U Bolt
View
4
BH-9765-39
FD70-22
1
Chain Adjuster
View
5
BH-9816
FD93
1
Hydraulic Hose
View
6
FK-302-500
FA378
1
Air Valve Body
View
7
BH-9755-01
FA378-1
1
Cam & Stem Assy
View
8
BH-9755-02
FF512
2-3
Control Valve Handle
View
9
BH-9640
FA515
1
1/2" NPT Metal Air Valve Muffler
View
11
BH-9770-11
JK479
1
Front Plunger (Jack # Required)
View
12
BH-9804-T
FA136
1
Tank (Top Outlet)
View
13
BH-9770-26
FD6169
1
Control Box Cover (Air/Oil)
View
13
BH-9770-27
FD6170
1
Control Box Cover (Electric)
View
14
BH-9755-54
FD255
1
Rear Saddle
View
15
BH-9755-55
FD244
2
Rear Adapter
View
15
BH-9755-55A
FD244
Rear Adapter 17" Tall Version
View
16
BH-9770-01A
FF634-7
4
Door Retainer / Hinge
View
17
BH-9770-13
FD625-4
2
Rear Housing Door
View
18
BH-9770-02
FF634-9
2
Door Rub Bar
View
18
BH-9770-02K
FF634-30
Rub Bar Kit
View
19
BH-RO-60
FA267
1
Front Safety Leg
View
20
BH-9770-15
FA290
1
Front Safety Leg Casing
View
21
BH-RO-70
FA265
1
Rear Safety Leg
View
22
BH-9770-60
FA2160
1
Rear Safety Leg Casing
View
23
BH-9780-02
JK478
1
Rear Plunger (Jack # Required)
View
23-24
BH-9770-14
JK1142
1
Rear Cylinder Assy. (FG)
View
25*
BH-9770-24
FD644
1
Front Cover Plate (Confirm size)
View
25*
BH-9770-25
FD6178-2
1
Intermediate Cover Plate (Confirm size)
View
25*
BH-9770-23
FD643
1
Rear Cover Plate (Confirm size)
View
26
BH-1799
JK227
2
Hoist Packing Kit
View
27
BH-1799B
JK622
2
Aluminum Packing Gland
View
28
FK-60-125
JX207
2
Bleeder Valve
View

* Size Needed for Cover Plates. Sample or drawing may be required.
