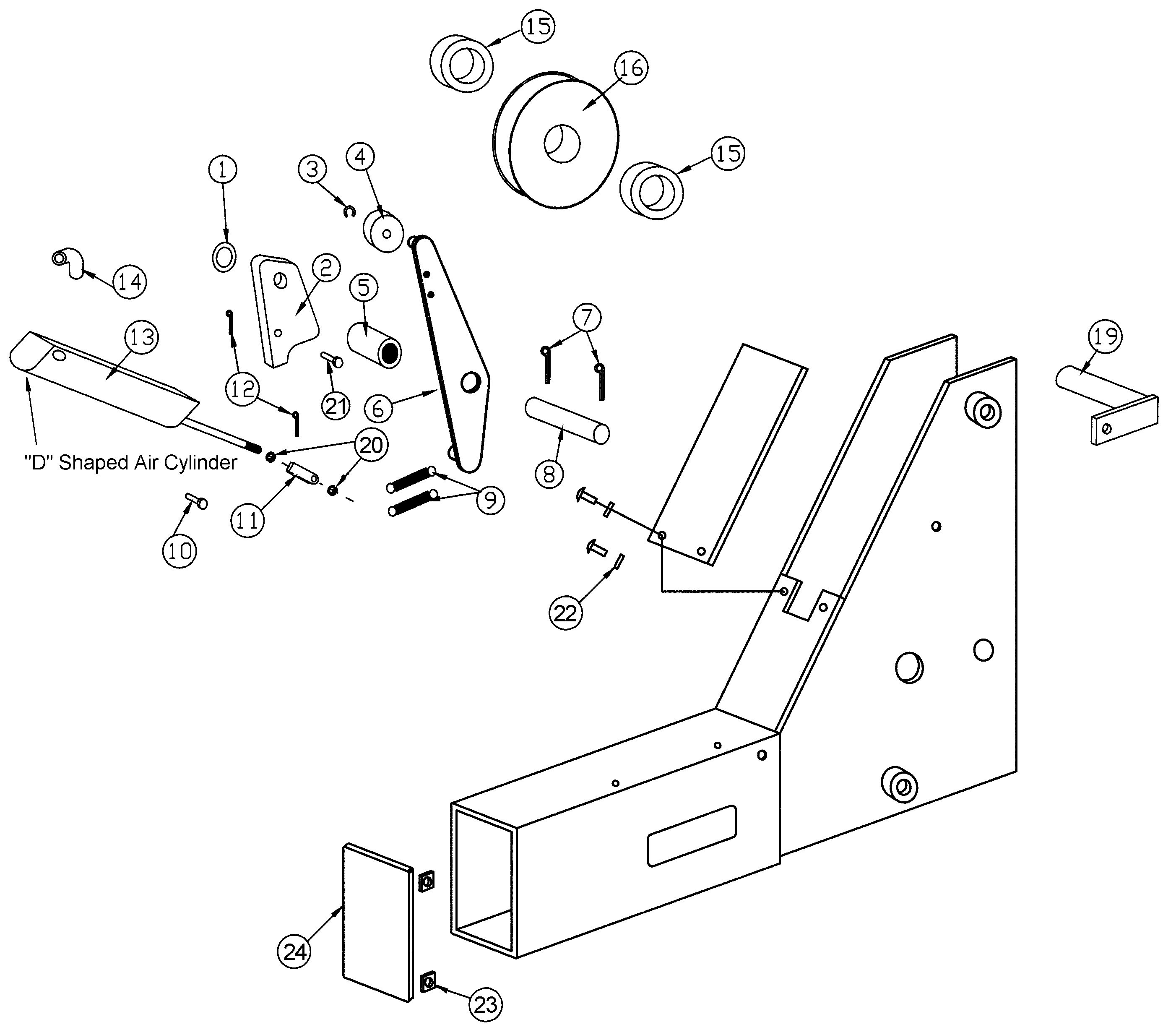

Parts for Rotary ARO123 Lock Detail Front Yoke End

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – ARO123

Repair parts for Rotary Lifts Model ARO123 are available from SVI.

SVI is the your best choice for repair parts for Rotary Lifts. Whether you need slip plate / alignment parts, cables, sheaves, chain, chain rollers, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary ARO123:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
FC5301-98
Spacer

2
FC5706-10
4
Locking Latch

3
41410
4
3/8" Ext. Retaining Ring 5304-37

4
FC553-21
8
Slack Cable Roller

5
FC5706-9
4
Spacer

6
S120103
4
Kicker

7
41201
8
1/8" x 1-1/4" Cotter Pin

8
FC5901-7
4
Lock Shaft

9
FC522-25
8
Spring

10
Request Details
S130051
Clevis Pin

11
FC5706-7
4
Clevis

12
Request Details
8
1/4" Hair Pin Cotter

13*
S130061
4
Air Cylinder (1 port) (properly ID)

13*
S130017
4
Air Cylinder (2 port) (properly ID)

14
FC5224-39
4
Elbow

15
FC5927-10
8
Spacer

16
FC5804-2
10
Sheave

16
FC5804-2x
Sheave - Greaseable

17
S130014
2
Yoke End Cover (Front)

17
FC5802-18
2
Yoke End Cover (Rear)

18
FC5706-16
8
Slider 2-Hole Version (pictured)

18
FC5301-97
Slider 1-Hole Version

19
FC5224-21
Sheave Pin

19
FC5728-7
Sheave Pin (chrome-plated)

20
1/4"-28NF Hex Nut

21
FA2230-12
4
Clevis Pin

22
1/4 Flatwasher

23
Request Details
FC7115
Spring Clip

24
Request Details
FC248
Tube Cap

*Various styles of air cylinders have been used. Consult SVI sales for a "Direct Fit" solution.
