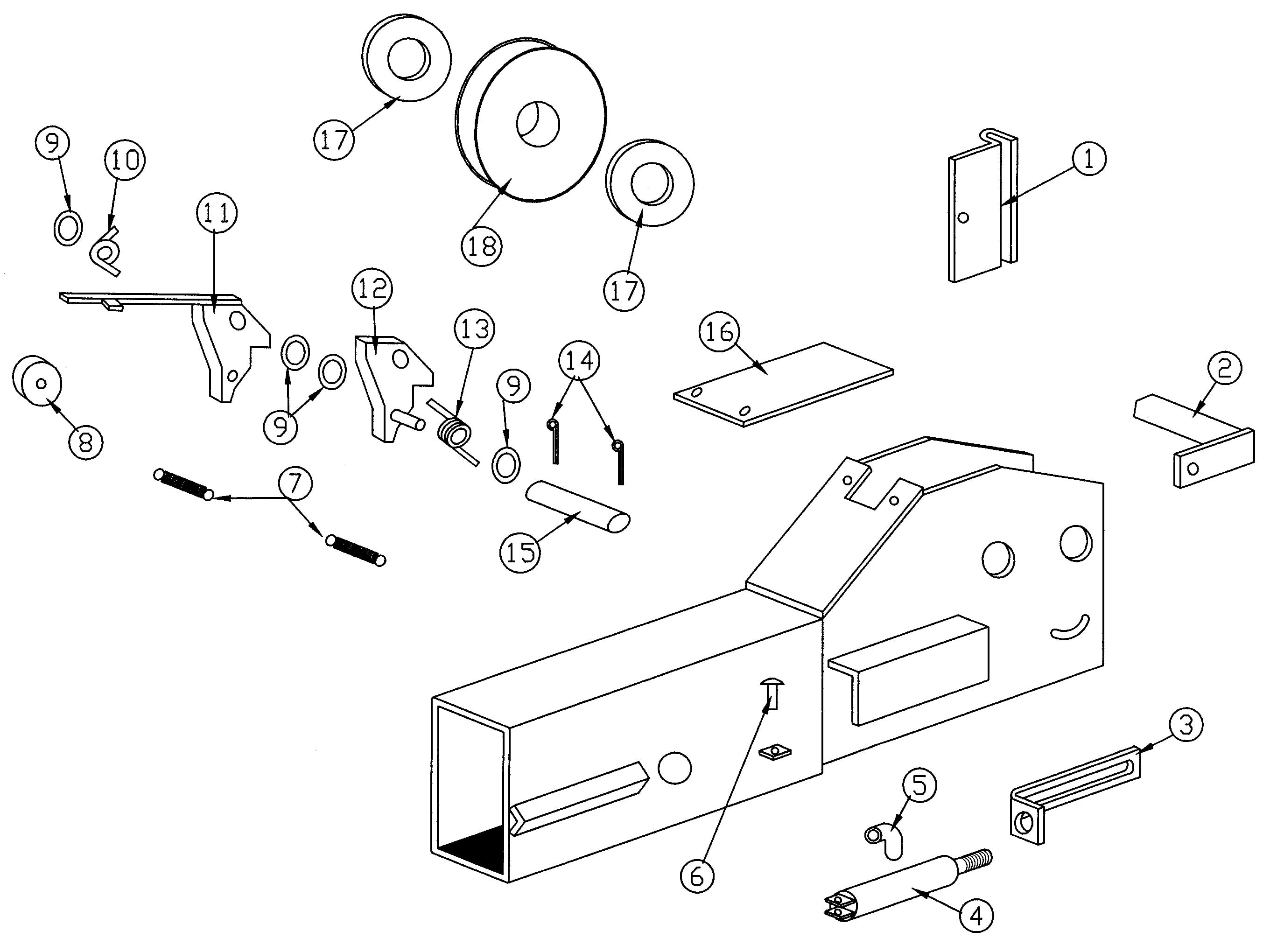

Parts for Rotary AR90 Lock Detail

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – AR90

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7508-99
FC5301-97
Slider (1-Hole Version) pictured
View
1
BH-7517-31
FC5706-16
Slider (2-Hole Version)
View
2
BH-7501-39
FC522-34
4
Sheave Pin
View
3
BH-7501-53B
FA2230-9
4
Slotted Bracket
View
4
BH-7501-53
FA2230-1
4
Air Cylinder
View
5
BH-7501-56
FC5224-39
Elbow 1/4" Tube
View
6
BH-7507-06
FA2230-12
4
Clevis Pin
View
7
BH-7501-61
FC522-25
8
Spring
View
8
BH-7517-24
FC553-21
4
Slack Cable Roller
View
9
BH-7510-15
FC5301-98
Washer
View
10
BH-7501-59R
FC5224-63
4
Right Spring
View
11
BH-7501-54/54R
2
RH/LH Slack Cable Lock Kit
View
12
BH-7501-60/60A
1
RH & LH Lock Pawl Kit
View
13
BH-7501-59
FC5224-62
4
Left Spring
View
14
F-CP-125-1250
1/8" x 1-1/4" Cotter Pin
View
15
BH-7501-55
FC5224-17
4
Lock Shaft
View
16
BH-7516-76
FC553-10
4
Rubber Cover
View
17
BH-7501-42S
FC522-69
8
Anti-Friction Washer .060 Thick
View
18
BH-7501-4
FC522-5
Sheave
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
