Parts for Rotary AR122S

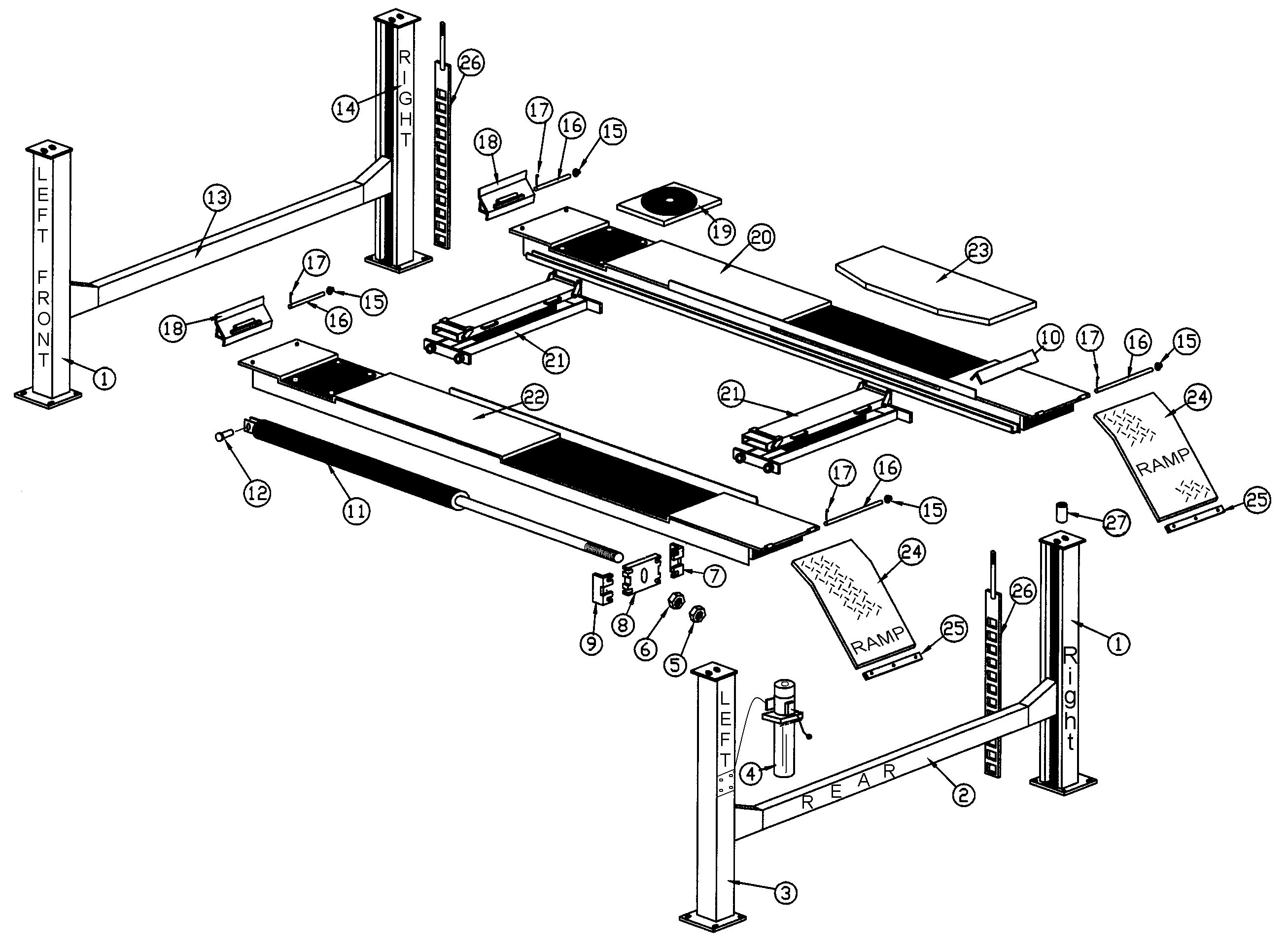

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – AR122S

Repair parts for Rotary Lifts Model AR122S are available from SVI.

SVI is the your best choice for repair parts for Rotary Lifts. Whether you need slip plate / alignment parts, cables, sheaves, chain, chain rollers, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary AR122S:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
FC5704
2
Column

2*
Request Details
FC5706-1
1
Rear Cross Member

3*
FC5705
1
Power Unit Column

4
1
Power Unit

5
F-JN-1375-06
1
1-3/8-6 Jam Nut

6
F-HN-1375-06
1
1-3/8-6 Hex Nut

7**
FC543-2
1
Right Cable Retainer

8**
FC543
1
Cable Plate

9**
FC543-3
1
Left Cable Retainer

10
FC320
2
Wheel Chock

11
FC5797-1
1
Hydraulic Cylinder Kit

12
FC5346-1
1
Clevis Pin

13*
Request Details
FC5707-1
1
Front Cross Member

14*
FC5704
1
Column

15
FC5179-4
2
5/8" Push Nut

16
FC134-99
2
Hinge Pin

17
F-CP-156-1000
41202
2
5/32" x 1" Cotter Pin

18
FC134-13
2
Wheel Stop (hinge pin style)

19
2
Turnplate Set 14-3/4" x 14"

20*
Request Details
various
1
Right Runway

21
Request Details
FC5657
2
Rolling Jack (see section for parts)

22*
Request Details
various
1
Left Runway

23
Request Details
See Rear Slip Plate Parts

24
FC134-12
2
Approach Ramp

25
FC134-33
2
20" Ramp Slide

25
S100051
2
20" Ramp Slide KIT with Fasteners

26
FC5704-3
4
Lock Ladder

27
FC5287
4
Spacer

Wheel Stop (bolt on) not pictured

* Custom order by request. Sample may be needed.

**Replacing Items 7–9: BH-7529-26 (OEM #S120068) - Retainer Weld and BH-7529-27 (OEM #S120075) - Pull Bar Drill
