Parts for Rotary AC60H

In Ground Front and Rear / Fore and Aft Lifts – Rotary Lift – AC60H

Add to
Quote
Add to
Order

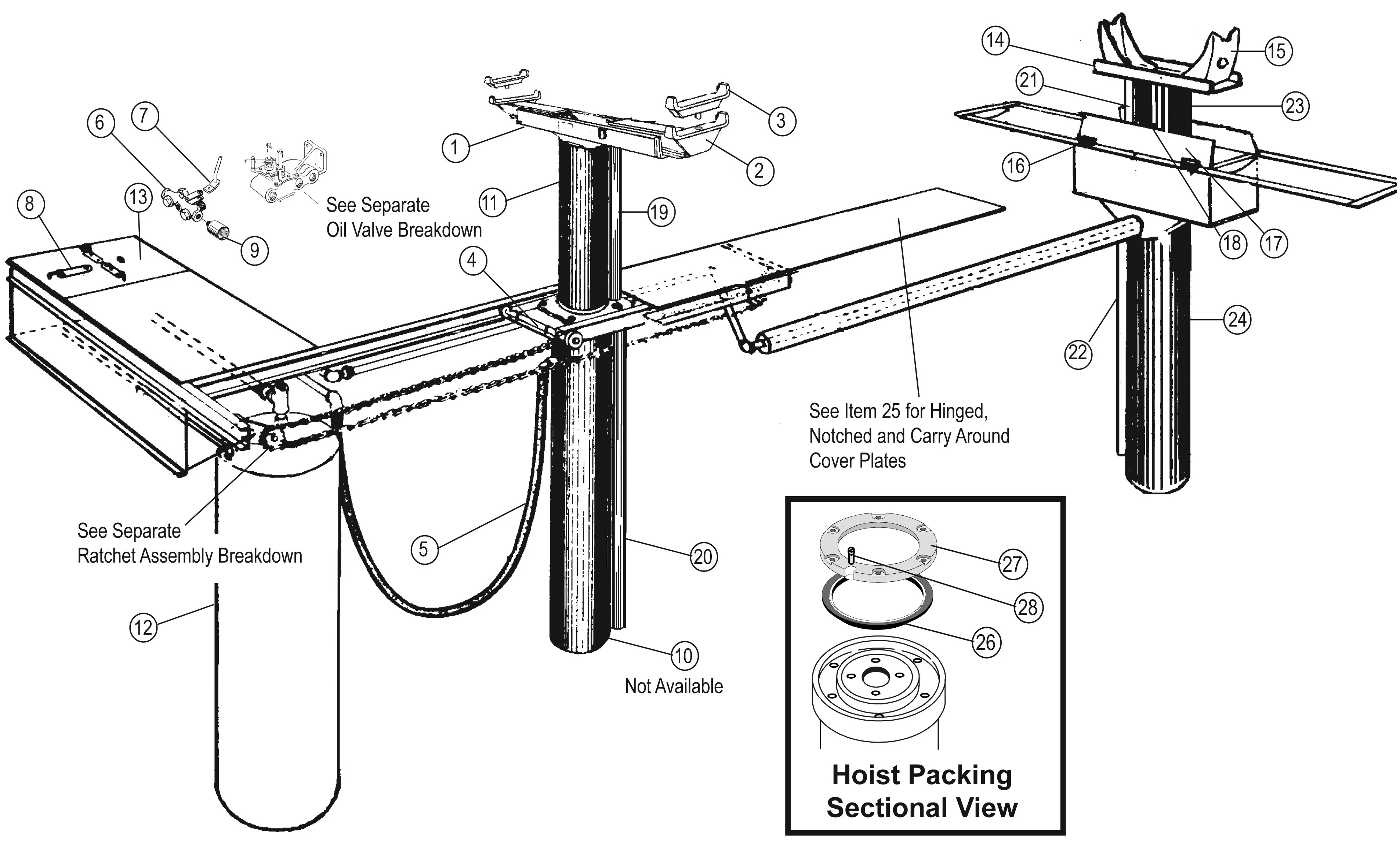

Item
SVI Part #
OEM #
QTY
Description

1***
BH-9755-53
FF241
1
Front Saddle
View
2
BH-9790-04
FF242
2
Front Sliding Adapter
View
3
BH-9790-03
FD246
2
Swivel Height Adapter
View
4
BH-9663-11
FF43
2
Axle Assembly
View
4
BH-9765-01
FF40-11
4
Axle U Bolt
View
5
BH-9815
FF55
1
Hydraulic Hose
View
6
FK-302-500
FA378
1
Air Valve Body
View
7
BH-9755-01
FA378-1
1
Cam & Stem Assy
View
8
BH-9755-02
FF512
2-3
Control Valve Handle
View
9
BH-9640
FA515
1
1/2" NPT Metal Air Valve Muffler
View
11
BH-9770-50
JG437
1
Front Plunger (Jack # required)
View
12
BH-9803-T
FA138
1
Tank (Top Outlet)
View
13
BH-9770-04
FF637-7
1
Control Box Cover (Air/Oil)
View
13
BH-9770-09
FF637-8
1
Control Box Cover (Electric)
View
14
BH-9755-54
FD255
1
Rear Saddle
View
15
BH-9755-55
FD244
2
Rear Adapter
View
15
BH-9755-55A
FD244
Rear Adapter 17" Tall Version
View
16
BH-9770-01
FF634-7
4
Door Retainer/Hinge
View
17
BH-9770-13
FD625-4
2
Rear Housing Door
View
18
BH-9770-02
FF634-9
2
Door Rub Bar
View
19
BH-TR-66
FA2107
1
Front Safety Leg
View
20
BH-9770-62
FA2162
1
Front Safety Leg Casing
View
21
BH-RO-70
FA265
1
Rear Safety Leg
View
22
BH-9770-60
FA2160
1
Rear Safety Leg Casing
View
23
BH-9780-02
JK478
1
Rear Plunger (Jack # Required)
View
25*
BH-9770-08
FF673
1
Notched Cover Plate
View
25*
BH-9770-07
FF619-3
1
Hinged Cover Plate
View
25*
BH-9770-06
FF672
1
Rear Cover Plate
View
26**
BH-1721
JG220
1
Front Pkg. Kit with Spring
View
26
BH-1799
JK227
1
Rear Hoist Packing Kit
View
27
BH-1721B
JG620
1
Front Packing Gland
View
27
BH-1799B
JK622
1
Rear Packing Gland
View
28
FK-60-125
JX207
2
Bleeder Valve
View

* Size Needed for Cover Plates. Sample or drawing may be required.

** For New Style Blue Seal, order BH-1706 (OEM Ref JG227)

*** SVI has both standard and custom saddles and adapters. Call today.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
