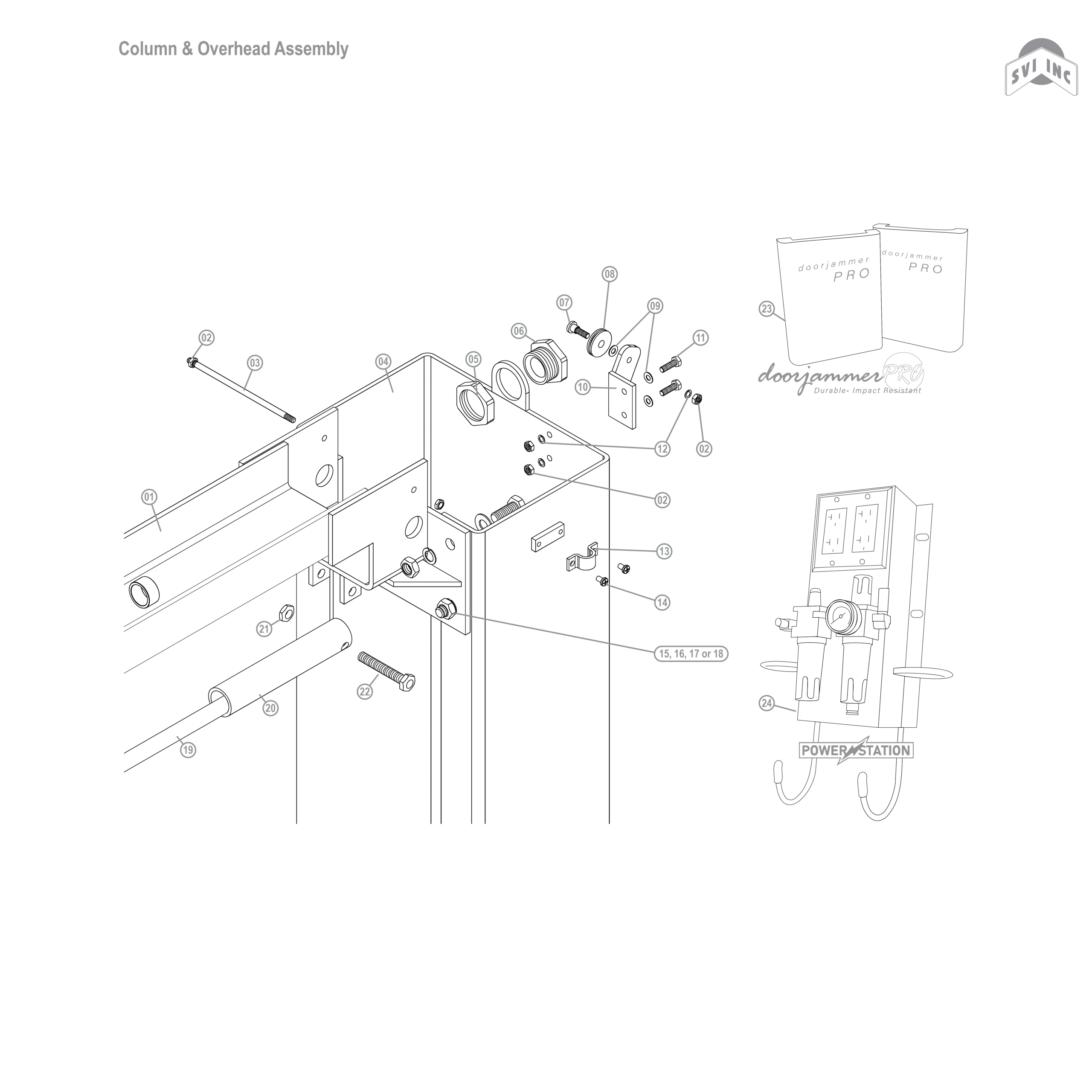

Parts for Quality Lifts Q12 Series (Column & Overhead Assembly)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
JSJ6-03-01-00
1
Overhead Weld

2
X10-034
10
Nut (M6)

3
JSJ5-03-07ch
2
Rod – Cable Trapping

4
JSJ6-02-02-00f
1
Column Extension – Idler

5
JSJ4-02-18
2
Nut – Hose Guide

6
JSJ4-02-17
2
Guide – Hose

7
JSJ4-02-08
2
Pin – Lock Release Sheave (M6)

8
JSJ4-02-09
2
Sheave – Lock Release

9
X10-032
6
Washer (M6)

10
JSJ4-02-11-00f
1
Bracket – Lock Release Sheave – Power Column

11
X10-051
4
Bolt (M6 x 20 mm)

12
X10-033
6
Lock Washer (M6)

13
JSJ5-02-02-03
3
Cord Clamp – Overhead Shut Off

14
X10-049
6
Pan Head Screw – Machine (M5 x 8 mm)

15
X10-037
8
Bolt (M12 x 30 mm)

16
X10-038
8
Washer (M12)

17
X10-039
8
Lock Washer (M12)

18
X10-040
8
Nut (M12)

19
JSJ6-03-02
1
Shut Off Bar – Overhead

20
12045
1
Limit Switch

21
X10-019
2
Nut (M10)

22
X10-060
1
Bolt – Power Column (M10 x 65 mm)

23
Call for Details
Doorjammer Pro (12")

23
Call for Details
Doorjammer Pro (24")

24
Call for Details
Power Station (2-Post)

Switch – Mercury Limit (21′ Cord)

Pulley – Lock Release

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part or product listed is the actual product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
