Parts for Manitowoc Lifts A-3BM5A

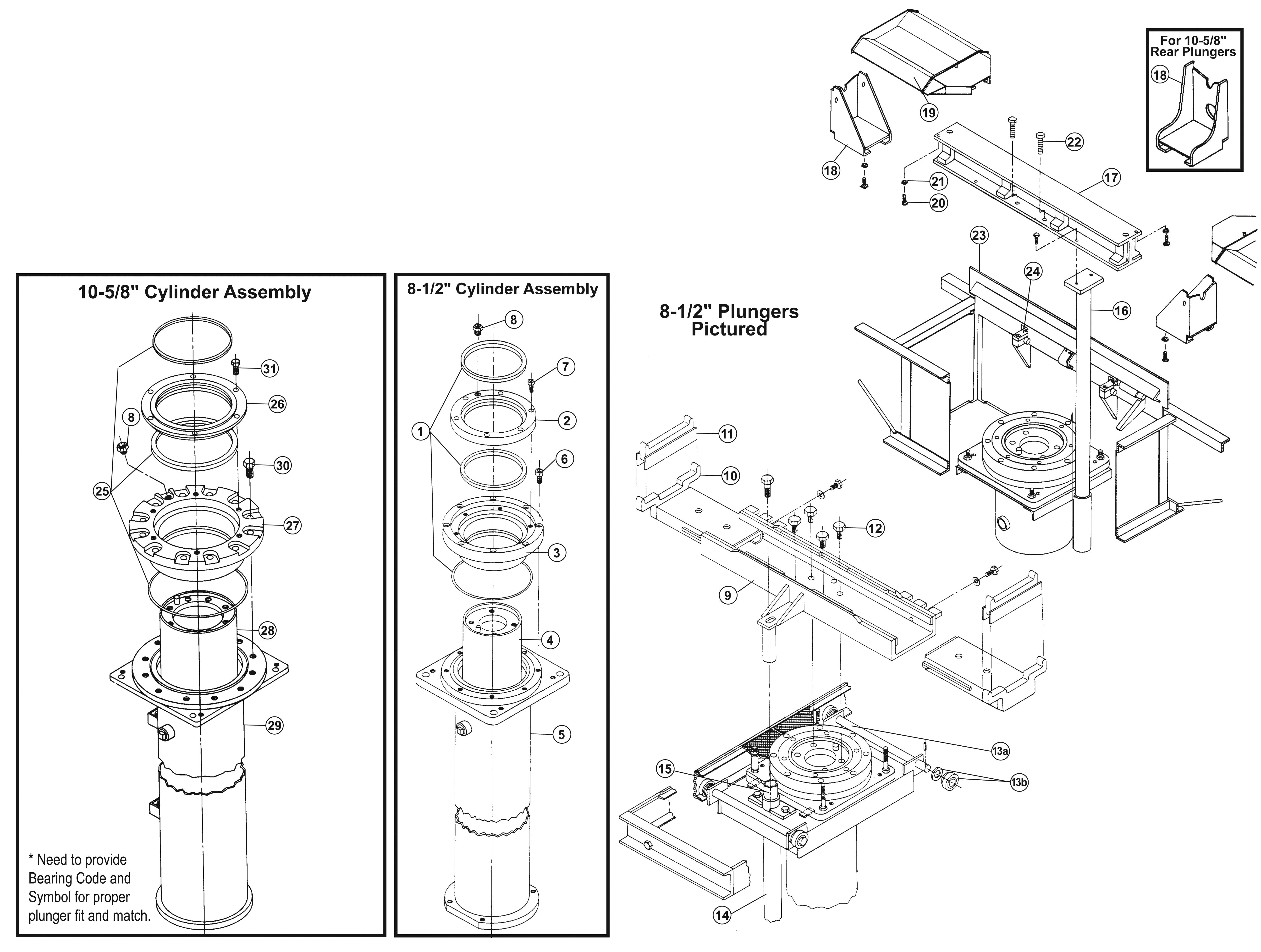

In Ground Front and Rear / Fore and Aft Lifts – Manitowoc Lifts – A-3BM5A

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
K34152
1-2
Hoist Packing Kit (8-1/2")

1
K34122
1-2
Hoist Packing Kit (7-1/2")

2
T13915-01
1-2
Wiper Ring Retainer (8-1/2")

3
T13911-02
1-2
Upper Bearing (8-1/2")

4
BH-9341-06*
T13912-G2
1
Front Plunger Assy. (8-1/2")

4
BH-9341-07*
T13912-G3
1
Rear Plunger Assy. (8-1/2")

5
T13919-G1
1
Front Casing (8-1/2")

5
T13922-02
1
Rear Cylinder Assy. N/A

6
Q10034-82
16
Socket Head Cap Screw

7
Q10034-28
12
Socket Head Cap Screw

8
N21812-G1
2
Air Vent

9
T13930-02
1
Front Saddle (8-1/2")

9
T13949
1
Front Saddle (10-5/8")

9
T13930-03
1
Front Saddle (A-12J3A 8-1/2")

10
R13418
2
Front Sliding Adapter (8-1/2")

10
R13487
2
Front Sliding Adapter (10-5/8")

11
R13424
2
Height Adapter (8-1/2")

11
R13323
2
Height Adapter (10-5/8")

12
Q10412-01
4
Hex Head Bolt

13a
K88533
2
Carriage Axle only (8-1/2")

13a
N20283
2
Carriage Axle only (10-5/8")

13b
K88995
4
Axle Wheel only (8-1/2")

13b
K89017
4
Axle Wheel only (10-5/8")

14
N20234-01
1
Safety Leg Casing (8-1/2")

14
N21352
1
Safety Leg Casing (10-5/8")

15
R13470-07
1
Safety Leg (Foot Release)

15
R13470-07
1
Safety Leg (Top Release)

16
T11967-01
1
Rear Safety Leg (10-5/8")

16
R13471-01
1
Rear Safety Leg (8-1/2")

17
T13929
1
Rear Saddle (8-1/2")

17
T13934
1
Rear Saddle (10-5/8")

18
R13177
2
Rear Adapter (8-1/2")

18
R13468
2
Rear Adapter (10-5/8")

19
T09478
opt
Wheel Adapter Assy (A-12M3A)

20
K01902
6
Hex Head Cap Screw

21
K01943
6
Hex Nut

22
K01909
2
Hex Head Cap Screw

23
R16249
2
Cover Door

24
K88461
4
Hinge Door Top Member

25
K34151
1-2
Hoist Packing Kit (10-5/8")

26
R18229-02
1-2
Wiper Ring Retainer (10-5/8")

27
T13943-03
1-2
Upper Bearing (10-5/8")

28
T13935-G1
1-2
Plunger Assy. (10-5/8")

29
T13938-G2
1
Casing (10-5/8" manual lock front)

29
T13938-G1
1
Casing (10-5/8" auto lock front)

29
T13939-G1
1
Casing (10-5/8" Rear)

30
Q10412-01
12
Hex Head Cap Screw

31
K01907
6
Hex Head Cap Screw

--
K90133
1
Air Cylinder for Auto Lock

--
R13477-01
Lift Oil Tank - For one or two 8-1/2" plungers (Fiberglass version available)

--
R13478-01
Lift Oil Tank - For two 10-5/8" plungers (Fiberglass version available)
