Parts for John Bean 44212Q Hydraulics

Above Ground / Surface Mount 4-Post Lifts – John Bean – 44212Q

Repair parts for John Bean Lifts Model 44212Q are available from SVI.

SVI is the your best choice for repair parts for John Bean Lifts. Whether you need chain, chain rollers, cables, sheaves, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post John Bean lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

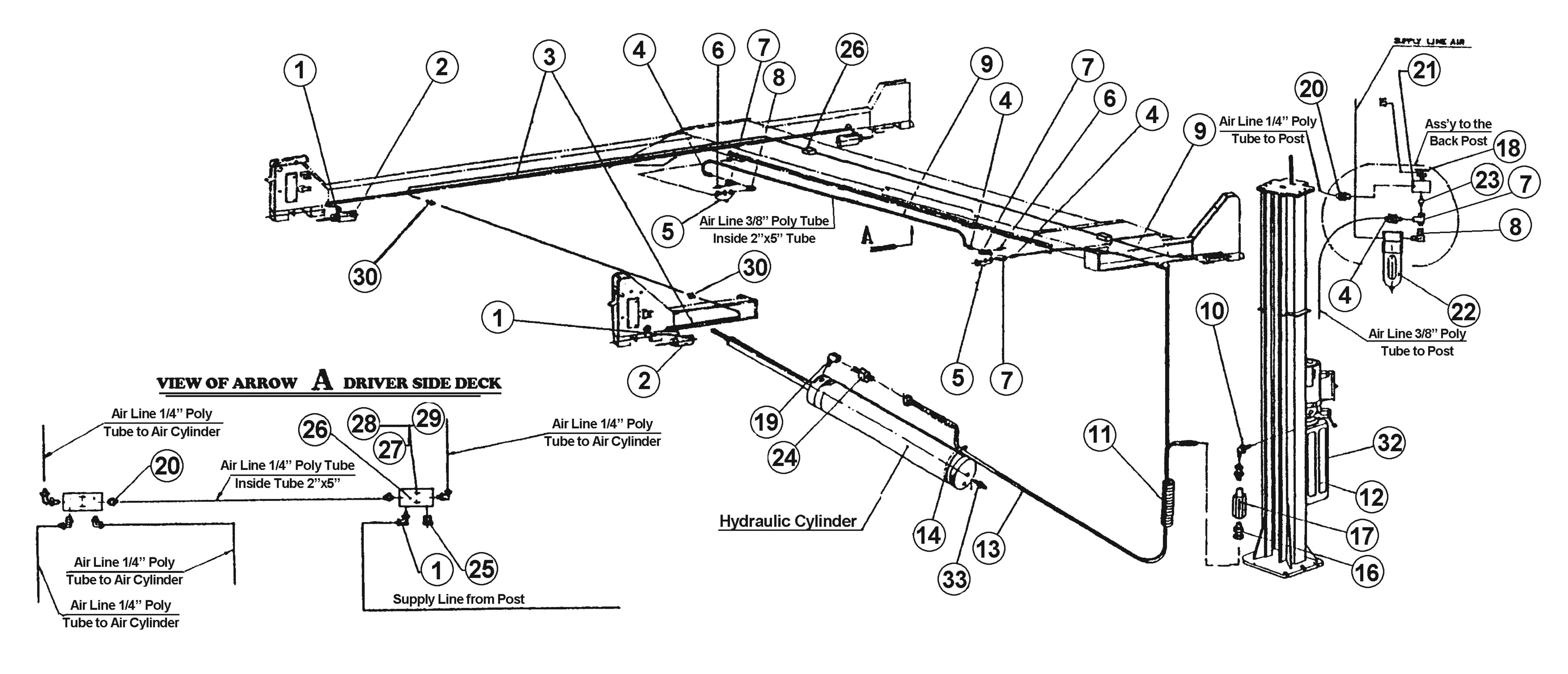

Also see these additional breakdowns for John Bean Lift 44212Q:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
6-0709
9
90° Elbow, 1/8" NPT x 1/4" Poly Tube

2
6-0651
4
Air Cylinder

3
6-0706
50'
1/4" Poly Tube

4
6-0710
4
Adapter, 3/8" Poly Tube x 1/4" NPT

5
6-0713
2
Terminal Bolt, 3/4"

6
6-0282
2
Plug, 1/4" NPT

7
6-0014
4
1/4" NPT Street Tee

8
6-0015
2
1/4" NPT Street Elbow

9
6-0707
25'
3/8" Poly Tube

10
6-0804
1
90° Elbow, 3/8" JIC M x 9/16" M

11
6-0714
4'
Hose Guard

12
6-0650
1
Power Pack 230V/1PH

13
6-0715
1
Hyd. Hose Assy., 3/8" Swivel x 3/8" JIC M, 147"

14
6-0731
3
Cable Tie

15
Request Details
6-1051
1
Socket Hd. Set Screw

16
6-0797
2
Adpt., 3/8" NPT M x 3/8" JIC F Swivel

17
6-0090
1
Flow Control

18
6-1052
1
Button

19
6-0796
1
90° Elbow, 1/4" NPT M x 3/8" NPT F

20
6-0708
3
Adpt., 1/4" Poly Tube x 1/8" NPT

21
6-1055
1
Air Valve Assembly

22
6-0180
1
Air Filter

23
6-1382
1
Adpt., 1/4" NPT M x 1/8" NPT M

24
6-0025
1
Velocity Fuse

25
6-0182
1
Plug, 1/8" NPT

26
1-1057
2
Manifold

27
6-0177
4
Hex Hd. Capscrew, 1/4"-20 x 2"

28
6-0032
4
Hex Nut, 1/4"-20

29
6-0056
4
Lock Washer, 1/4"

30
6-0747
2
1/4" Poly Tube Adpt.

32
BH-7805-118
6-0593
1
Lift Operation Decal

33
6-0280
1
Adpt. 1/8" NPT M x 1/4" JIC M

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
