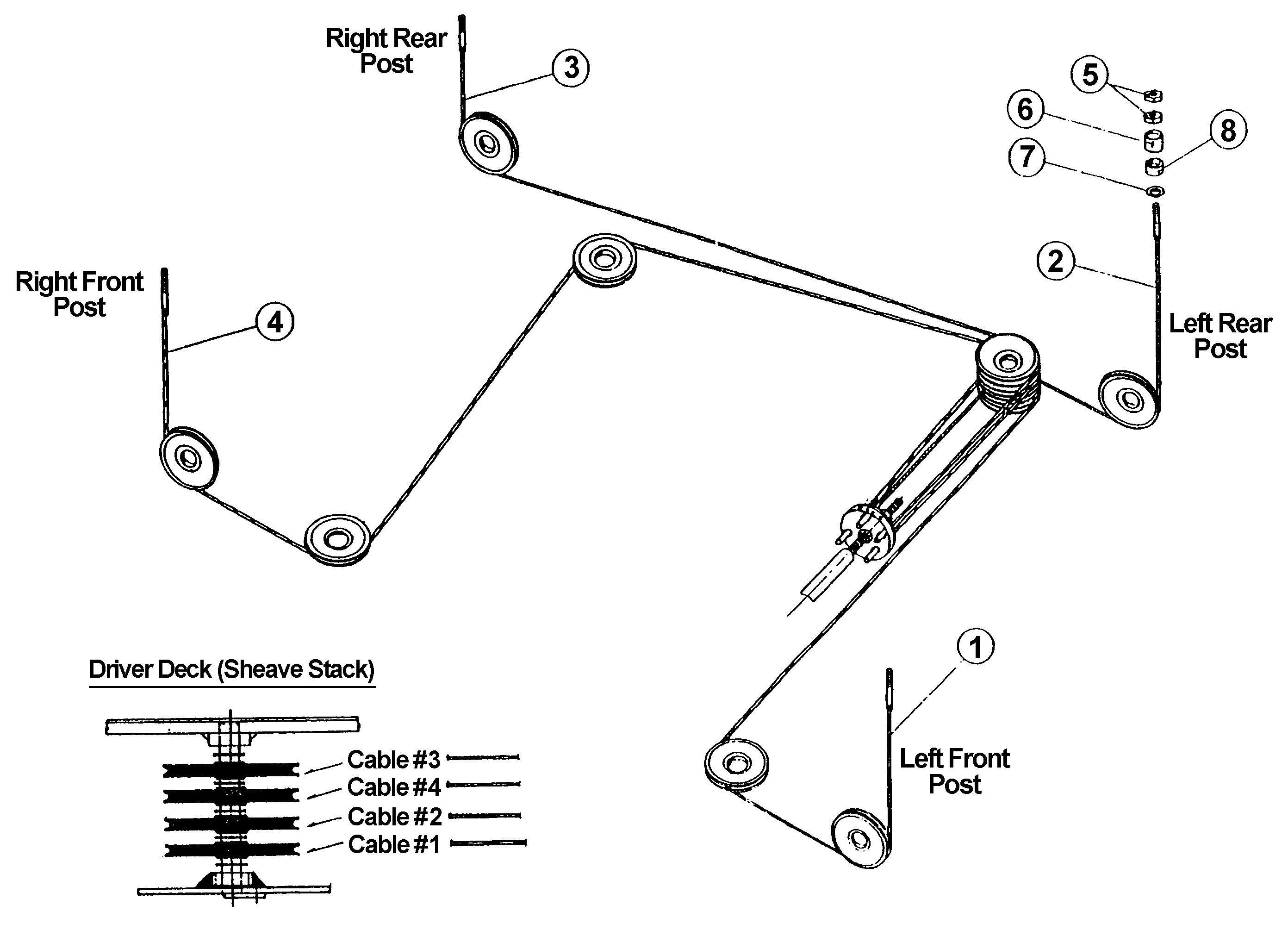

Parts for John Bean 43212L Cable Routing

Above Ground / Surface Mount 4-Post Lifts – John Bean – 43212L

Repair parts for John Bean Lifts Model 43212L are available from SVI.

SVI is the your best choice for repair parts for John Bean Lifts. Whether you need chain, chain rollers, cables, sheaves, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post John Bean lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for John Bean Lift 43212L:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
2-1287
1
Cable Assembly, 387" L.F.

2
2-0540
1
Cable Assembly, 178" L.R.

3
2-0541
1
Cable Assembly, 233" R.R.

4
2-1288
1
Cable Assembly, 442" R.F.

5
F-HN-0875-14
6-0724
8
Hex Nut, 7/8"-14 UNF, Gr. 8

6
1-0800
4
Cable Spacer, 2"

7
6-0725
4
Flat Washer, 7/8"

8
1-0801
4
Cable Spacer, 1"

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
