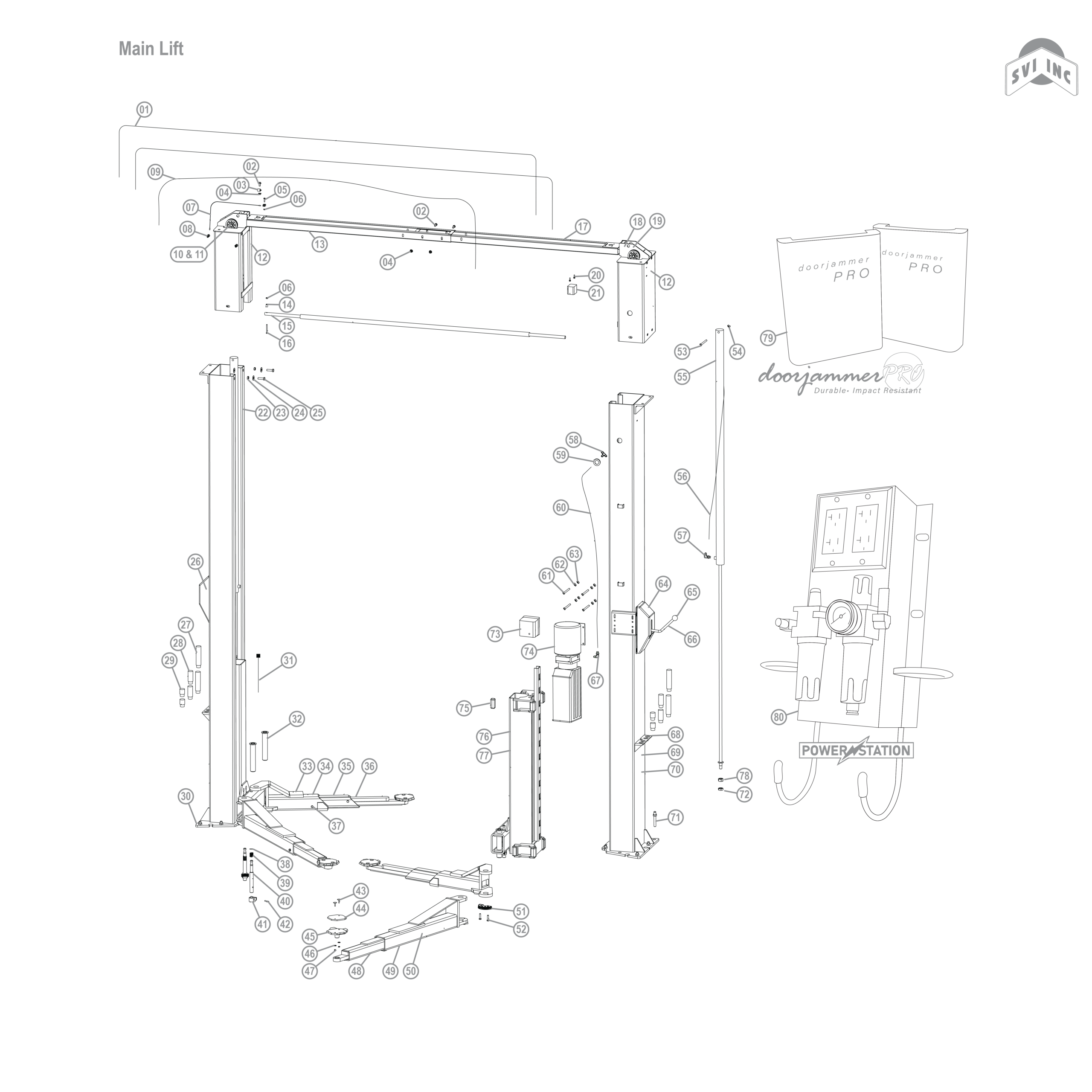

Parts For Forward I10 (Main Lift)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Call for Details
Cable – Lock Nut (49)

1
913303
Nut – Nylon Insert Lock (5/8-11)

1
913206
Washer (16 Millimeter Diameter)

1
Call for Details
Washer (18 Millimeter Diameter)

1
NR10-4000
Cable

2
41536
Hex Head Cap Screw (M10 x 1.5 x 20 Millimeter Long)

3
G3T-8005
Clamp – Hose

4
41655
Locknut – Serrated Flanged (M10 x 1.5)

5
40108
Hex Head Cap Screw (1/4-20 x 1")

6
991490
Nut – Flange Hex Lock (1/4-20)

7
N618
Sheath – Cable

8
N619
Bracket – Cable End

9
NR10-9801-1
Hose – Offside

10
BH-7239-117
970802
Pin – Sheave

10
Call for Details
Pin – Sheave

11
1070900
Sheave – Cable

12
NR10-2000
Weldment – Extension

13
NDP10-3000B
Weldment – Offside Overhead

14
991480
Spacer – Switch Bar

15
991481
Switch Bar – Overhead Single Phase

15
N434
Switch Bar – Overhead Three Phase

16
911481
Hex Head Cap Screw (1/4-20 x 2" Long)

17
NDP10-3000A
Weldment – Mainside Overhead

18
1070817
Assembly – Cylinder Mount Upright

19
NR10-3000
Weldment – Cylinder Mount Upright

20
911421
Hex Head Cap Screw (1/4-20 x 1/2" Long)

21
N413
Switch – Overhead Single Phase

21
N432
Switch – Overhead Three Phase (43 Amp)

22
1070126
Assembly – Offside Leg

22
NR10-1100a
Weldment – Offside Leg

23
912601
Nut – Hex (1/2-13)

24
912605
Washer (1/2")

25
912671
Hex Head Cap Screw (1/2-13 x 1-3/4")

26
PV-1002
Cover – Offside Latch

27
995550
Extension – Pad (6")

28
995560
Extension – Pad (3")

29
996220
Extension – Pad (1-1/2")

30
991127
Shim

31
991082
Wire Tie (24")

32
995430
Pin – Arm

33
1070669
Assembly – Front Arm Left

34
1070671
Weldment – Front Arm Tube Left

35
N2220-10Y
Weldment – Middle Arm

36
1070672
Arm – Front Inner

37
991487
Screw – Self Tapping (3/8NC x 1/2" Long)

38
991504
Klip Ring (3/4")

39
143537
Spring – Arm Restraint

40
143536
Pin – Arm Restraint Actuator

41
N2121
Pawl – Arm Restraint

42
991060
Roll Pin (1/4" x 1-1/2" Long)

43
991243
Bolt – Elevator (1/4-20 x 1-1/4")

44
994105
Kit – Swivel Pad Rubber Insert (Set of 4)

45
106605
Weldment – Stackable Pad

46
911405
Washer (1/4")

47
911401
Nut – Nylon Insert Hex (1/4-20)

48
1070629
Slider – Rear Arm Long

49
1070639
Assembly – Rear Arm

50
I-DP10-5100
Weldment – Rear Arm Tube

51
N2122
Gear – Arm Restraint

52
912061
Hex Head Cap Screw (3/8-16NC)

53
912791
Hex Head Cap Screw (1/2-13 x 5")

54
912603
Nut – Nylon Insert Lock (1/2-13)

55
992317
Cylinder

56
992220
Hose – Mainside

57
992402
Elbow – 3/8 JIC to 3/8 NPT

58
992502
Tee – 3/8 JIC

59
991491
Grommet – Rubber

60
992219
Hose – Power Unit

61
911751
Hex Head Cap Screw Grade 5 (5/16-18 x 1-1/4")

62
911701
Nut – Hex (5/16-18)

63
911703
Nut – Nylon Insert Lock (5/16-18)

64
PV-1001
Cover – Mainside Latch

65
B84-35
Handle – Ball

65
Call for Details
Knob – Plastic

66
BH-7549-254
PV-1007
Handle – Latch

67
992410
Elbow – 9/16 O-Ring to 3/8 JIC

68
FJ7600
Cable – Latch Release

69
1070125
Assembly – Mainside Leg

70
NR10-1000a
Weldment – Mainside Leg

71
913828
Bolt – Anchor (3/4" x 5-1/2")

72
913611
Nut – Hex Jam (3/4-16)

73
FA7367
Control Box – Three Phase

74
P3302
Power Unit – Single Phase

74
P3398
Power Unit – Single Phase (50 Hertz)

74
P3414
Power Unit – Three Phase

75
995120
Block – Rub

76
1070510
Assembly – Carriage

77
NDP10-2000
Weldment – Carriage

78
913602
Nut – Hex (3/4-16)

79
Call for Details
Doorjammer Pro (12")

79
Call for Details
Doorjammer Pro (24")

80
Call for Details
Power Station (2-Post)

Bushing – Cylinder

Assembly – Front Arm Right

Weldment – Front Arm Tube Right
