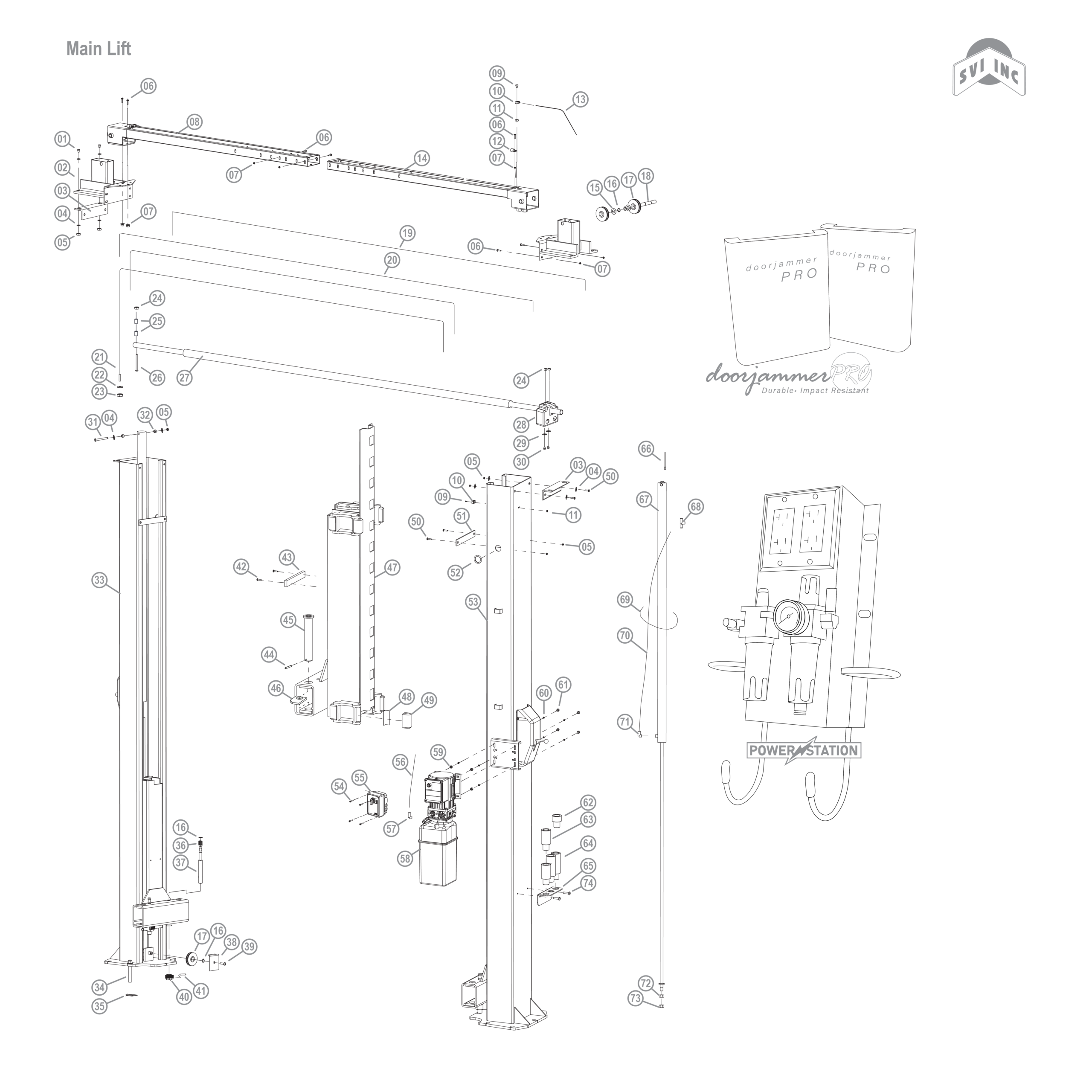

Parts for Forward DP10 200 Series (Main Lift)

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Call for Details
912671
1/2" -13 * 1-3/4" HHCS (G.5)
View
2
Call for Details
TP10-3001
Top Bracket Weldment
View
2
Call for Details
TP10-7000
Top Bracket Weldment Extended
View
3
Call for Details
TP10-1003
Top Bracket Connection
View
4
Call for Details
H4D-2000-10 (40920)
1/2" Flat Washer
View
5
Call for Details
40707
1/2" -13 Nylon Lock Nut
View
6
Call for Details
41536
M10-1.5*20 Lg. HHCS
View
7
Call for Details
41655
M10-1.5 Flanged Lock Nut
View
8
Call for Details
N480-1
L.H. Overhead
View
9
Call for Details
40108
1/4" -20NC * 1" Lg. HHCS
View
10
BH-7545-01
N619
Latch Cable Bracket
View
11
Call for Details
40641
1/4" -20NC Flanged Lock Nut
View
12
Call for Details
G3T-8005 (N3126)
Hose Clamp
View
13
BH-7545-01A
N618
Latch Cable Guide
View
14
Call for Details
N481-1
R.H. Overhead
View
15
BH-7500-49B
41388
Washer
View
16
BH-7500-62A
41411
Truarc #5304-75 Klipring for 3/4" Shaft
View
17
BH-7530-01N
N377
Sheave
View
18
Call for Details
G3T-4001 (FJ7444-8)
Sheave Shaft
View
19
BH-7535-21
FJ7600
Latch Release Cable
View
20
BH-7239-236
NDP10-9801-1G
Overhead Hose STD.
View
20
Call for Details
NDP10-9801-2G
Overhead Hose EXT.
View
21
BH-7235-99
TP10-6001
Equalizer Cable (STD.)
View
22
Call for Details
913206 (40970)
Flat Washer ø6
View
23
Call for Details
913303 (40743)
Nylon Lock Nut 5/8" -11
View
24
Call for Details
911403 (40642)
1/4" -20NC Nylon Lock Nut
View
25
Call for Details
G3T-4003 (FJ7871)
Limited Bar Spacer
View
26
Call for Details
40114
1/4" -20NC * 2 3/4" Lg. HHCS
View
27
BH-7528-80
N415
1 Phase Switch Bar Assembly
View
27
Call for Details
N434
3 Phase Switch Bar Assembly
View
28
BH-7503-65
N413
Overhead Switch 1 Phase
View
28
BH-7529-30
N432
Overhead Switch 3 Phase
View
29
Call for Details
B41-6 (40795)
1/4" Flat Washer
View
30
Call for Details
40099
1/4" -20NC * 3/4" Lg. HHCS
View
31
Call for Details
912781 (40334)
1/2" -13*4-1/2" HHCS (G.8)
View
32
BH-7239-235
DP9-7005
Cylinder Spacer
View
33
Call for Details
TP10-1100
L.H. Column Weldment
View
34
BH-7075-03-20
FJ7380
Anchor Bolt
View
35
Call for Details
30400-1025
U Shim
View
36
BH-7239-79
143537
Press Spring
View
37
BH-7239-991
DP9-3004
Actuator Pin
View
38
BH-7502-33
N119-1
Sheave Cover
View
39
Call for Details
40063
1/4" - 20NC * 3/8" Lg. PHMS Plated
View
40
BH-7545-17
N2121
PAWL
View
41
BH-7519-28
14427
Spring Pin 1/4" * 1-1/2" Lg.
View
42
Call for Details
B20-8*35
M8 * 35 Socket Bolt
View
43
Call for Details
PV-3005
Rubber Bumper
View
44
Call for Details
B51-6X20
Spring Pin
View
45
Call for Details
995430 (DP9-53000)
Arm Pin
View
46
Call for Details
1070120G
Arm Stop
View
47
Call for Details
TP10-2000
Carriage Weldment
View
48
Call for Details
30400-5025G
Slider Block Shim (As Required)
View
49
BH-7239-1025
TP10-6003
Slider Block
View
50
Call for Details
40286
1/2" - 13*1-1/4" HHCS (G.5)
View
51
Call for Details
TPB10-2002
Column Reinforce
View
52
Call for Details
DP9-1030
Hose Rubber Guide
View
53
Call for Details
TP10-1000
R.H. Column Weldment
View
54
Call for Details
40275
M5x10 PHMS Plated
View
55
BH-7527-02
FA7366
3 Phase Switch Box
View
56
Call for Details
9992101 (2WB-26)
Power Unit Hose
View
57
Call for Details
992410 (SW-002)
9/16 O-Ring to 3/8 JIC Elbow
View
58
Call for Details
P3397
1 Phase Power Unit
View
58
Call for Details
P3414
3 Phase Power Unit
View
59
Call for Details
40670
5/16" -18NC Hex Nut
View
60
Call for Details
40854
5/16" External Tooth Lockwasher
View
61
Call for Details
40271
5/16" -18NC*1-1/2 HHCS
View
62
BH-7239-839
1070922
1.75" Ext. Adapter
View
63
Call for Details
1070923
3.5" Ext. Adapter
View
64
Call for Details
1070924
5" Ext. Adapter
View
65
Call for Details
FJ6145Y
Adapter Bracket
View
66
BH-7239-359
994202
Air Line Kit STD.
View
66
BH-7239-333
994214
Air Line Kit EXT.
View
67
BH-7236-02
992317
STD. Rise Cylinder
View
67
Call for Details
YG32-9100G3
EXT. Rise Cylinder
View
68
Call for Details
992502 (SW-001)
3/8 JIC Tee
View
69
BH-7239-96
991082
Wire Tie
View
70
Call for Details
2WB-24G
Mainside Hose STD.
View
70
Call for Details
DP10-9801-1
Mainside Hose EXT.
View
71
Call for Details
992402 (SW-003)
3/8" JIC to 3/8 NPT Elbow
View
72
Call for Details
913602 (40760)
3/4" -16 Hex Nut (G.5)
View
73
Call for Details
913611 (40759)
3/4" -16 Hex Jam Nut (G.5)
View
74
Call for Details
40227
5/16" - 18NC * 3/8" Lg. PHMS
View
