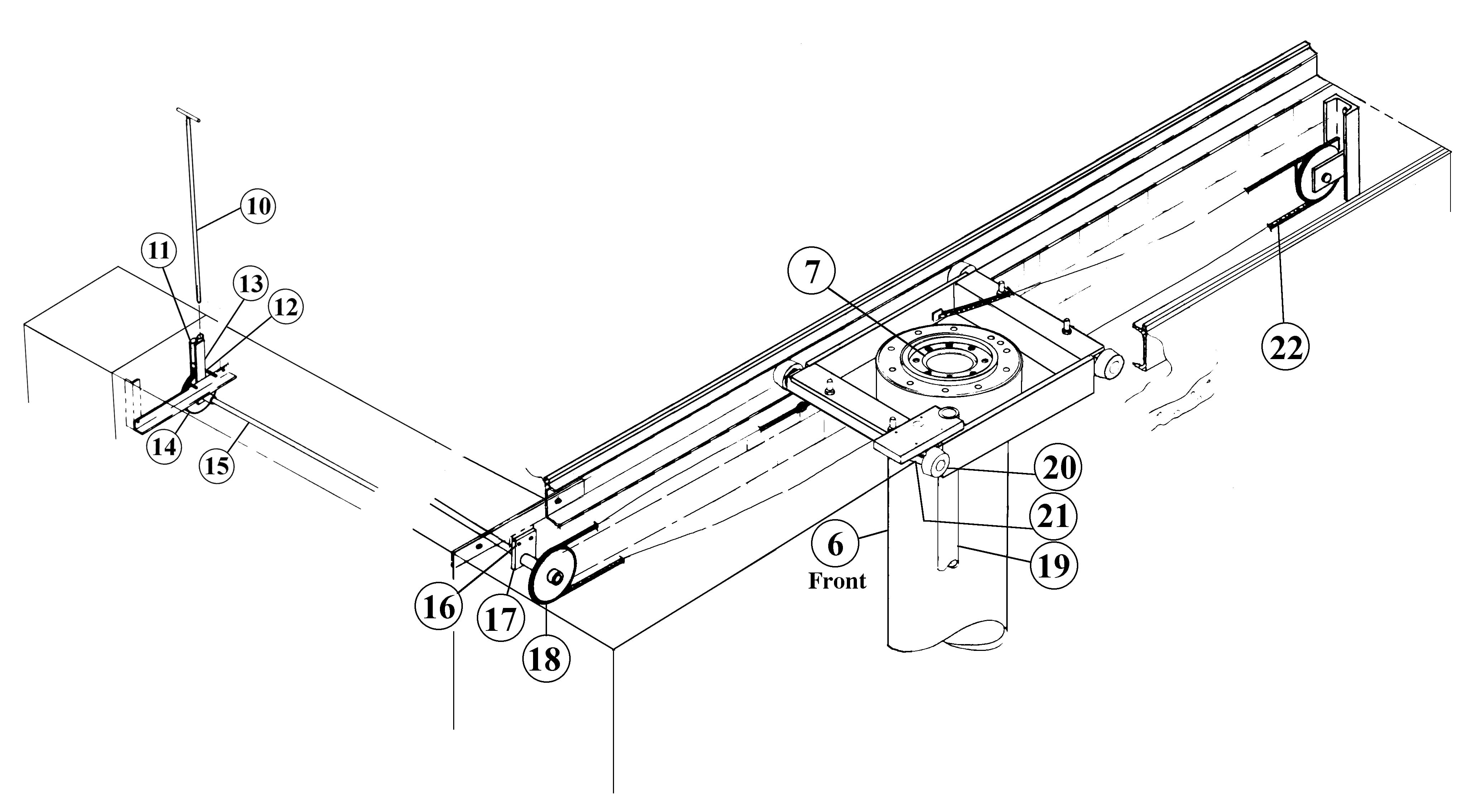

Parts for Ford Smith MP-210

In Ground Front and Rear / Fore and Aft Lifts – Ford Smith – MP-210

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
BH-1798XU
UW102
2
Lift Packing Kit
View
1*
BH-1798SP
UW102
2
Spring Style Lift Packing Kit
View
2
BH-9420-15
B-35054
2
Wiper Seal Cover (Gland)
View
3
BH-9420-14
B-35056
2
Holder Ring
View
4
BH-9420-16
B-35055
2
Upper Guide Bearing
View
5
F-SC-0625-11-2750
438XG22
12
Capscrew
View
6
BH-9426-01
B-43707
1
Front Casing Assembly
View
6
BH-9426-02
B-35573-6
1
Rear Casing Assembly
View
7
BH-9426-03
B-35570-14
1
Front Piston
View
7
BH-9426-03
B-35570-14
1
Rear Piston SHMP-210, 310
View
7
BH-9426-05
B-35570-22
1
Rear Piston (All others)
View
8
BH-9420-08
B-41569
2
Lower Guide Bearing
9
BH-9420-03
359XM1250
2
Spring Pin
View
10
BH-9425-10
A-43359
1
Ratchet Handle see note
View
11-18
BH-9425
C-43660
1
Ratchet Rebuild Kit see note
View
11
BH-9425-01
1
Ratchet Lever see note
View
12
BH-9425-02
1
Ratchet Dog see note
View
13
BH-9425-03
1
Ratchet Dog Shaft see note
View
14
BH-9425-04
1
Ratchet Wheel see note
View
15
BH-9425-05
1
Ratchet Shaft (48") see note
View
16
BH-9425-06
1
Ratchet Hanger see note
View
17
BH-9425-07
1
Ratchet Hanger see note
View
18
BH-9425-08
B-43622
2
Ratchet Sprocket see note
View
19
BH-GL-60
C-43720
1
Front Safety Leg
View
19
BH-GL-70
C-43720-1
1
Rear Safety Leg
View
20-21
BH-9427
2
Axle Assembly
View
20
BH-9427-01
B-42750
4
Roller Wheel Assembly
View
21
BH-9427-02
A-42749
2
Roller Wheel Axle
View
22
BH-9425-09
A-43591
1
1" Pitch Roller Chain 12' pit
View
23
BH-9427-10
B-43611
1
Detachable Cover (* Optional)
View
24
BH-9427-11
B-43609
1
Sliding Cover (notched)
View
25
BH-9427-12
B-43653
1
Ratchet Pit Cover
View
26
BH-9427-13
B-43609-1
1
Sliding Cover
View
--
Additional:
--
BH-9432-01
Air Cylinder for Latch
View

* Lift Packing kit contains seal, wiper, spring (SP kits only), plus all necessary gaskets. Please see pages 2 - 6 for identification information.
