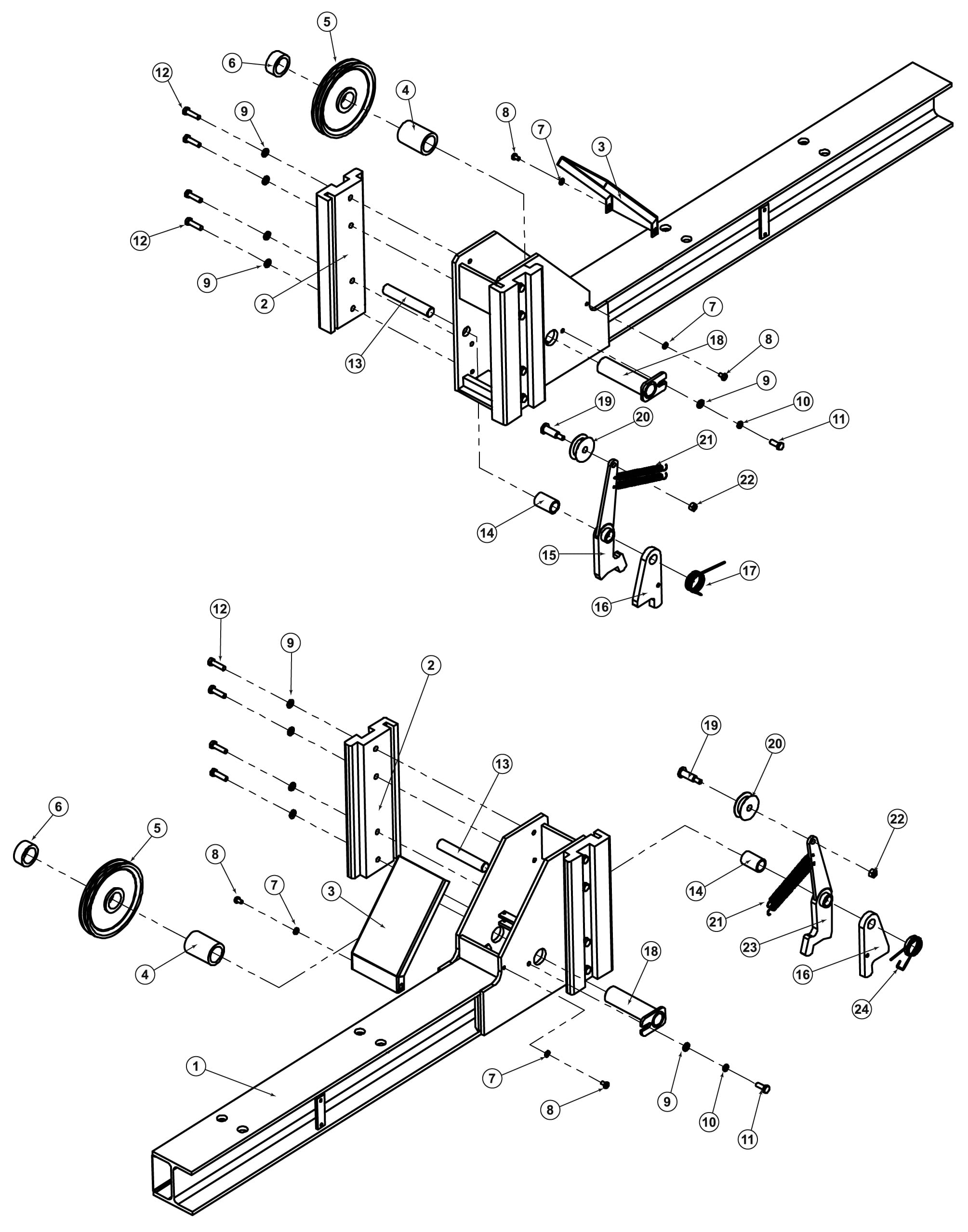

Parts for Direct Lift PP9 Plus Crossbeam

Above Ground / Surface Mount 4-Post Lifts – Direct Lift – PP9 Plus

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7273-077
SH4D-2100
2
Crossbeam Weldment
View
2
BH-7273-117
SH4D-2004
8
Rub Block
View
3
BH-7273-118
SH4D-2001
4
Cross Rail, Safety Latch Cover
View
4
BH-7273-119
NH4D-1013
4
Bushing B
View
5
BH-7273-096
SH4D-2002
10
Cable Sheave
View
6
BH-7273-098
NH4D-1012
6
Bushing A
View
7
Request Details
B41-6
26
Flat Washer Ø6
8
Request Details
B23-6x10
22
Screw M6x10
9
Request Details
B41-8
52
Flat Washer Ø8
10
Request Details
B40-8
16
Lock Washer Ø8
11
Request Details
B10-8x20
4
Bolt M8x20
12
Request Details
B10-8x30
32
Bolt M8x30
13
BH-7273-120
NH4D-1009
4
Latch Shaft
View
14
BH-7273-121
NH4D-1014
4
Bushing
View
15
BH-7273-122
NH4D-1002
2
Safety Latch A
View
16
BH-7273-111
NH4D-1003
4
Latch
View
17
BH-7273-034
NH4D-1004
2
Latch Spring A
View
18
BH-7273-123
SH4D-2003
4
Cable Sheave Shaft
View
19
BH-7273-124
NH4D-1006
4
Cable Sheave B Shaft
View
20
BH-7273-116
NH4D-1005
4
Plastic Pulley
View
21
BH-7273-037
NH4D-1011
8
Safety Latch Spring
View
22
Request Details
B30-8
8
Nut M8
23
BH-7273-125
NH4D-1002DC
2
Safety Latch B
View
24
BH-7273-040
NH4D-1004DC
2
Latch Spring B
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
