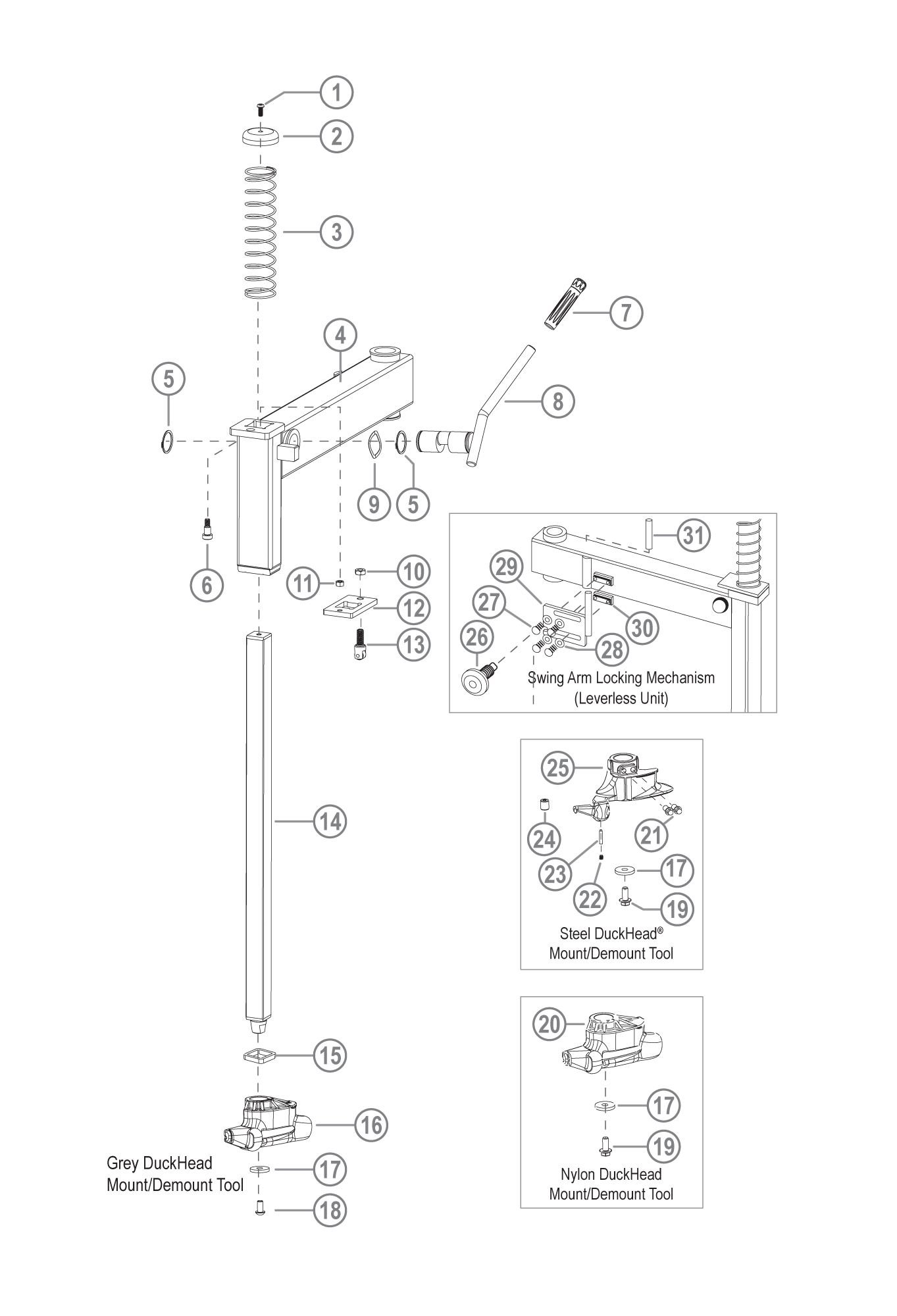

Parts for Coats® Model 80/90C Center Clamp® Tire Changer (Swing Arm Assembly)
Add toQuote
Add toOrder
Item
SVI Part #
OEM #
Description
QTY
4
BW-2900-17
8561085201
Swing Arm Assembly
1
6
BW-2563-44
85606344
1/2 x 5/8 Shoulder Screw
1
8
BW-2900-18
85610989
Lock Handle, Right Hand
1
11
BW-2900-19
85610655
Lock Nut, 3/8-16
1
12
BW-2563-43
85606343
Lock Plate
1
13
BW-2900-20
85611540
Cam Roller Assembly
1
14
BW-2900-21
85611893
Vertical Slide Shaft
1
25
BW-2900-22
81827881
Duckhead Mount/Demount Tool Kit (Metal)
1
26
BW-2578-20
85607820
Adjusting Lock Knob
1
27
BW-2503-17
85000317
Zinc HSWHCS Screw, 5/16-18 x 1-1/2
1
29
BW-2578-14
85607814
Lock Assembly
1
30
BW-2578-16
85607816
Lock Block
1
31
BW-2900-23
70002301
1/2 x 3 Handle Grip
1
